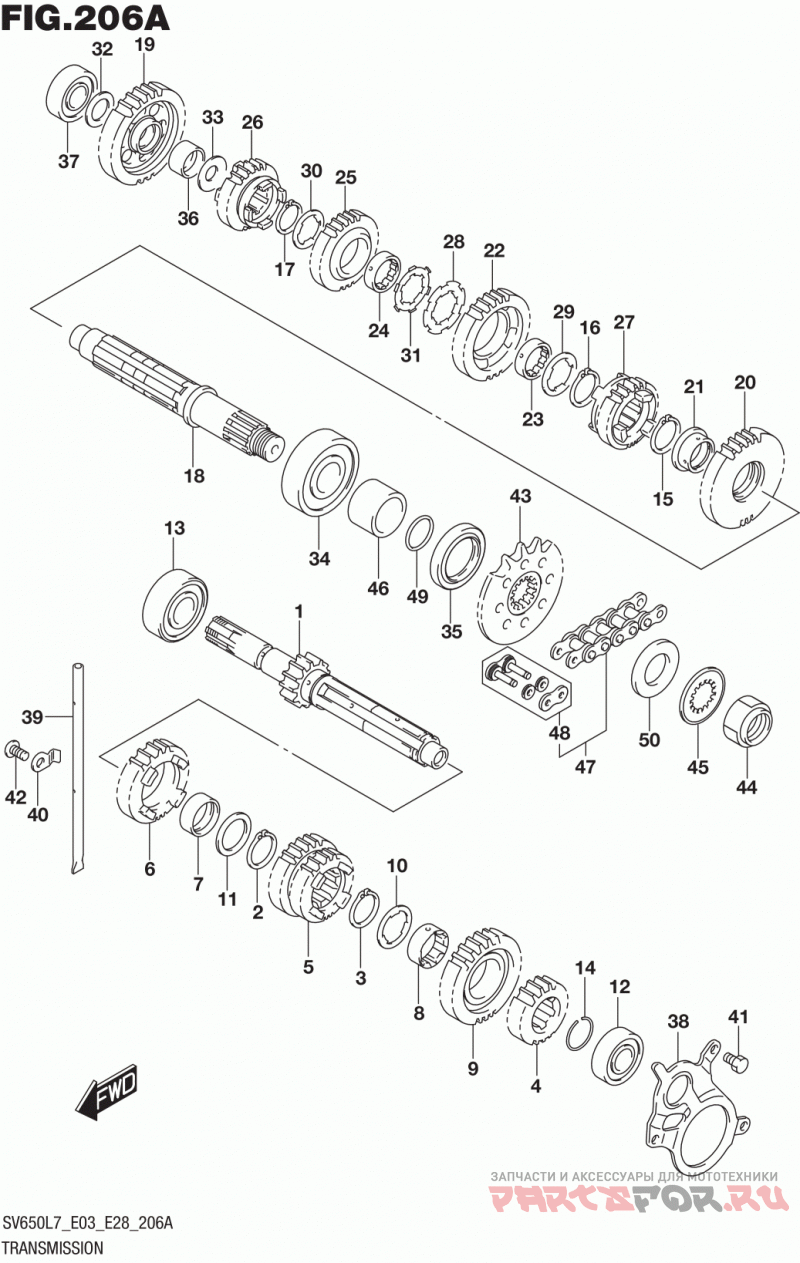

Трансмиссия

Suzuki (Америка) SV650,A

Suzuki (Америка)
#oem кодцена
10
09167-25021
Гровер
11
09181-25167
SHIM (25X34X1)
12
09262-17046
BEARING (17X40X12) (LH)
13
09262-20145
BEARING (20X52X15) (RH)
14
09380-25012
Пружинное стопорное кольцо
15
24127-19F00
CIRCLIP, 2ND DRIVEN GEAR
16
24127-19F00
CIRCLIP, 3RD DRIVEN GEAR
17
24127-19F00
CIRCLIP, 4TH DRIVEN GEAR
18
24130-44H10
Вал ведущий
19
24311-44H00
GEAR, 1ST DRIVEN (NT:32)
20
24321-44H10
GEAR, 2ND DRIVEN (NT:32)
21
24322-19F10
BUSH, 2ND DRIVEN GEAR
22
24331-44H00
GEAR, 3RD DRIVEN (NT:29)
23
24332-24510
BUSH, 3RD DRIVEN GEAR
24
24332-24510
BUSH, 4TH DRIVEN GEAR
25
24341-44H00
GEAR, 4TH DRIVEN (NT:27)
26
24351-44H00
GEAR, 5TH DRIVEN (NT:25)
27
24361-44H00
GEAR, 6TH DRIVEN (NT:23)
28
09167-25013
Гровер
29
09167-25021
Гровер
30
09167-25021
Гровер
31
09169-25001
Шайба
32
09181-17195
SHIM (17X28X1)
33
09181-20195
SHIM (20X30X1)
34
09262-25125
BEARING (25X62X17) (LH)
35
09283-36011
OIL SEAL (36X50X6)
36
09300-20032
BUSH (20X24X13)
37
09262-17023
BEARING (17X40X12) (RH)
38
24751-19F10
RETAINER, DRIVE SHAFT OIL SEA
39
24881-12C30
GUIDE, T/M OIL
40
24885-12C10
RETAINER, T/M OIL
41
01500-0612A
Болт
42
02112-0612A
Винт
44
09159-20004
Гайка
45
09167-25028
Гровер
46
27531-19F10
SPACER, ENGINE SPROCKET
47
27600-44H10-112
CHAIN ASSY, DRIVE (DID 520V0)
48
27620-44H10
.JOINT SET, CHAIN
49
09280-24010
O RING (D:2.4,ID:23.7)
50
08211-25442
Шайба
1
24120-27G00
SHAFT, COUNTER (NT:13)
2
24127-19F00
CIRCLIP, 5TH DRIVE GEAR
3
24127-19F00
CIRCLIP, 6TH DRIVE GEAR
4
24221-20F10
GEAR, 2ND DRIVE (NT:18)
5
24231-20F10
GEAR, 3RD & 4TH DRIVE (NT:21/24)
6
24251-20F02
GEAR, 5TH DRIVE (NT:26)
7
24252-19F00
BUSH, 5TH DRIVE GEAR
8
24252-38A10
BUSH, 6TH DRIVE GEAR
9
24261-20F00
GEAR, 6TH DRIVE (NT:27)
