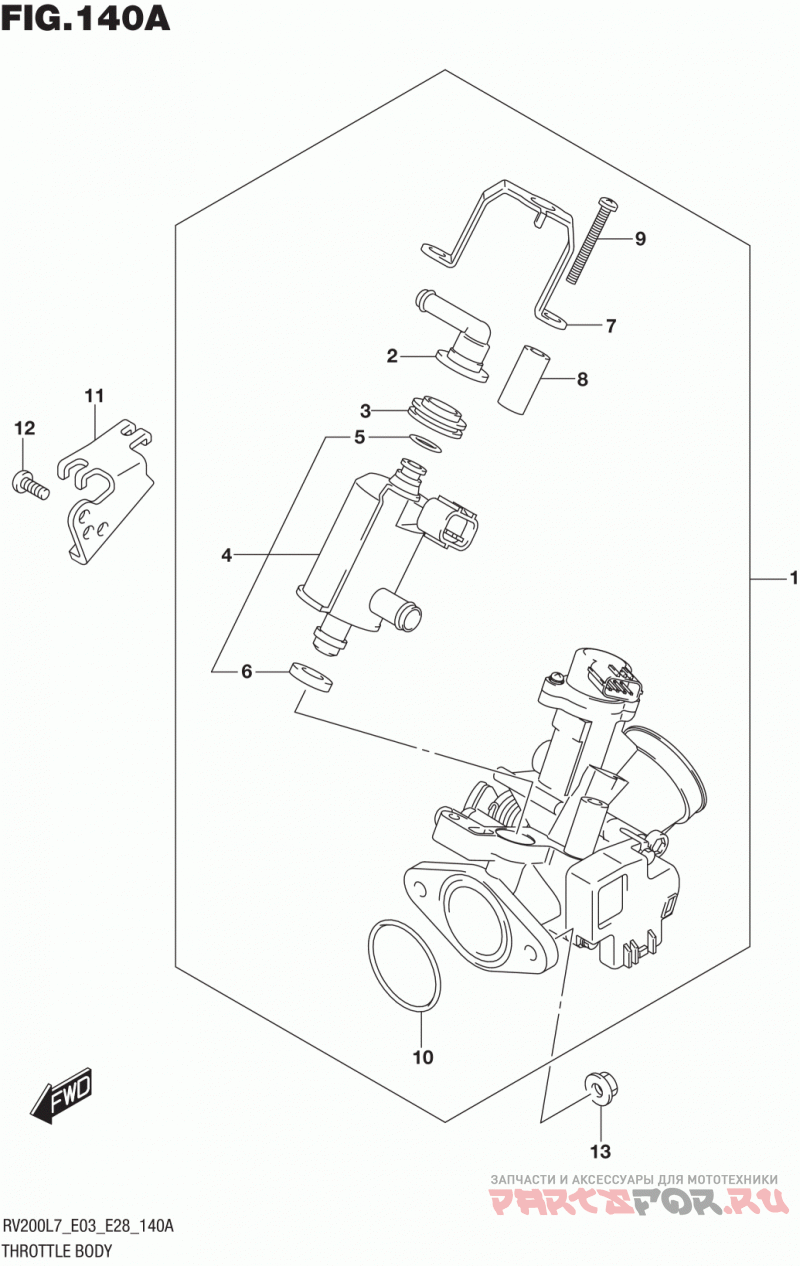

Throttle body (rv200l7 e03)
Suzuki (Америка) RV200
| # | oem код | название | цена |
|---|---|---|---|
10 | 13251-13G00 Кольцо | Кольцо | |
11 | 13565-13GA0 BRACKET, THROTTLE CABLE | BRACKET, THROTTLE CABLE | |
12 | 09106-05030 BOLT (5X10) | BOLT (5X10) | |
13 | 08316-1006A Гайка | Гайка | |
1 | 13400-13GA1 BODY ASSY, THROTTLE | BODY ASSY, THROTTLE | |
2 | 15721-13G00 .NIPPLE | .NIPPLE | |
4 | 15710-13GA1 .INJECTOR ASSY, FUEL | .INJECTOR ASSY, FUEL | |
5 | 13374-32G00 ..O RING | ..O RING | |
6 | 15712-32G00 ..CUSHION, FUEL INJECTOR LWR | ..CUSHION, FUEL INJECTOR LWR | |
7 | 15714-13G00 .BRACKET | .BRACKET | |
8 | 13511-13G00 .PIPE | .PIPE | |
9 | 13602-42E00 Винт | Винт |
