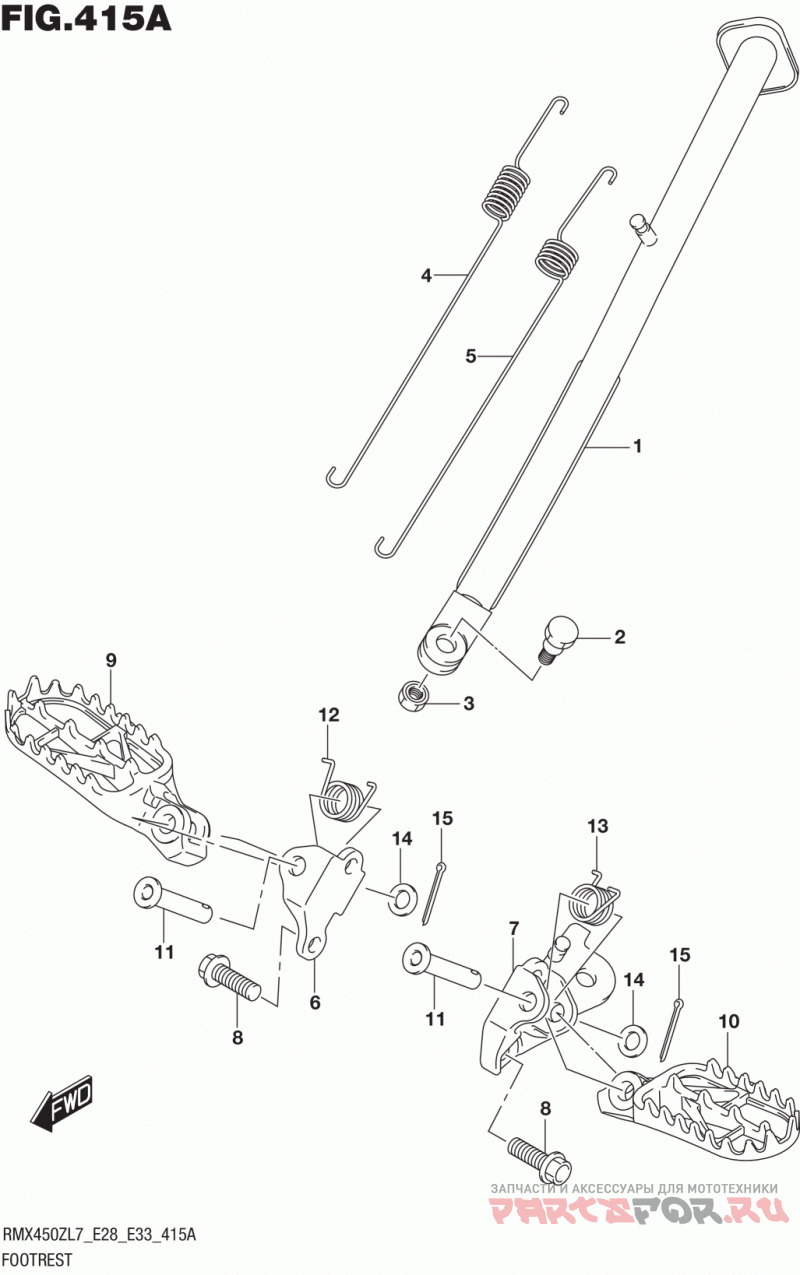

Подножки
Suzuki (Америка) RMX450Z
| # | oem код | название | цена |
|---|---|---|---|
10 | 43561-28H10 FOOTREST, LH | FOOTREST, LH | |
11 | 09200-10019 PIN (10X41.5) | PIN (10X41.5) | |
12 | 09448-21012 SPRING (RH) | SPRING (RH) | |
13 | 09448-21014 SPRING (LH) | SPRING (LH) | |
14 | 09160-10121 WASHER (10.5X18X1) | WASHER (10.5X18X1) | |
15 | 04111-2520A Шплинт | Шплинт | |
1 | 42310-02J00 STAND | STAND | |
2 | 09111-10060 BOLT (10X33) | BOLT (10X33) | |
3 | 42321-03FK0 Гайка | Гайка | |
4 | 42421-02J00 SPRING, INNER | SPRING, INNER | |
5 | 42422-02J00 SPRING, OUTER | SPRING, OUTER | |
6 | 41855-28H10 BRACKET, FOOTREST RH | BRACKET, FOOTREST RH | |
7 | 41865-02J00 BRACKET, FOOTREST LH | BRACKET, FOOTREST LH | |
8 | 09103-10435 Болт (10x25) | Болт (10x25) | |
9 | 43551-28H10 FOOTREST, RH | FOOTREST, RH |
