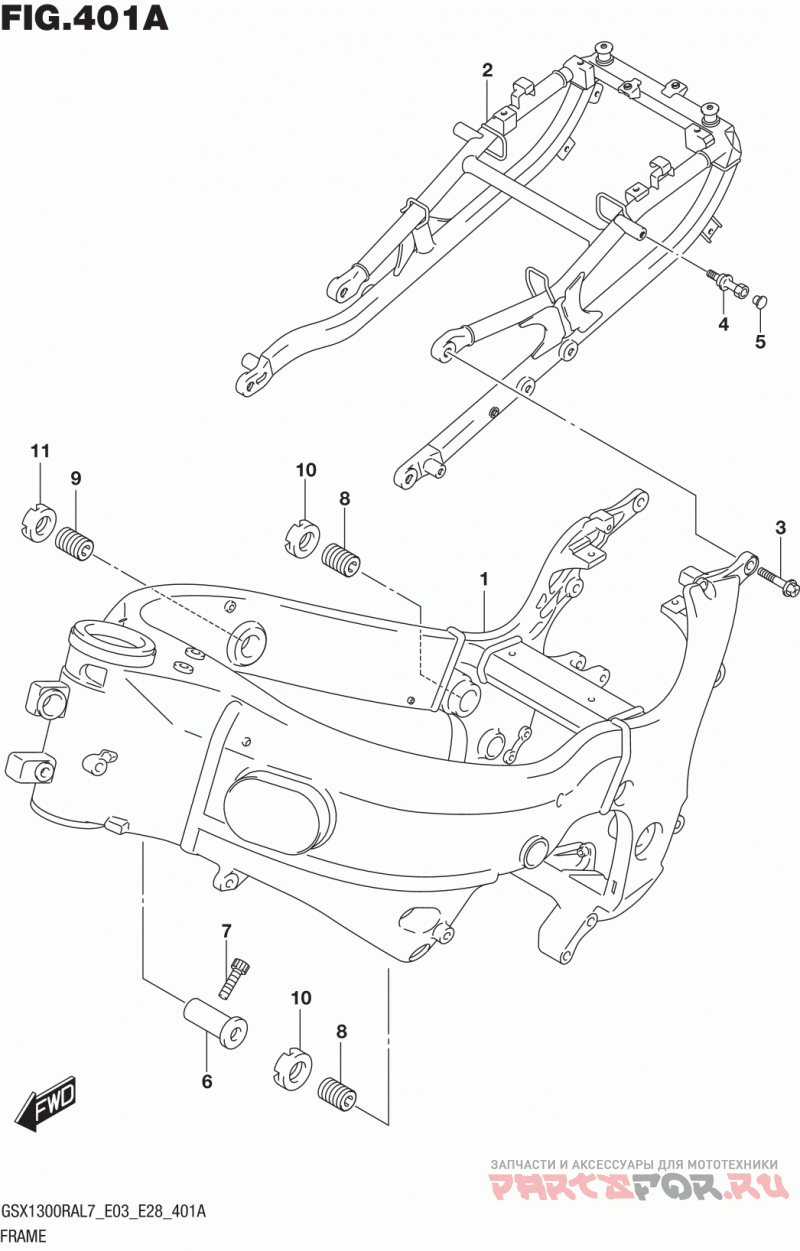

Рама
Suzuki (Америка) GSX1300R,A
| # | oem код | название | цена |
|---|---|---|---|
10 | 41922-19F12 NUT, CRANK CASE ADJUST | NUT, CRANK CASE ADJUST | |
11 | 41922-33E30 NUT, CRANK CASE ADJUST | NUT, CRANK CASE ADJUST | |
1 | 41100-15H13-YAP FRAME (BLACK) | FRAME (BLACK) | |
2 | 41200-15H13 RAIL, SEAT | RAIL, SEAT | |
3 | 09103-10296 Болт (10x30) | Болт (10x30) | |
4 | 46315-24F01 HOOK, SEAT RAIL | HOOK, SEAT RAIL | |
5 | 09250-05009 CAP (OD:10) | CAP (OD:10) | |
6 | 41911-33E10 Втулка | Втулка | |
7 | 09106-08105 Болт (8x30) | Болт (8x30) | |
8 | 41921-15H20 BOLT, CRANKCASE ADJUST | BOLT, CRANKCASE ADJUST | |
9 | 41921-15H30 BOLT, CRANKCASE ADJUST | BOLT, CRANKCASE ADJUST |
