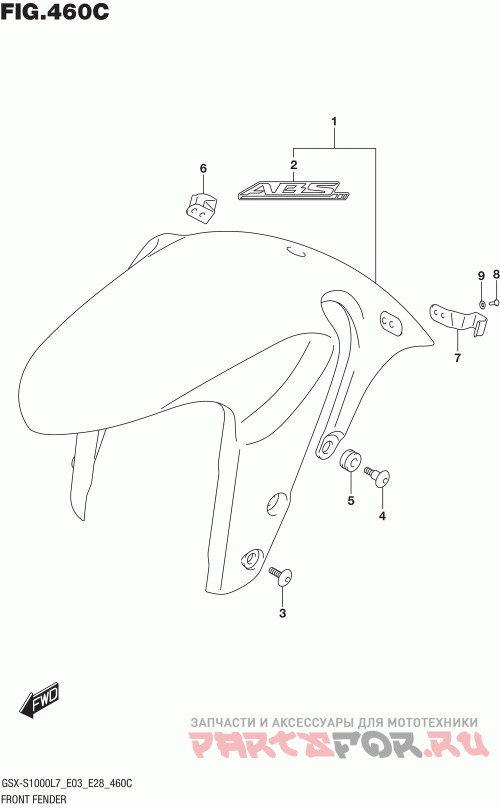

Front fender (gsx-s1000al7 e28)
Suzuki (Америка) GSX S1000, A
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 53100-04K00-YSF FENDER ASSY,FRO | FENDER ASSY,FRO | |
1-2 | 53100-04K00-YVB FENDER ASSY,FRO | FENDER ASSY,FRO | |
1-3 | 53100-04K10-PGZ FENDER ASSY,FRO | FENDER ASSY,FRO | |
2-1 | 68151-38G00-1ZY EMBLEM,ABS(GRAY | EMBLEM,ABS(GRAY | |
2-2 | 68151-38G10-A79 EMBLEM, | EMBLEM, | |
3 | 09139-06169 SCREW,6X16 | SCREW,6X16 | |
4 | 09139-06190 BOLT,6X20 | BOLT,6X20 | |
5 | 09320-09016 Подушка | Подушка | |
6 | 53117-04K00 CLAMP,BRAKE HOS | CLAMP,BRAKE HOS | |
7 | 53118-04K00 CLAMP,BRAKE HOS | CLAMP,BRAKE HOS | |
8 | 09229-04038 заклёпка | заклёпка | |
9 | 08322-0104B Шайба | Шайба |
