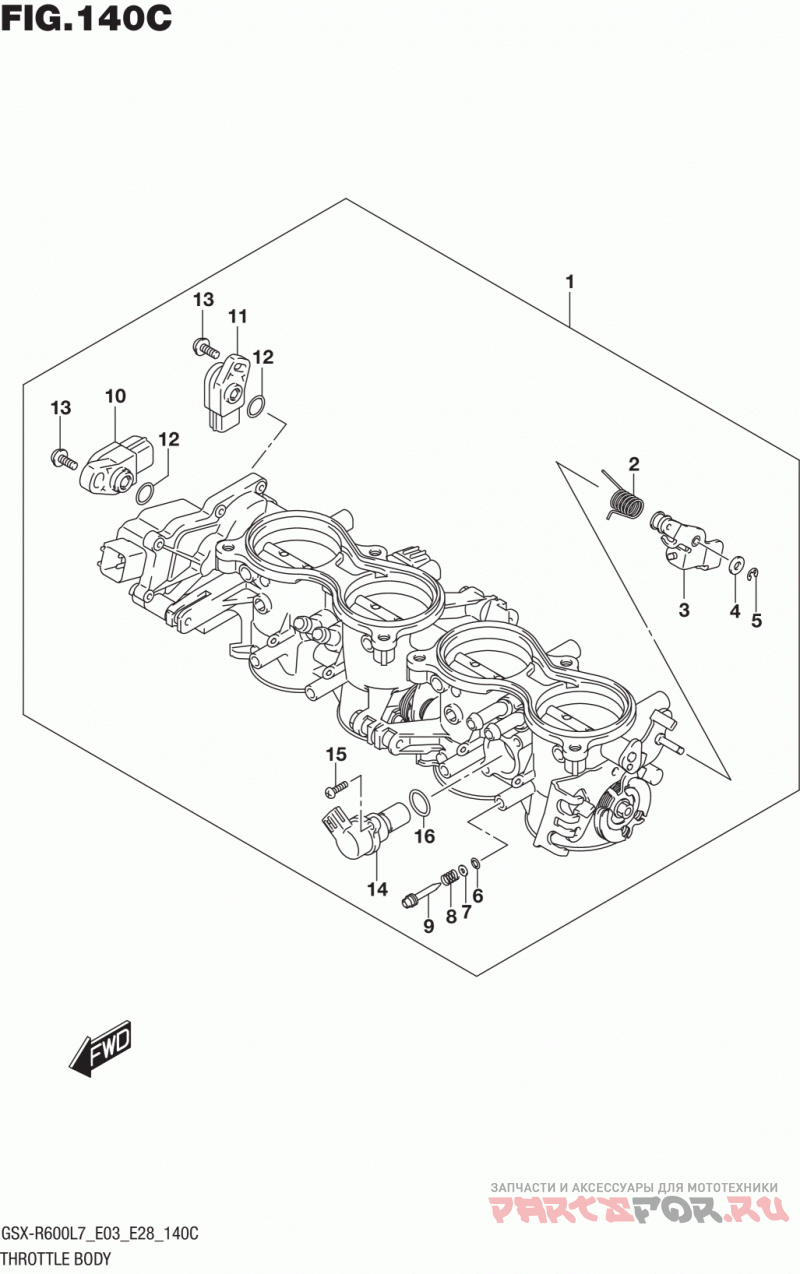

Throttle body (gsx-r600l7 e33)
Suzuki (Америка) GSX,R600
| # | oem код | название | цена |
|---|---|---|---|
10 | 13580-14J00 .SENSOR ASSY | .SENSOR ASSY | |
11 | 13580-14J10 .SENSOR ASSY | .SENSOR ASSY | |
12 | 13575-29G00 Кольцо | Кольцо | |
13 | 13605-02F00 Винт | Винт | |
14 | 18117-14J01 .MOTOR ASSY | .MOTOR ASSY | |
15 | 13605-37H00 Винт | Винт | |
16 | 13679-37H00 Кольцо | Кольцо | |
1 | 13406-14J10 BODY ASSY, THROTTLE | BODY ASSY, THROTTLE | |
2 | 13426-29G00 .SPRING, TORSION | .SPRING, TORSION | |
3 | 13420-37H00 .LEVER ASSY | .LEVER ASSY | |
4 | 13427-29G00 .PACKING | .PACKING | |
5 | 13424-29G00 .E RING | .E RING | |
6 | 13295-29900 Кольцо | Кольцо | |
7 | 13606-47A00 Шайба | Шайба | |
8 | 13268-48700 .SPRING, THROTTLE SCREW | .SPRING, THROTTLE SCREW | |
9 | 13269-33E00 Винт | Винт |
