Secondary drive gear для мотоциклов Suzuki (Америка) VZ800 (2016)

Москва и регионы России

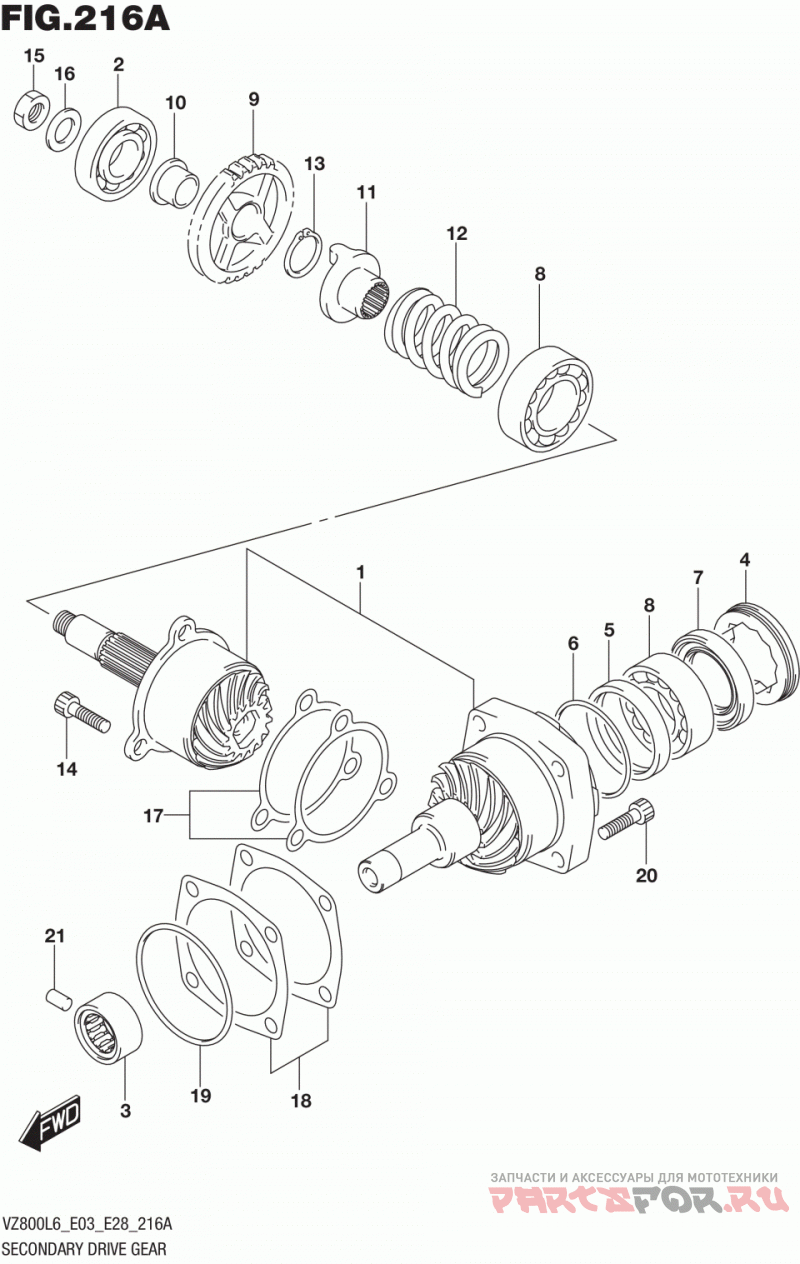

Secondary drive gear

Suzuki (Америка) VZ800

Secondary drive gear

#

oem код

название

цена

10

Втулка

Втулка

11

DOG, OUTPUT CAM

DOG, OUTPUT CAM

12

Пружина

Пружина

13

Пружинное стопорное кольцо

Пружинное стопорное кольцо

14

BOLT (8X25)

BOLT (8X25)

15

Гайка

Гайка

16

WASHER (16X29X4)

WASHER (16X29X4)

17

SHIM SET, SEC DRIVE GEAR

SHIM SET, SEC DRIVE GEAR

18

SHIM SET, SEC DRIVE HOUSING

SHIM SET, SEC DRIVE HOUSING

19

O RING (D:2.1,ID:66.2)

O RING (D:2.1,ID:66.2)

20

BOLT (8X25)

BOLT (8X25)

21

Штифт

Штифт

1

GEAR & HOUSING SET, SECONDARY (NT:15/17)

GEAR & HOUSING SET, SECONDARY (NT:15/17)

2

.BEARING (20X52X15)

.BEARING (20X52X15)

3

.BEARING (20X34X16)

.BEARING (20X34X16)

4

.STOPPER, BEARING

.STOPPER, BEARING

5

.HOUSING, OIL SEAL

.HOUSING, OIL SEAL

6

.O RING (D:1.2,ID:59.6)

.O RING (D:1.2,ID:59.6)

7

.OIL SEAL (38X54X8.5)

.OIL SEAL (38X54X8.5)

8

.BEARING (30X62X23.8)

.BEARING (30X62X23.8)

9

GEAR, REDUCTION DRIVEN (NT:30

GEAR, REDUCTION DRIVEN (NT:30
