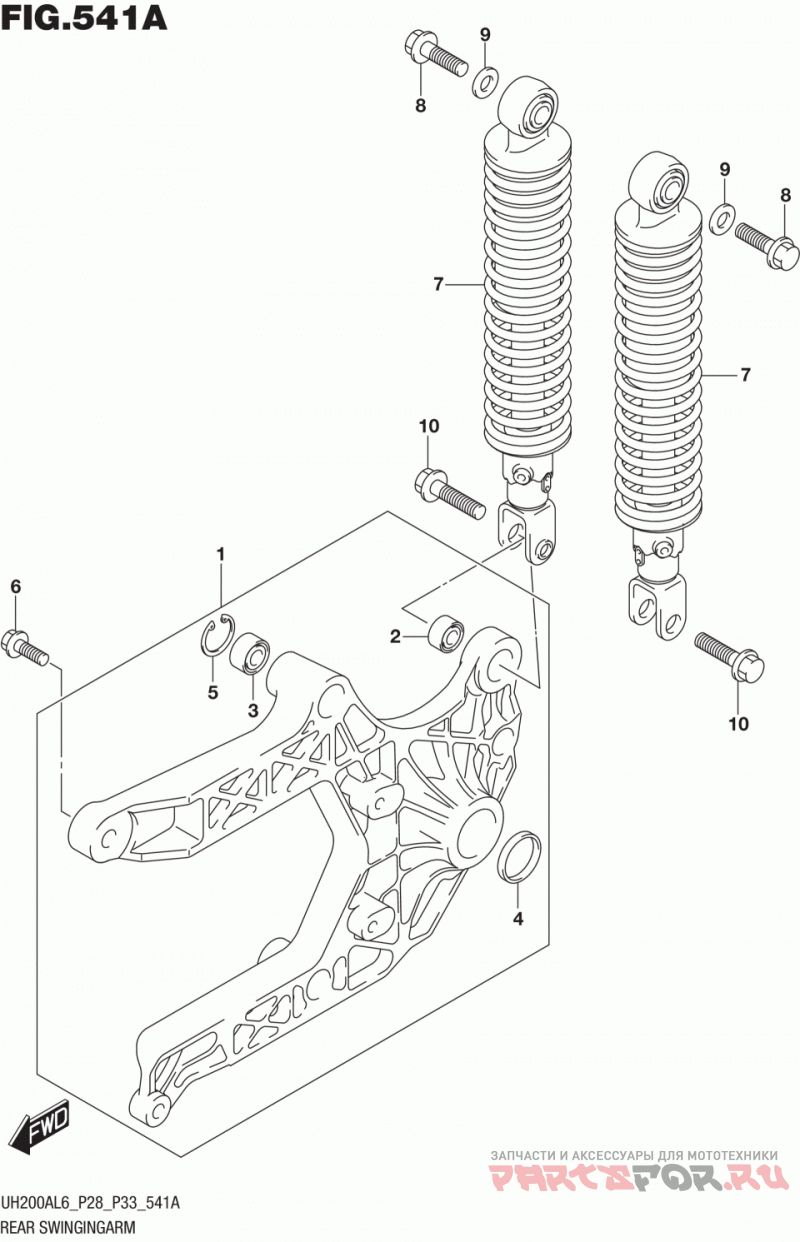

Rear swingingarm
Suzuki (Америка) UH200 A
| # | oem код | название | цена |
|---|---|---|---|
10 | 01550-1030A Болт | Болт | |
1 | 61000-12J20-019 SWINGINGARM ASSY, REAR | SWINGINGARM ASSY, REAR | |
2 | 09319-10032 .BUSH (10.2X22.3X20) | .BUSH (10.2X22.3X20) | |
3 | 08133-62037 .BEARING | .BEARING | |
4 | 09285-28L01 .OIL SEAL (28X35X5) | .OIL SEAL (28X35X5) | |
5 | 08331-41406 .CIRCLIP | .CIRCLIP | |
6 | 01550-1030A Болт | Болт | |
8 | 09103-10055 BOLT (10X40) | BOLT (10X40) | |
9 | 09160-10093 WASHER (10.5X24X2.3) | WASHER (10.5X24X2.3) |
