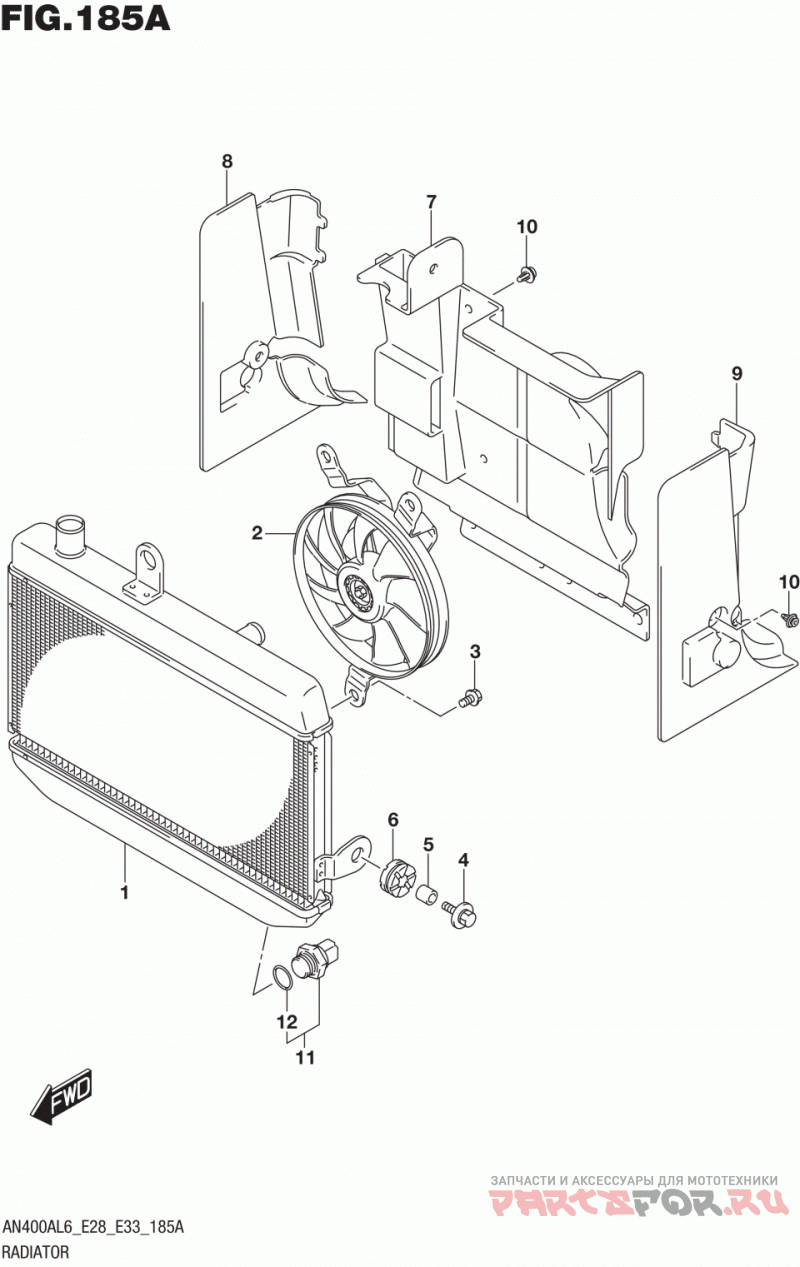

Радиатор
Suzuki (Америка) AN400A,ZA
| # | oem код | название | цена |
|---|---|---|---|
10 | 09409-06313 Зажим | Зажим | |
11 | 17680-50F10 SWITCH, RADIATOR FAN | SWITCH, RADIATOR FAN | |
12 | 17689-50F00 Кольцо | Кольцо | |
1 | 17710-05H00 RADIATOR ASSY, WATER | RADIATOR ASSY, WATER | |
2 | 17800-05H00 FAN ASSY, RADIATOR | FAN ASSY, RADIATOR | |
3 | 17711-40F00 Болт | Болт | |
4 | 09118-06097 Болт (6x25) | Болт (6x25) | |
5 | 09180-06290 SPACER (6.5X10X12) | SPACER (6.5X10X12) | |
6 | 09320-10051 Подушка | Подушка | |
7 | 17771-05H00 SHIELD, HEAT CENTER | SHIELD, HEAT CENTER | |
8 | 17772-05H00 SHIELD, HEAT RH | SHIELD, HEAT RH | |
9 | 17773-05H00 SHIELD, HEAT LH | SHIELD, HEAT LH |
