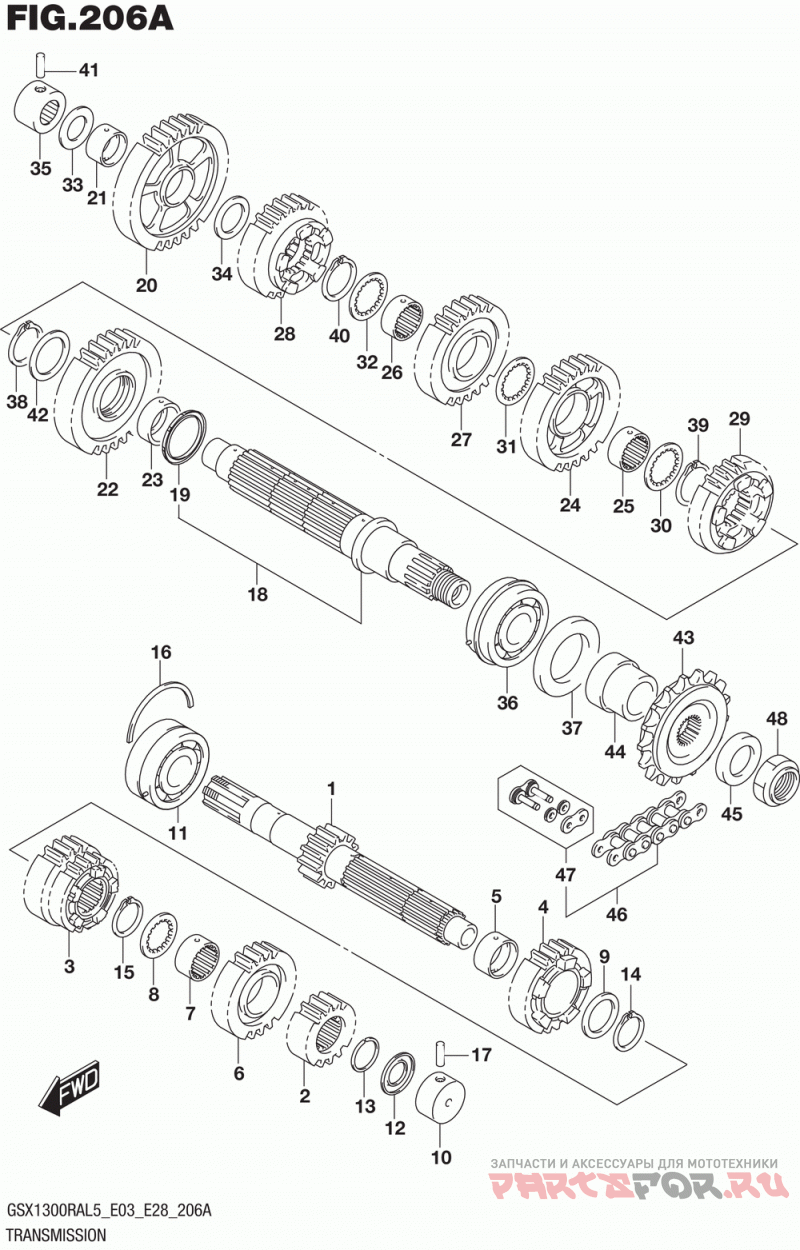

Трансмиссия

Suzuki (Америка) GSX1300R A

Suzuki (Америка)
#oem кодцена
1
24120-24F00
SHAFT,CNTR
2
24221-15H00
GEAR,2ND DRIVE
3
24231-15H00
GEAR,3RD & 4TH
4
24251-15H01
GEAR,5TH DRIVE
5
24252-24F10
BUSH,5TH DRIVE
6
24261-15H00
GEAR,6TH DRIVE
7
24262-24F10
BUSH,6TH DRIVE
8
09167-27003
WASHER,27X36X2.
9
09181-27014
WASHER,27X36X2.
10
09263-20085
RN BNG20X34X17-
11
09267-25012
BEARING,25X62X2
12
09285-20006
Сальник
13
09380-27004
Пружинное стопорное кольцо
14
09380-27006
Пружинное стопорное кольцо
16
09390-62012
C-RING
17
04221-07209
Штифт
18
24130-15H00
SHAFT,DRIVE
19
24136-48G01
RING DRIVE SHFT
20
24311-15H00
GEAR,1ST DRIVEN
21
24312-24F10
BUSH,1ST DRIVEN
22
24321-15H00
GEAR,2ND DRIVEN
23
24322-48G00
BUSH,2ND DRIVEN
24
24331-15H00
GEAR,3RD DRIVEN
25
24332-24F10
BUSH,3RD DRIVEN
27
24341-15H00
GEAR,4TH DRIVEN
28
24351-15H01
GEAR,5TH DRIVEN
29
24361-15H00
GEAR,6TH DRIVEN
30
09167-30008
WASHER,30X38X2
33
09181-20251
Шайба
34
09181-24005
WASHER,24X34X1
35
09263-20040
RC 20X34X20 BRG
36
09267-30011
BEARING,30X62X2
37
09283-42018
SEAL,DRIVE SHAF
38
09380-30009
Пружинное стопорное кольцо
41
04221-07209
Штифт
42
08211-30405
Шайба
43
27510-15H00
SPROCKET,ENGINE
44
27531-15H00
SPACER,ENGINE S
45
27532-15H00
SPACER,ENGINE S
46
27600-24F60-118
CHAIN ASSY,DRIV
47
27620-24F60
JOINT SET,CHAIN
48
09159-22008
Гайка
