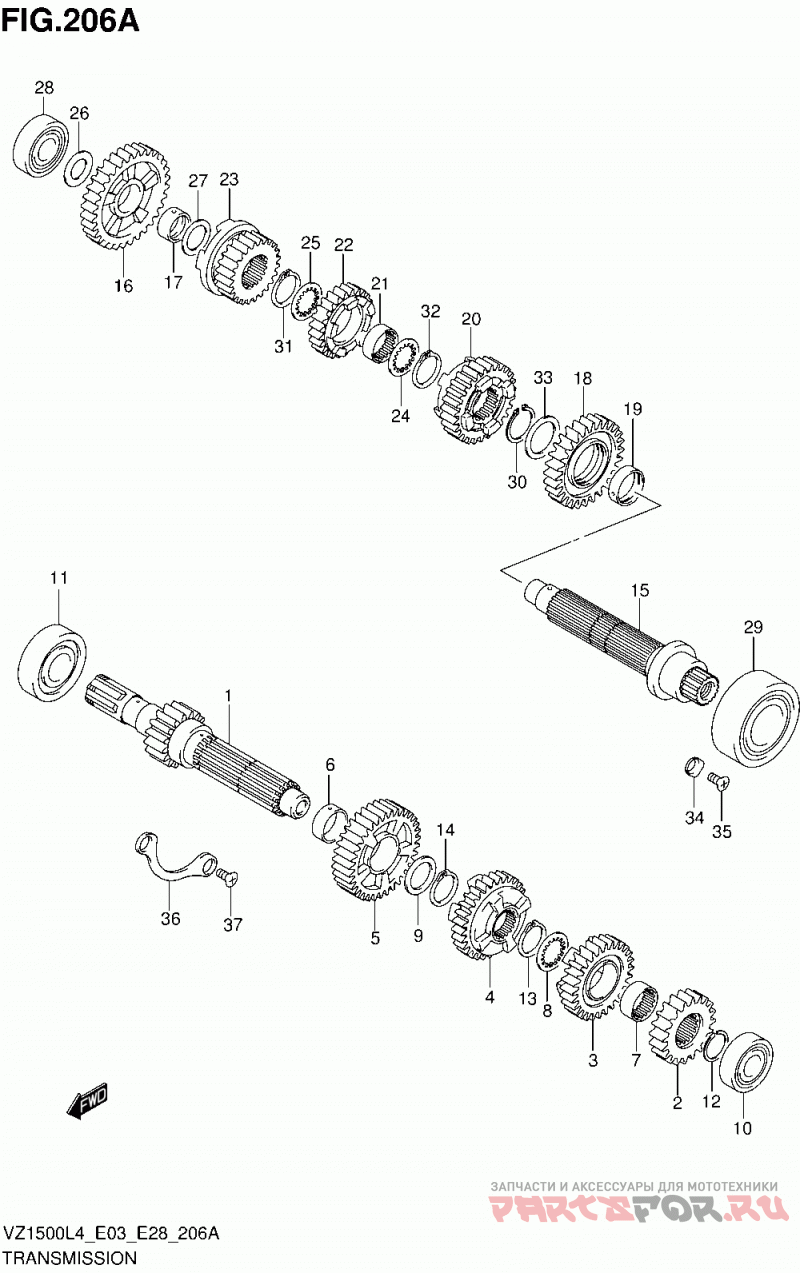

Трансмиссия

Suzuki (Америка) VZ1500

Suzuki (Америка)
#oem кодцена
1
24120-40H00
Shaft, Cntr
2
24221-48G00
Gear, 2nd Drive
3
24231-48G10
Gear, 3rd Drive
4
24241-06J00
Gear, 4th Drive
5
24251-40H00
Gear, 5th Drive
6
24252-24F10
Bush, 5th Drive
7
24262-24F10
Bush, 6th Drive
8
09167-27003
Washer, 27x36x2.
9
09181-27014
Washer, 27x36x2.
10
09262-20080
B1 20x52x15 Bea (lh)
11
09262-25153
Bearing, 25x62x1 (rh)
12
09380-27004
Пружинное стопорное кольцо
13
09380-27006
Пружинное стопорное кольцо
15
24130-40H00
Вал ведущий
16
24311-48G00
Gear, 1st Driven
17
24312-24F10
Bush, 1st Driven
18
24321-48G10
Gear, 2nd Drive
19
24322-48G00
Bush, 2nd Driven
20
24331-06J00
Gear, 3rd Driven
21
24332-24F10
Bush, 3rd Driven
22
24341-40H00
Gear, 4th Driven
23
24351-40H00
Gear, 5th Driven
24
09167-30008
Washer, 30x38x2 (lhrh)
26
09181-22223
Washer (rh)
27
09181-24005
Washer, 24x34x1 (lh)
28
09262-22024
B1 22x56x16 Bea (rh)
29
09267-35004
Bearing, 35x72x2 (lh)
30
09380-30009
Circlip (rhlh)
33
08211-30403
Шайба
34
24741-20A00
Retainer, Counte
35
09126-06011
Screw, 6x12
36
24741-27A00
Retainer, Cntr S
37
09126-06011
Screw, 6x12
