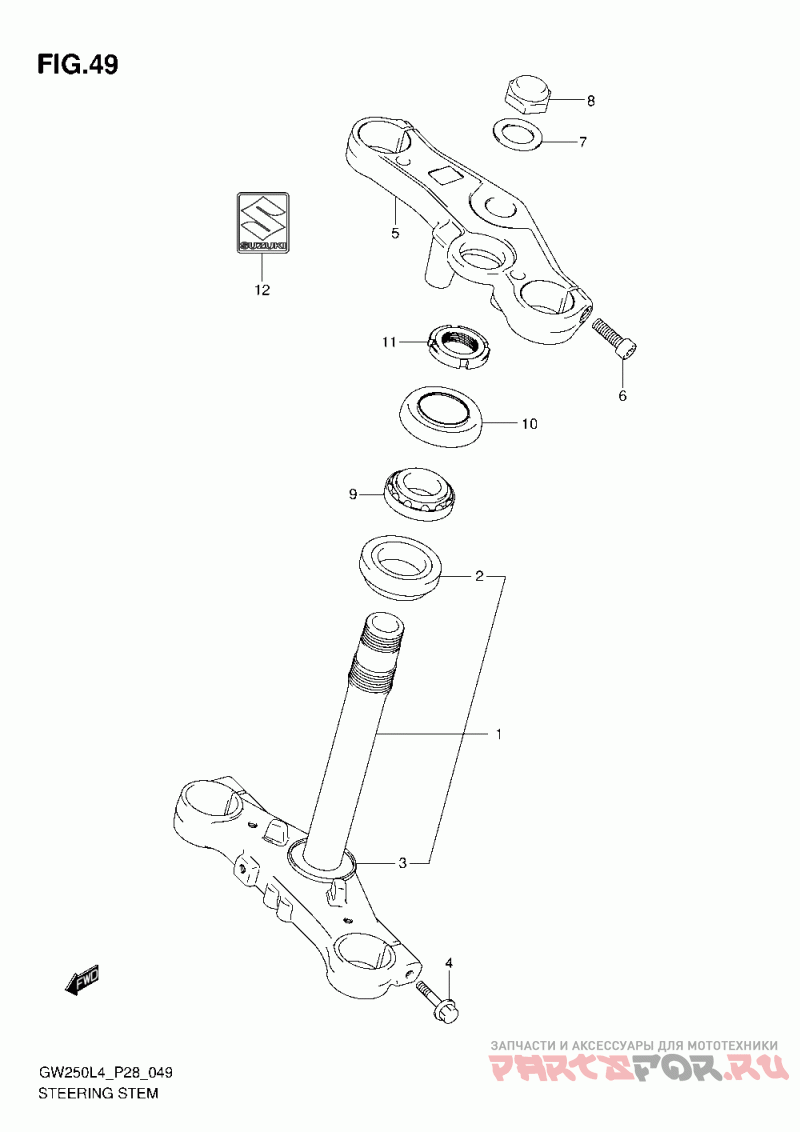

Траверса нижняя
Suzuki (Америка) GW250
| # | oem код | название | цена |
|---|---|---|---|
1 | 51410-48H00 Bracket, Under | Bracket, Under | |
2 | 51610-48H00 Подшипник | Подшипник | |
3 | 51644-48H00 Seal, Steering L | Seal, Steering L | |
4 | 51451-48H00 Bolt, Bracket Un | Bolt, Bracket Un | |
6 | 51166-48H00 Bolt, Bracket Up | Bolt, Bracket Up | |
7 | 51172-48H00 Шайба | Шайба | |
8 | 51353-24B00 Гайка | Гайка | |
9 | 09267-25L01 Bearing(25x47x1 | Bearing(25x47x1 | |
10 | 51643-49002 Seal, Steering U | Seal, Steering U | |
11 | 51631-48H00 Nut, Steering St | Nut, Steering St | |
12 | 68281-35F00 Emblem, "s" | Emblem, "s" |
