Secondary drive gear для мотоциклов Suzuki (Америка) VZR1800,Z Boulevard M109R (2013)

Москва и регионы России

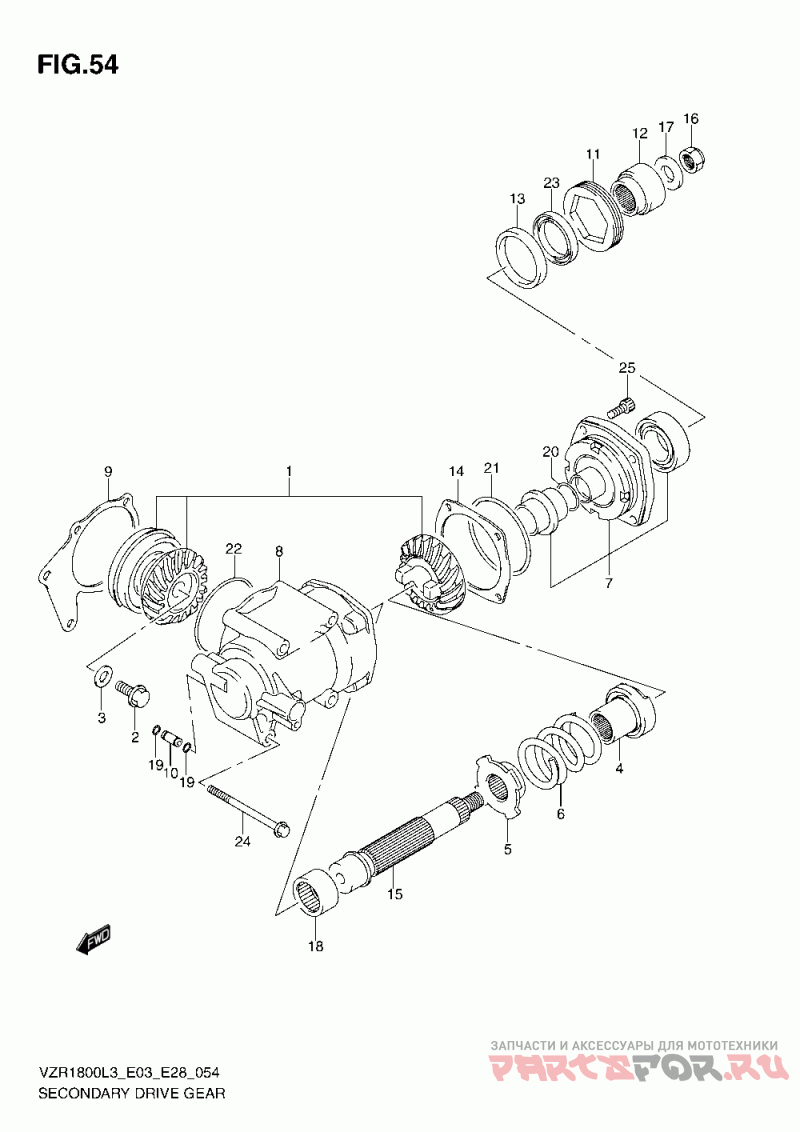

Secondary drive gear

Suzuki (Америка) VZR1800,Z Boulevard M109R

Secondary drive gear

#

oem код

название

цена

1

Gear Set, Second

Gear Set, Second

2

Bolt, 12x24

Bolt, 12x24

3

Washer Rr Cushi

Washer Rr Cushi

4

Dog, Output Cam

Dog, Output Cam

5

Stopper, Cam Spr

Stopper, Cam Spr

6

Spring, Secondar

Spring, Secondar

7

Stopper Seconda

Stopper Seconda

8

Case, Secondary

Case, Secondary

9

Shim Set, Sec Dr (t:0.40/0.45/0.50/0.55/0.60/0.65/0.70/0.75/0.80)

Shim Set, Sec Dr (t:0.40/0.45/0.50/0.55/0.60/0.65/0.70/0.75/0.80)

10

Pipe, Secondary

Pipe, Secondary

11

Stopper, Sec Dri

Stopper, Sec Dri

12

Coupling, Sec, Dr

Coupling, Sec, Dr

13

Housing, Oil Sea

Housing, Oil Sea

14

Shim Set, Second (t:0.30/0.35/0.40/0.50/0.60)

Shim Set, Second (t:0.30/0.35/0.40/0.50/0.60)

15

Вторичный вал

Вторичный вал

16

Гайка

Гайка

17

Шайба

Шайба

18

Rn 32x48x22 Brg

Rn 32x48x22 Brg

19

O-ring, Belt Lub

O-ring, Belt Lub

20

Уплотнительное кольцо

Уплотнительное кольцо

21

O Ring D:3.7 Id

O Ring D:3.7 Id

22

O Ring, D:2.4, Id

O Ring, D:2.4, Id

23

Сальник

Сальник

24

Болт

Болт

25

Bolt, 10x30

Bolt, 10x30
