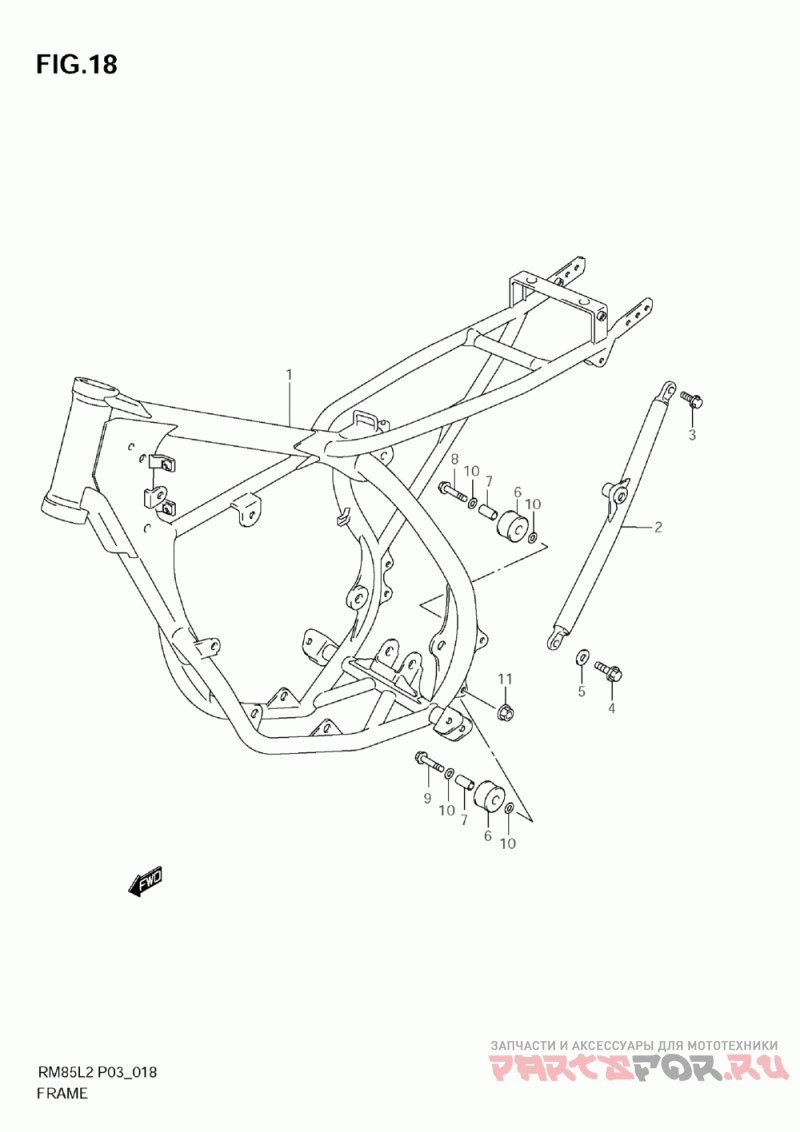

Рама
Suzuki (Америка) RM85,L
| # | oem код | название | цена |
|---|---|---|---|
1 | 41100-03BB1-YU8 Frame(gray) | Frame(gray) | |
2 | 41670-02B30-YU8 Tube, Frame Sid | Tube, Frame Sid | |
3 | 09100-08274 Bolt, 8x22 (upper) | Bolt, 8x22 (upper) | |
4 | 09100-08284 Bolt (lower) | Bolt (lower) | |
5 | 09160-08120 Washer, 8.5x18x2 (lower) | Washer, 8.5x18x2 (lower) | |
6 | 43911-35B00 Roller, Chain Co | Roller, Chain Co | |
7 | 09180-08214 Проставка | Проставка | |
8 | 09103-08178 Bolt 8x38 (upper) | Bolt 8x38 (upper) | |
9 | 09103-08339 Bolt, 8x55 (lower) | Bolt, 8x55 (lower) | |
10 | 09181-08167 Шайба | Шайба | |
11 | 08319-3108A Гайка | Гайка |
