Карбюратор для мотоциклов Suzuki (Америка) RM85,L (2012)

Москва и регионы России

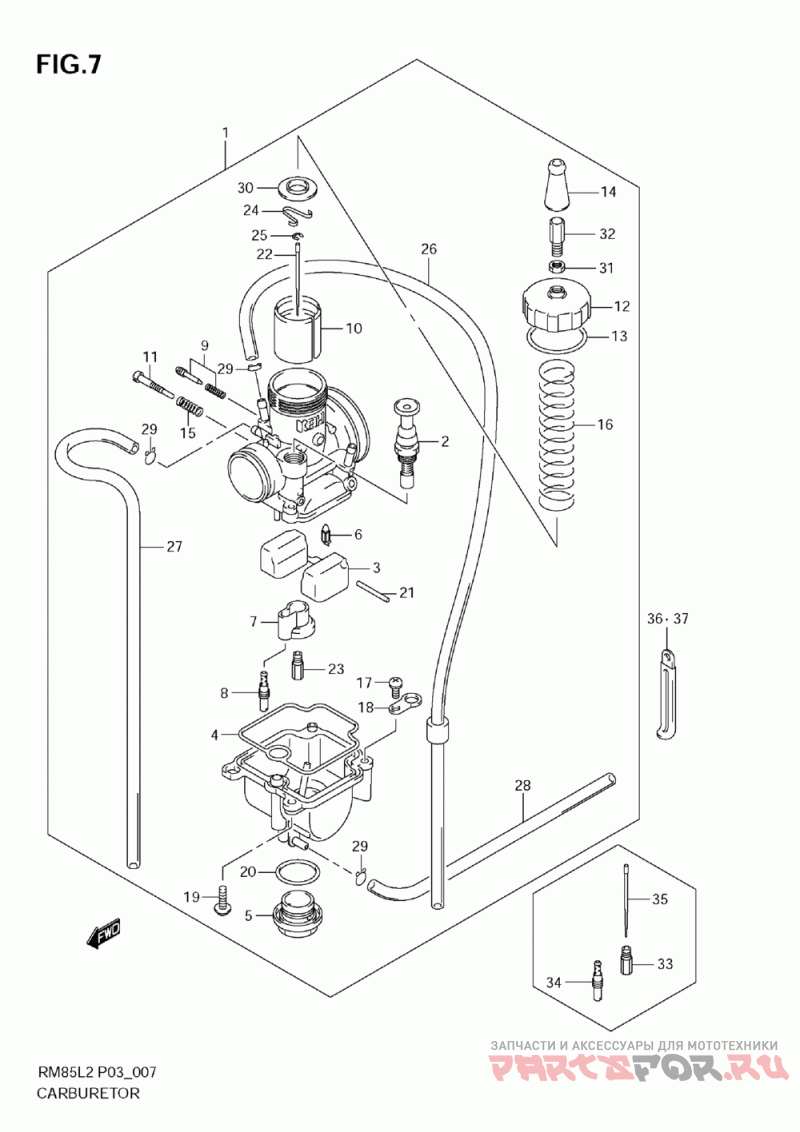

Карбюратор

Suzuki (Америка) RM85,L

Карбюратор

#

oem код

название

цена

1

Карбюратор

Карбюратор

2

Valve Assy, Star

Valve Assy, Star

3

Поплавок

Поплавок

4

Gasket, Float Bo

Gasket, Float Bo

5

Bolt, Drain

Bolt, Drain

6

Valve Assy, Nee

Valve Assy, Nee

7

Holder, Jet

Holder, Jet

8

Jet, Slow(50)

Jet, Slow(50)

9

Adjust Screw

Adjust Screw

10

Throttle Valve

Throttle Valve

11

Stop Screw

Stop Screw

12

Крышка

Крышка

13

Прокладка

Прокладка

14

Крышка

Крышка

15

Пружина

Пружина

16

Пружина

Пружина

17

Винт

Винт

18

Пластина

Пластина

19

Винт

Винт

20

Кольцо

Кольцо

21

Float Pin

Float Pin

22

Needle(24naah)

Needle(24naah)

23

Jet, Main(128)

Jet, Main(128)

24

Зажим

Зажим

25

Clip, Needle

Clip, Needle

26

Pipe Assy

Pipe Assy

27

Hose, 4x7x620 (l:620->380)

Hose, 4x7x620 (l:620->380)

28

Hose, 4x7x620 (l:620->300)

Hose, 4x7x620 (l:620->300)

29

Зажим

Зажим

30

Valve Plate

Valve Plate

31

Гайка

Гайка

32

Adjust Bolt

Adjust Bolt

36

Зажим

Зажим

37

Clamp, L:82

Clamp, L:82

33-1

Jet, Main(115) (opt)

Jet, Main(115) (opt)

33-2

Jet, Main(118) (opt)

Jet, Main(118) (opt)

33-3

Jet, Main(120) (opt)

Jet, Main(120) (opt)

33-4

Jet, Main(122) (opt)

Jet, Main(122) (opt)

33-5

Jet, Main(125) (opt)

Jet, Main(125) (opt)

33-6

Jet, Main(128) (opt)

Jet, Main(128) (opt)

33-7

Jet, Main(130) (opt)

Jet, Main(130) (opt)

33-8

Jet, Main(132) (opt)

Jet, Main(132) (opt)

33-9

Jet, Main(135) (opt)

Jet, Main(135) (opt)

34-1

Jet,slow, 45 (opt)

Jet,slow, 45 (opt)

34-2

Jet, Slow, 48 (opt)

Jet, Slow, 48 (opt)

34-3

Jet, Slow(50) (opt)

Jet, Slow(50) (opt)

34-4

Jet, Slow (opt)

Jet, Slow (opt)

34-5

Jet, Slow(55) (opt)

Jet, Slow(55) (opt)

34-6

Jet, Pilot, 58 (opt)

Jet, Pilot, 58 (opt)

35-1

Needle(24naaf) (opt)

Needle(24naaf) (opt)

35-2

Needle(24naag) (opt)

Needle(24naag) (opt)

35-3

Needle(24naah) (opt)

Needle(24naah) (opt)

35-4

Needle(24naaj) (opt)

Needle(24naaj) (opt)

35-5

Needle(24naak) (opt)

Needle(24naak) (opt)

35-6

Needle(24ncdf) (opt)

Needle(24ncdf) (opt)

35-7

Needle(24ncdg) (opt)

Needle(24ncdg) (opt)

35-8

Needle(24ncdh) (opt)

Needle(24ncdh) (opt)

35-9

Needle(24ncdj) (opt)

Needle(24ncdj) (opt)

33-10

Jet, Main(138) (opt)

Jet, Main(138) (opt)

33-11

Jet, Main(140) (opt)

Jet, Main(140) (opt)

33-12

Jet, Main 142 (opt)

Jet, Main 142 (opt)

33-13

Jet, Main, 145 (opt)

Jet, Main, 145 (opt)

35-10

Needle(24ncdk) (opt)

Needle(24ncdk) (opt)
