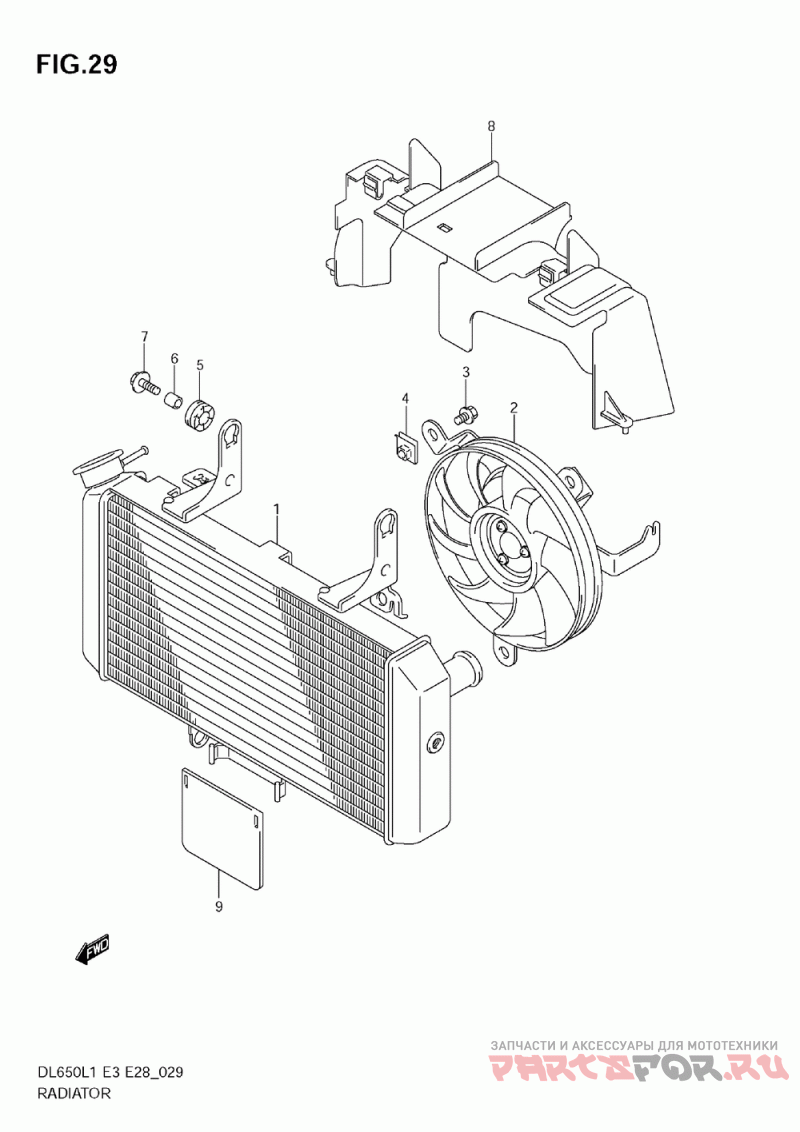

Радиатор
Suzuki (Америка) DL650,A V-Strom
| # | oem код | название | цена |
|---|---|---|---|
1 | 17710-27G00 Radiator Assy, W | Radiator Assy, W | |
2 | 17800-27G00 Fan Assy, Radiat | Fan Assy, Radiat | |
3 | 17711-40F00 Bolt, Fan Assy | Bolt, Fan Assy | |
4 | 17712-40F00 Nut, Fan Assy | Nut, Fan Assy | |
5 | 09320-10051 Cushion, Radiato | Cushion, Radiato | |
6 | 09180-06290 Spacer, 6.5x10x1 | Spacer, 6.5x10x1 | |
7 | 09118-06097 Болт М6х25 | Болт М6х25 | |
8 | 17760-27G00 Shield Comp, Rad | Shield Comp, Rad | |
9 | 17781-17G00 Уплотнение | Уплотнение |
