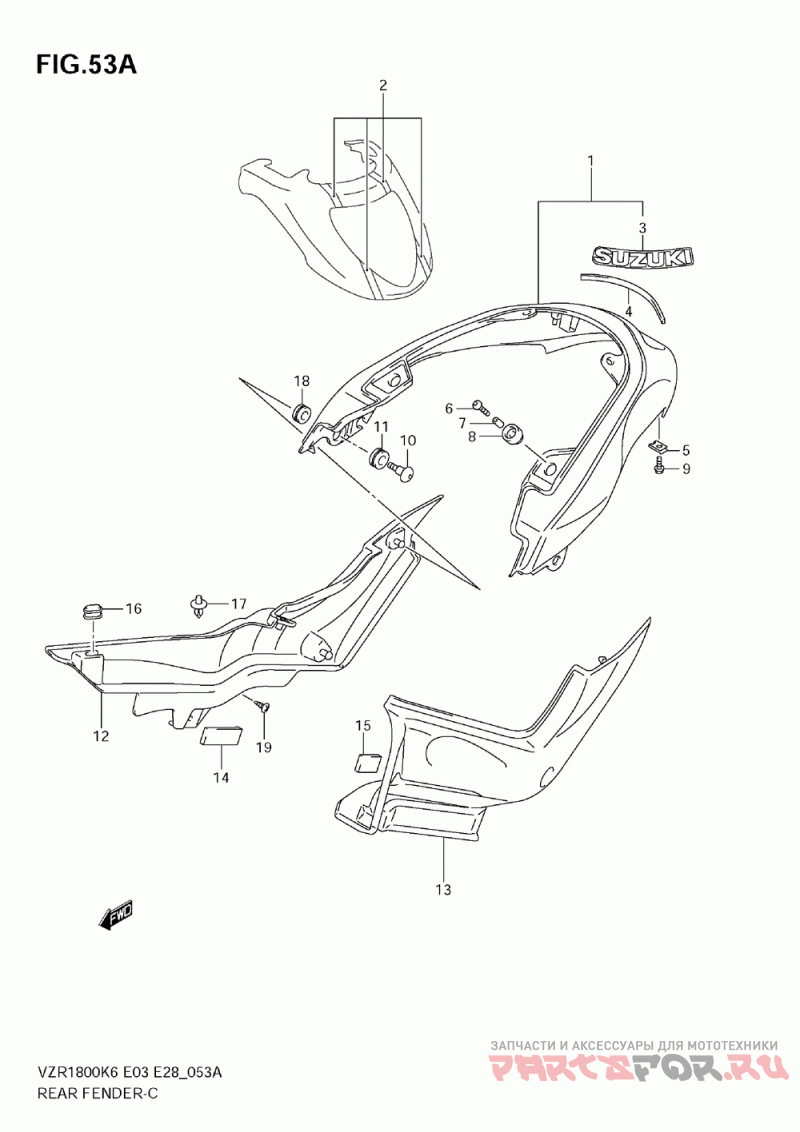

Rear fender (vzr1800zk7/zk8/zk9) для мотоциклов Suzuki (Америка) VZR1800,N,Z Boulevard M109R (2009)

Rear fender (vzr1800zk7/zk8/zk9)

Suzuki (Америка) VZR1800,N,Z Boulevard M109R

oem код

название

цена

1-1

63110-48G50-CWH

Fender, Rear (model K7)

1-2

63110-48G50-FGM

Fender Comp, Rea (model K8)

1-3

63110-48G50-LR5

Fender Comp, Rea (model K9)

2-1

68170-48G50-CWH

Tape Set, Rr Fen (model K7)

2-2

68170-48G50-FGN

Tape Set, Rear F (model K8)

2-3

68170-48G50-LR5

Tape Set, Rear F (model K9)

3-1

68161-44GA0-EGU

Emblem (model K7)

3-2

68161-44GA0-FGP

Emblem, "suzuki" (model K8)

3-3

68161-44GA0-LR5

Emblem, "suzuki" (model K9)

Cushion, Lamp

Гайка

Болт

Проставка

Подушка

Винт

Screw, Brace

Подушка

12-1

63171-48G50-YKY

Cover, Rear Fend (model K7)

12-2

63171-48G50-YMF

Cover, Rear Fend (model K8)

12-3

63171-48G50-YBD

Cover, Rear Fend (model K9)

13-1

63181-48G50-YKY

Cover, Rear Fend (model K7)

13-2

63181-48G50-YMF

Cover, Rear Fend (model K8)

13-3

63181-48G50-YBD

Cover, Rear Fend (model K9)

Cushion, Rh

Cushion, Lh

Cushion, Cover

Клипса (черн.)

.grommet

Screw ( Refer To Fig.53c(i-11) For Vzr1800k9/nk9 )
