Propeller shaft/final drive gear (model k6/k7) для мотоциклов Suzuki (Америка) VZR1800,N,Z Boulevard M109R (2009)

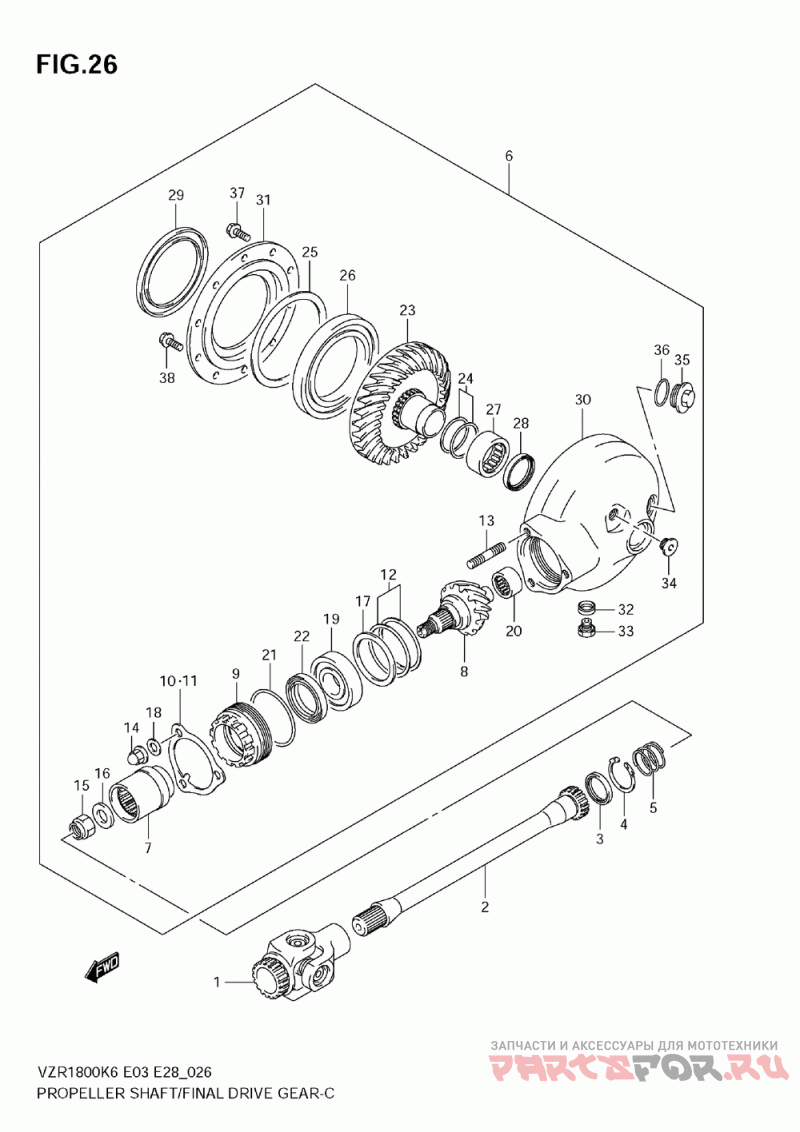

Propeller shaft/final drive gear (model k6/k7)

Suzuki (Америка) VZR1800,N,Z Boulevard M109R

Propeller shaft/final drive gear (model k6/k7)

oem код

название

цена

Yoke, Universal

Вал гребного винта

Seal, Coupling Oil

.circlip

Spring, Propeller Shaft

27300-48811

Gear & Case Set

27172-24A00

.coupling, Final Drive Gear

27311-24A03

.gear, Final Drive Bevel

27312-24A02

.stopper, Final Drive Be

27313-38B00

.plate, Bearing Stopper

27313-38B10

.plate, Bearing Stopper

27445-24810

.shim Set, Final Drive Gear (t:0.30/0.35/0.40 0.50/0.60 )

09108-10106

Шпилька

09159-10026

Гайка

09159-16003

Nut, Sec Driven Bevel Couplin

09160-16029

Washer, Drive Shaft (16x29x4)

09160-54001

.washer, Final Drive Bearing (54x68x1.5)

09164-10008

Шайба

09262-28023

.bearing, Final Drive Gear (28x68x18)

09263-20062

Bearing, Idle Shaft (20x34x18)

09280-64003

O Ring (d:3.1 Id:63.9) (dd:3.1, Id:63.9)

09283-47002

.seal, Final Drive Oil (45.5x58x7)

27320-48G00

.gear, Final Driven

27326-48811

.shim Set, Final Driven, L (t:0.95/1.05/1.10/1.20 1.45/1.50 )

27327-38810

.shim Set, Final Drive, R (t:0.35/0.40/0.50/0.60)

09262-85001

.bearing, Final Driven Gear, (85x130x14)

09263-40016

.bearing, Final Driven Gear,

09283-38026

.seal, Final Driven, L ( )

09289-85001

.seal, Final Driven, R ( Refer To Fig.26a(d-12) For Model K8/k9 )

27450-48G00

.case, Final Gear

27461-38B00

.case, Final Gear Bearing

09168-14004

.gasket (14.1x18x1.5) (13.8x18.8x4.8)

09247-14002

.plug, Oil Drain

09248-16012-A05

.plug, Final Gear Case

09259-30007

.plug, Gear Oil Filler

09280-26006

O Ring (d:3.1, Id:26.4) (dd:3.1, Id:26.4)

01550-0825A

Болт

01550-1025A

Bolt, Drive Gear ( Refer To Fig.26a(d-12) For Model K8/k9 )
