Second air (model k5/k6/k7/k8) для мотоциклов Suzuki (Америка) VZ800,Z Boulevard M50 (2009)

Москва и регионы России

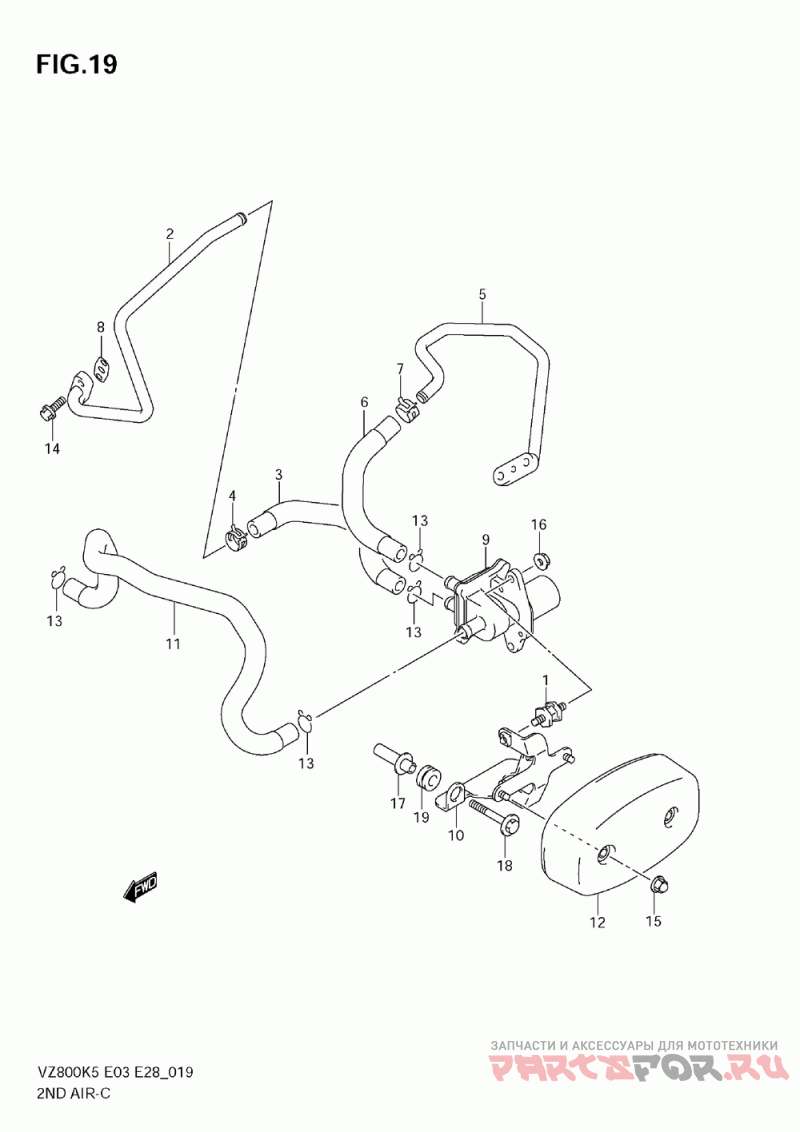

Second air (model k5/k6/k7/k8)

Suzuki (Америка) VZ800,Z Boulevard M50

#

oem код

название

цена

1

17788-13612

Bolt, 2nd Air Valve Cushion

2

18410-41F20

Pipe, 2nd Air Fr

3

18461-41F20

Hose, 2nd Air Valve Fr

4

09401-15407

Clip, 2nd Air Hose

5

18420-41F20

Pipe, 2nd Air Rr

6

18471-41F20

Hose, 2nd Air Valve Rr

8

18441-45C01

Gasket, 2nd Air Pipe

9

18450-10F20

Valve Assy, 2nd Air

10

18610-41F20

Bracket, 2nd Air S

11

18711-41F20

Hose, 2nd Air Clnr

12

18780-41F20

Cover, 2nd Air Val

13

09401-15101-A05

Зажим

14

01547-06167

.bolt, Eng Cov Fastener

15

08313-20067

Nut, Rect Ftg

16

08316-1006B

Гайка

17

18620-41F00

Spacer, 2nd Air Br

18

09116-06183

Bolt, 2nd Air Brkt

19

09320-10015

Cushion ( Refer To Fig.19a(d- 6) For Model K9 )
