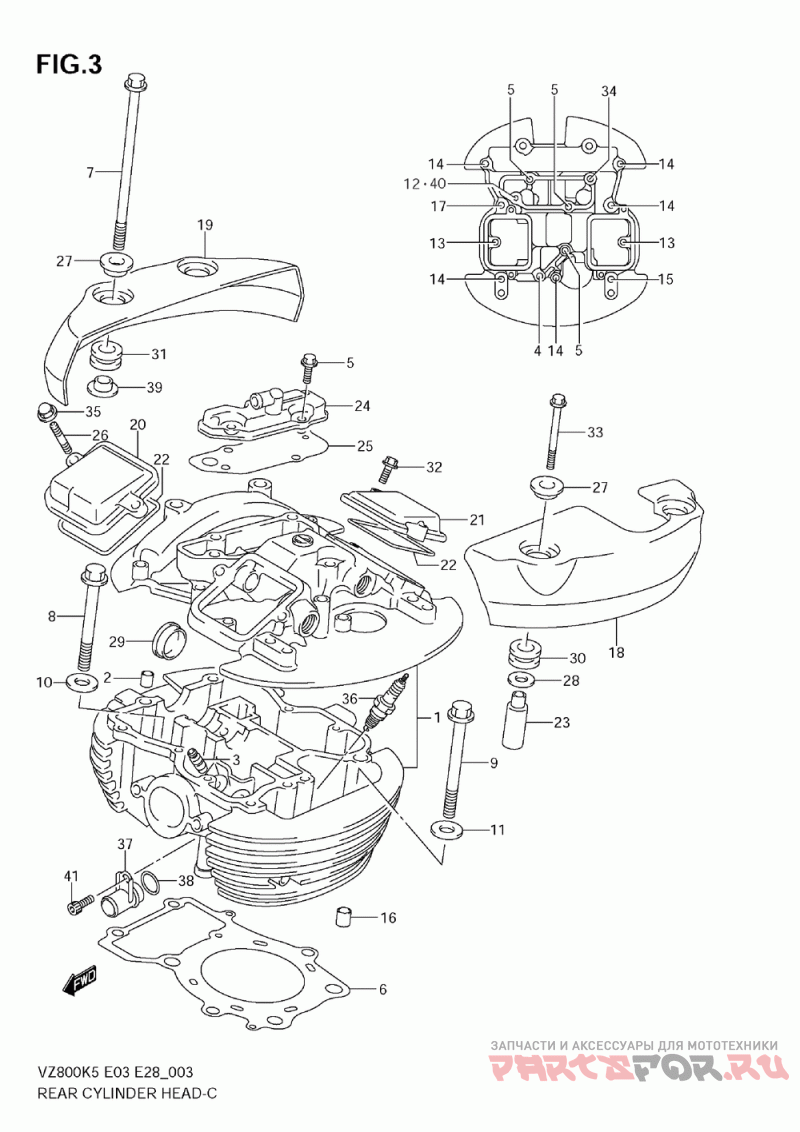

Rear cylinder head (model k5/k6/k7/k8)

Suzuki (Америка) VZ800,Z Boulevard M50

Suzuki (Америка)
#oem кодцена
1
11103-41FB0
Head Assy, Cylinder Rear
2
09206-11004
Штифт
3
11115-38A71
Guide, Valve (os 0.3) (opt)
4
09103-06101
Bolt (6x50)
5
09103-06102
.bolt (6x55)
6
11142-41F00
Gasket, Cylinder Head Rear
7
09103-08370
Bolt, Collector L
8
09103-10133
Bolt (10x155)
9
09103-10134
Bolt (10x165)
10
09160-08130
Washer (8.5x24x1.6)
11
09160-10039
Washer (10.5x22x2.3)
13
01550-0625B
Болт
14
01550-0630B
Болт
16
04211-13189
Штифт
17
07120-0630B
Болт
18
11173-41FA0
Cap, Cylinder Head Cover Rr
19
11174-41F00
Cap, Cylinder Head Cover Rr
20
11175-38A11
Cap, Inspection Intake
21
11176-38A11
Cap, Inspection Exhaust
22
11177-38A00
Gasket, Inspection Cap
23
11179-10F10
Spacer, Head Cover Cap
24
11186-41FB0
Крышка
25
11187-41F20
Gasket, Breather Cover ( Refer To Fig.3a(b- 9) For Model K9 )
26
09108-06102
Bolt, Inspection Cap Stud
27
09160-06084
Шайба (6.5x18x1.6)
28
09160-09016
Washer, Head Cover Cap Lower
29
09241-30004
Plug, Cylinder Head
30
09320-09016
Подушка
31
09320-13015
Cushion, Head Cover Bolt
32
01547-0620B
Bolt, Thermostat Cover
33
01547-06507
Болт
34
01550-0620B
Болт
35
09159-06093
Nut, Inspection Cap
36-1
09482-00354
Spark Plug, Dpr7ea-9 (ngk)
36-2
09482-00330
Spark Plug, Dpr9ea-9 (ngk) (opt)
36-3
09482-00331
Spark Plug, X27epr-u9 (nd) (opt)
36-4
09482-00334
Spark Plug (ngk, Dpr8ea-9) (opt)
36-5
09482-00335
Spark Plug (nd, X24epr-u9) (opt)
37
17891-41F10
Union, Cylinder Head Joint
38
09280-16005
O Ring (d:2.4, Id:15.8)
39
09301-08007
Bush, Head Cover Bolt
40
09168-06023
Шайба
41
07130-0612B
Bolt ( Refer To Fig.3a(b- 9) For Model K9 )
