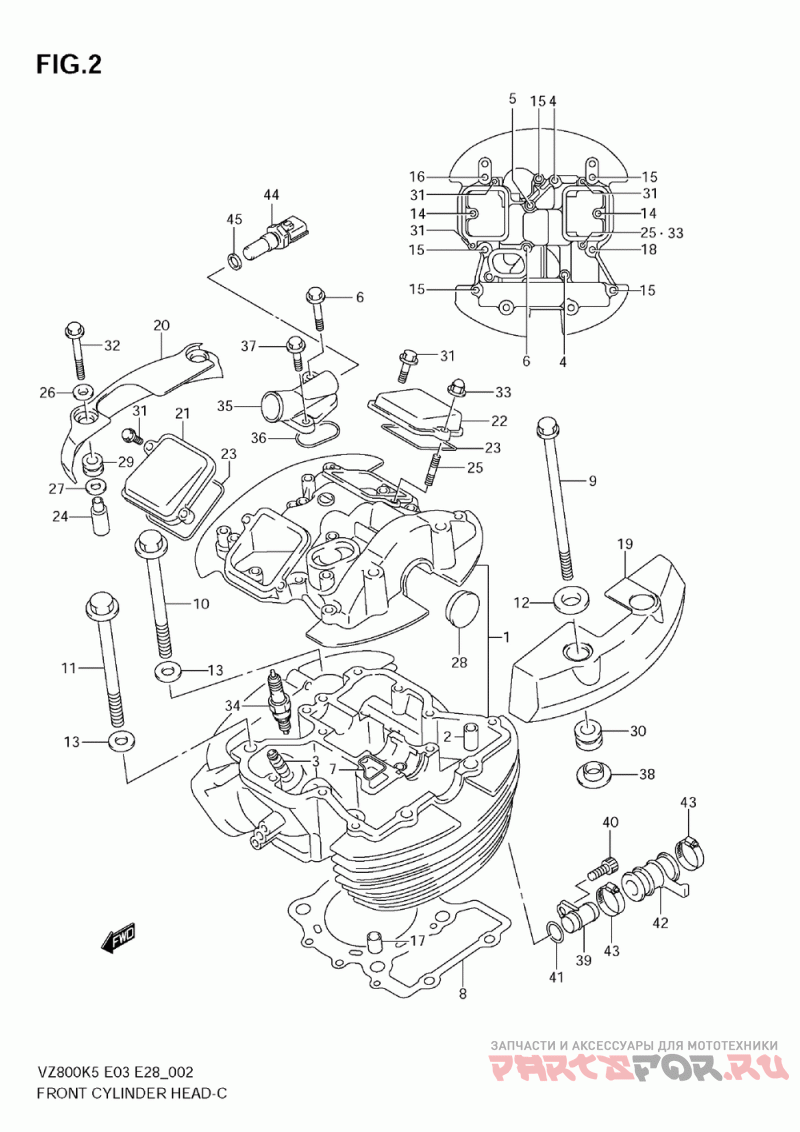

Front cylinder head (model k5/k6/k7/k8)

Suzuki (Америка) VZ800,Z Boulevard M50

Suzuki (Америка)
#oem кодцена
1
11101-41FB0
Head Assy, Cylinder Front
2
09206-11004
Штифт
3
11115-38A71
Guide, Valve (os 0.3) (opt)
4
09103-06101
Bolt (6x50)
5
09103-06102
.bolt (6x55)
6
07130-0680B
Болт
7
11123-38A00
Gasket, Cylinder Head Cover
8
11141-41F00
Gasket, Cylinder Head Front
9
09103-08370
Bolt, Collector L
10
09103-10133
Bolt (10x155)
11
09103-10134
Bolt (10x165)
12
09160-08130
Washer (8.5x24x1.6)
13
09160-10039
Washer (10.5x22x2.3)
14
01550-0625B
Болт
15
01550-0630B
Болт
17
04211-13189
Штифт
18
07120-0630B
Болт
19
11171-41FA0
Cap, Cylinder Head Cover Fl
20
11172-41F00
Cap, Cylinder Head Cover Fr
21
11175-38A11
Cap, Inspection Intake
22
11176-38A11
Cap, Inspection Exhaust
23
11177-38A00
Gasket, Inspection Cap ( Refer To Fig.2a(b- 5) For Model K9 )
24
11179-10F10
Spacer, Head Cover Cap
25
09108-06102
Bolt, Inspection Cap Stud
26
09160-06084
Шайба (6.5x18x1.6)
27
09160-09016
Washer, Head Cover Cap Lower
28
09241-30004
Plug, Cylinder Head
29
09320-09016
Подушка
30
09320-13015
Cushion, Head Cover Bolt
31
01547-0620B
Bolt, Thermostat Cover
32
01547-06507
Болт
33
09159-06093
Nut, Inspection Cap
34-1
09482-00354
Spark Plug, Dpr7ea-9 (ngk)
34-2
09482-00330
Spark Plug, Dpr9ea-9 (ngk) (opt)
34-3
09482-00331
Spark Plug, X27epr-u9 (nd) (opt)
34-4
09482-00334
Spark Plug (ngk, Dpr8ea-9) (opt)
34-5
09482-00335
Spark Plug (nd, X24epr-u9) (opt)
35
11181-41F00
Union, Cylinder Head Outlet
36
11182-38A00
O Ring, Outlet Union
37
07130-0620B
Болт
38
09301-08007
Bush, Head Cover Bolt
39
17891-41F10
Union, Cylinder Head Joint
40
07130-0612B
Болт
41
09280-16005
O Ring (d:2.4, Id:15.8)
42
17854-41F01
Hose, Head Joint
43
09402-28511
Зажим
44
13650-57F00
Sensor, Water Temperature
45
09168-12017
Gasket ( Refer To Fig.2a(b- 5) For Model K9 )
