Air cleaner (model k5/k6/k7/k8) для мотоциклов Suzuki (Америка) VZ800,Z Boulevard M50 (2009)

Москва и регионы России

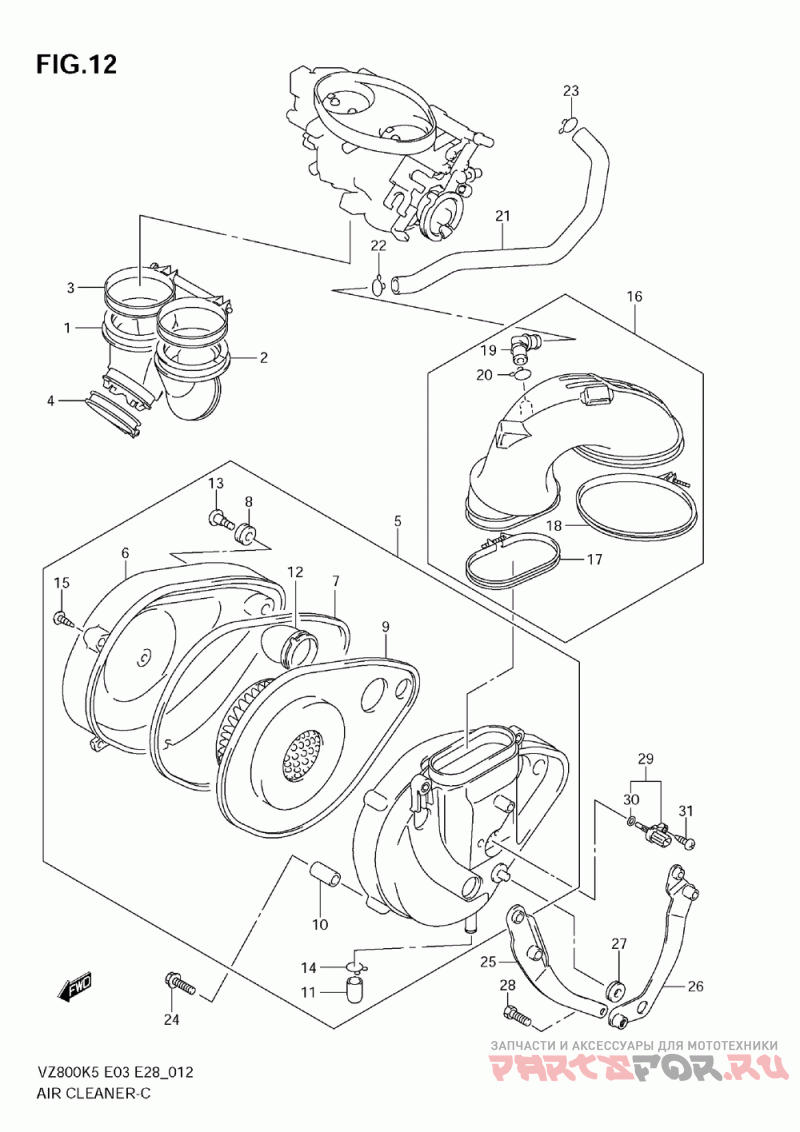

Air cleaner (model k5/k6/k7/k8)

Suzuki (Америка) VZ800,Z Boulevard M50

Air cleaner (model k5/k6/k7/k8)

#

oem код

название

цена

1

Pipe, Intake No.1

Pipe, Intake No.1

2

Pipe, Intake No.2

Pipe, Intake No.2

3

Clamp, Intake Pipe

Clamp, Intake Pipe

4

Clamp, Intake Pipe Head

Clamp, Intake Pipe Head

5

Case Assy, Air Cleaner

Case Assy, Air Cleaner

6

.cap, Air Cleaner

.cap, Air Cleaner

7

Прокладка

Прокладка

8

.cushion

.cushion

9

.filter

.filter

10

.collar

.collar

11

.plug

.plug

12

.tube, Inlet

.tube, Inlet

13

Screw, Brace

Screw, Brace

14

.clip

.clip

15

Винт

Винт

16

Tube Assy, Outlet

Tube Assy, Outlet

17

.clamp

.clamp

18

.clamp

.clamp

19

.joint

.joint

21

Трубка

Трубка

22

09401-15101-A05

Зажим

Зажим

23

Поршень комплект (увел1,0)

Поршень комплект (увел1,0)

24

Винт(6X20)

Винт(6X20)

25

Bracket, Air Clnr

Bracket, Air Clnr

26

Bracket, Air Clnr

Bracket, Air Clnr

27

Cushion, Brace

Cushion, Brace

28

Болт

Болт

29

Sensor Air Temp

Sensor Air Temp

30

Кольцо

Кольцо

31

Screw ( Refer To Fig.12a(c-10) For Model K9 )

Screw ( Refer To Fig.12a(c-10) For Model K9 )
