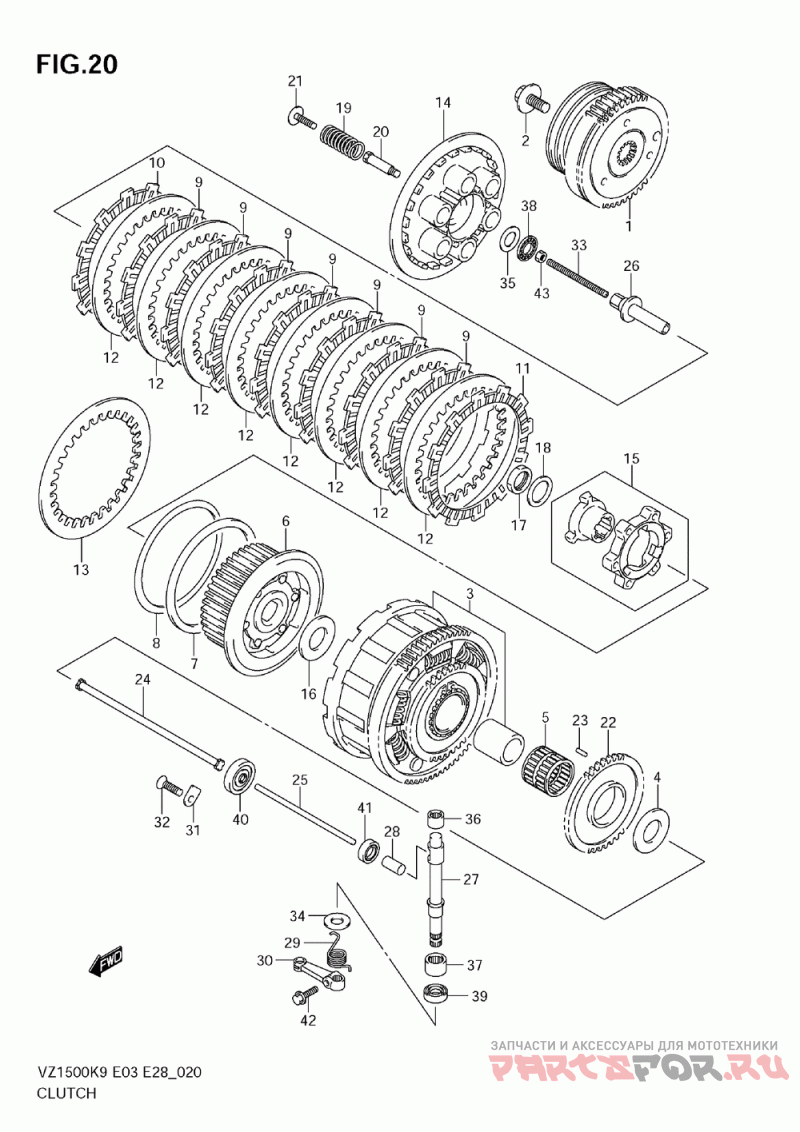

Сцепление

Suzuki (Америка) VZ1500 Boulevard M90

Suzuki (Америка)
#oem кодцена
1
21100-40810
Gear, Primary Dr
2
09103-14010
Bolt (14x28)
3
21200-40890
Gear Assy, Prima
4
09160-25074
Washer (25x52x2.5)
5
09263-35013
Bearing (35x40x39.8)
6
21410-40H00
Hub, Clutch Slee
7
21471-24F00
Seat, Wave Washer
8
21472-24F00
Washer, Clutch Plate Wave
9
21441-24F40
Plate, Clutch Dr
10
21441-24F10
Plate, Clutch Drive, No.2
11
21442-24F00
Plate, Clutch Drive No.3
12
21451-24F00
Plate, Clutch Driven No.1
14
21462-16G00
Disk, Clutch Pressure
15
21610-02F20
Cam Set, Clutch
16
09160-25079
Washer, 25x50x3. (25x50x3.5)
17
09159-24010
Nut, Clutch Sleeve Hub
18
09164-24008
Шайба
19
21413-40H00
Пружина
20
21481-24F31
Bolt, Clutch Spr
21
21482-24F30
Bolt, Clutch Spr
22
16321-40H00
Gear, Oil Pump D
23
09261-04009
Штифт
24
23110-24F00
Rod, Clutch Push, Rh
25
23111-40H00
Rod, Clutch Push
26
23121-41G00
Piece, Clutch Push
27
23122-40H00
Camshaft, Clutch
28
23123-41G00
Cap, Clutch Push Rod
29
23125-48G00
Spring, Clutch Release Return
30
23271-48G00
Arm, Clutch Release
31
24741-20A00
Обойма подшипника
32
09126-06011
Screw, Drive Shaft (6x12) (6x12)
33
09134-06015
Screw, Clutch Push
34
09160-10020
Washer, Clutch Push (10.5x24x1.0)
35
09160-15045
Washer (15.5x28x1) (15.5x28x1.0)
36
09263-10014
Bearing, Cl Rlse Low (10x14x10)
37
09263-12027
Bearing, Cl Rlse Cam Upper (12x18x12)
38
09263-15003
Bearing (15x28x2) (15x28x2.0)
39
09282-10012
Seal, Cl Rlse Arm (10x20x6)
40
09283-06005
.seal, Push Rod (6x18x5)
41
09285-10004
Oil Seal (10x17x5) (10x17x5)
42
01547-0620A
Болт
43
08310-0006A
Nut, No.1
13
21451-24F10
Plate, Clutch Driven No.2
