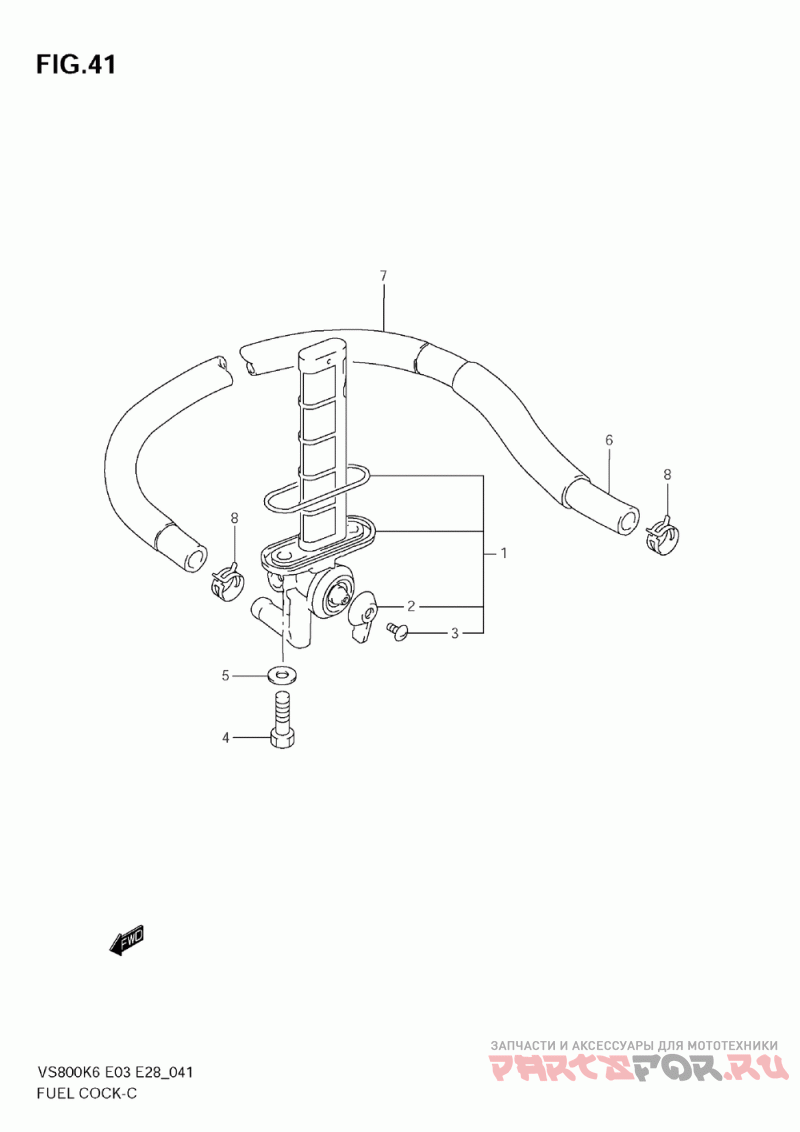

Топливный кран
Suzuki (Америка) VS800 Boulevard S50
| # | oem код | название | цена |
|---|---|---|---|
1 | 44300-38A72 Cock Assy, Fuel | Cock Assy, Fuel | |
2 | 44306-38A00 .lever | .lever | |
3 | 44307-38A00 .screw, Lever | .screw, Lever | |
4 | 09128-06057 Болт | Болт | |
5 | 09168-06026 Gasket, Drain Bolt | Gasket, Drain Bolt | |
6-1 | 44320-38A02 Hose, Fuel (model K6/k7) | Hose, Fuel (model K6/k7) | |
6-2 | 44320-38AA0 Hose Comp, Fuel (model K8/k9) | Hose Comp, Fuel (model K8/k9) | |
7 | 44311-38A01 Tube, Fuel Hose | Tube, Fuel Hose | |
8 | 09401-11415 Зажим | Зажим |
