Сцепление для мотоциклов Suzuki (Америка) VS1400 Boulevard S83 (2009)

Москва и регионы России

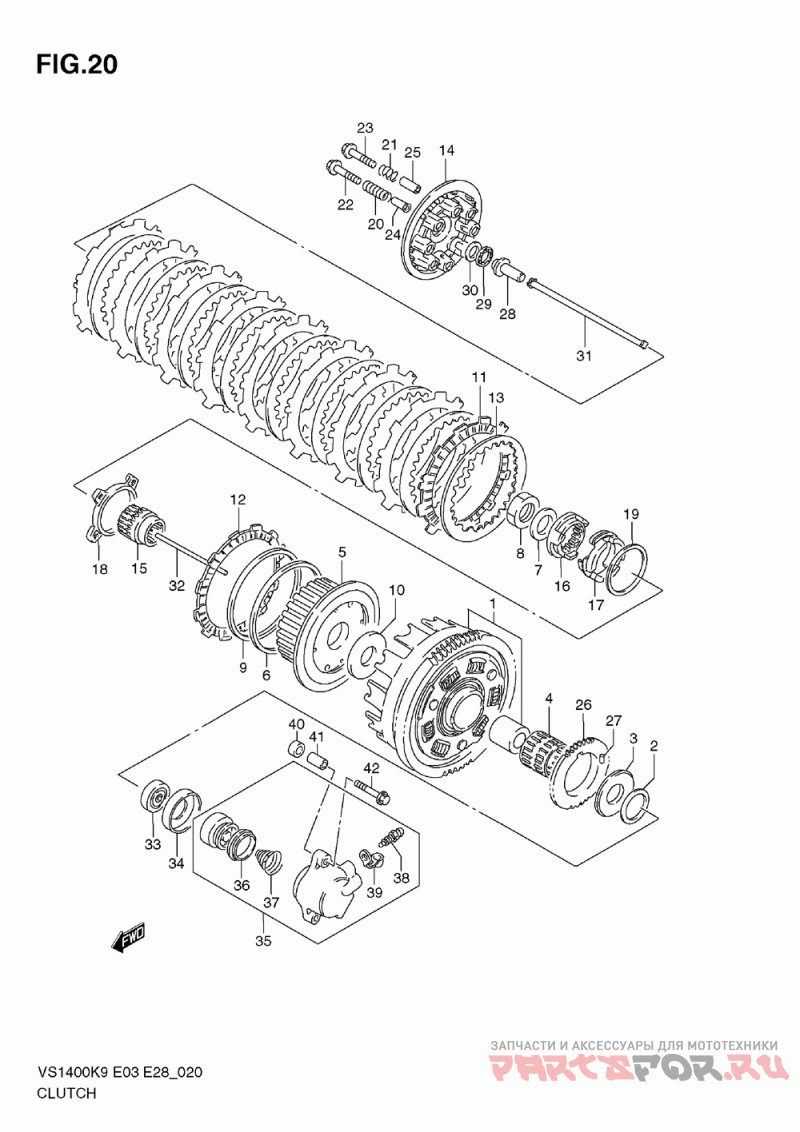

Сцепление

Suzuki (Америка) VS1400 Boulevard S83

Сцепление

#

oem код

название

цена

1

Gear, Primary Driven (nt:79)

Gear, Primary Driven (nt:79)

2

Washer, Inner (25x38x2.5)

Washer, Inner (25x38x2.5)

3

Washer (25x54x2.5)

Washer (25x54x2.5)

4

Bearing (35x40x35.8)

Bearing (35x40x35.8)

5

Hub, Sleeve

Hub, Sleeve

6

Seat, Wave Washer

Seat, Wave Washer

7

Washer (22.4x45x2.50)

Washer (22.4x45x2.50)

8

Гайка

Гайка

9

Washer (110.5x119x0.9)

Washer (110.5x119x0.9)

10

Washer (25x60x2.50)

Washer (25x60x2.50)

11

Plate, Drive No.1

Plate, Drive No.1

12

Plate, Clutch Drive No.2

Plate, Clutch Drive No.2

13

Plate, Driven

Plate, Driven

14

Disc, Pressure

Disc, Pressure

15

Проставка

Проставка

16

Cam, Clutch No.1

Cam, Clutch No.1

17

Cam, Clutch No.2

Cam, Clutch No.2

18

Slider, Clutch Spring

Slider, Clutch Spring

19

Washer, Thrust (54x62x1)

Washer, Thrust (54x62x1)

20

Пружина

Пружина

21

Spring, No.2

Spring, No.2

22

Bolt (6x40)

Bolt (6x40)

23

Bolt, No.2 (6x35)

Bolt, No.2 (6x35)

24

Spacer (6.1x9x25.1)

Spacer (6.1x9x25.1)

25

Spacer (6.1x9x24.1)

Spacer (6.1x9x24.1)

26

Gear, Oil Pump Drive (nt:40)

Gear, Oil Pump Drive (nt:40)

27

Roller (od:6, L:6)

Roller (od:6, L:6)

28

Piece, Push

Piece, Push

29

Подшипник (15x28x2)

Подшипник (15x28x2)

30

Washer (15.5x28x1)

Washer (15.5x28x1)

31

Rod, Push Rh

Rod, Push Rh

32

Rod, Clutch Push Lh

Rod, Clutch Push Lh

33

Seal, Clutch Push Rod Oil

Seal, Clutch Push Rod Oil

34

Седло

Седло

35

Cylinder, Clutch Release

Cylinder, Clutch Release

36

.cup

.cup

37

Пружина

Пружина

38

Штуцер перепускной

Штуцер перепускной

39

.cap, Bleeder

.cap, Bleeder

40

Проставка

Проставка

41

Штифт

Штифт

42

Болт

Болт
