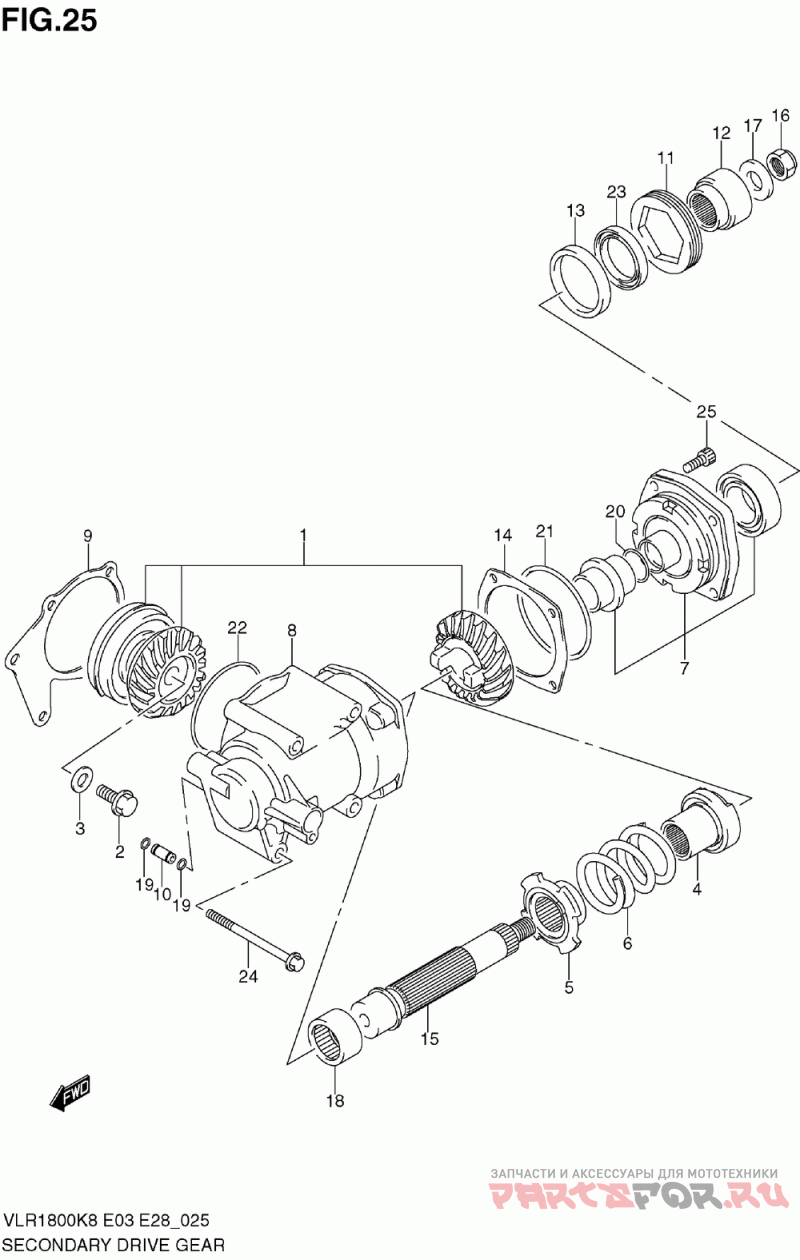

Secondary drive gear

Suzuki (Америка) VLR1800,T Boulevard C109R

Suzuki (Америка)
#oem кодцена
1
24910-48830
Gear Set, Second
2
09103-12084-A05
Bolt, Secondary Drive Gear (12x24)
3
09160-12045
Washer, Secondary Drive
4
24923-48G10
Dog, Output Cam
5
24924-48G10
Stopper, Cam Spr
6
24925-48G00
Spring, Secondary Damper
7
24926-48820
Stopper, Seconda
8
24931-48G20
Case, Secdary Ge
9
24935-48810
Shim Set, Drive (t:0.40/0.45/0.50 0.70/0.75/0.80 )
10
24940-26D00
Pipe, Sec Gear Case Oil
11
24942-26D00
Stopper, Sec Driven
12
24943-48G00
Coupling, Sec Driven
13
24944-48G00
Housing, Oil Seal
14
24945-48810
Shim Set, Second (t:0.30/0.35/0.40 0.50/0.60 )
15
24961-48G00
Shaft, Secondary Driven Bevel
16
09159-16003
Nut, Sec Driven Bevel Couplin
17
09160-16040
Washer, Sec Driven Bevel
18
09263-32012
Bearing, Secondary Driven
19
09280-06008
O Ring, Sec Case Oil Pi
20
09280-24010
O Ring (d:2.4, Id:23.7)
21
09280-78003
O Ring, Bearing Housing (dd:3.7,id:76.5)
22
09280-92003
O Ring, D:2.4, Id (dd:2.4, Id:90.8)
23
09283-38011
Seal, Secondary Driven Oil
24
01550-0895A
Bolt, Crankcase (8x95)
25
09106-09002
Bolt, 9x30 (9x30)
