Eller shaft - final drive gear (vl800ck7/ck8/ck9) для мотоциклов Suzuki (Америка) VL800,C,T Boulevard C50 (2009)

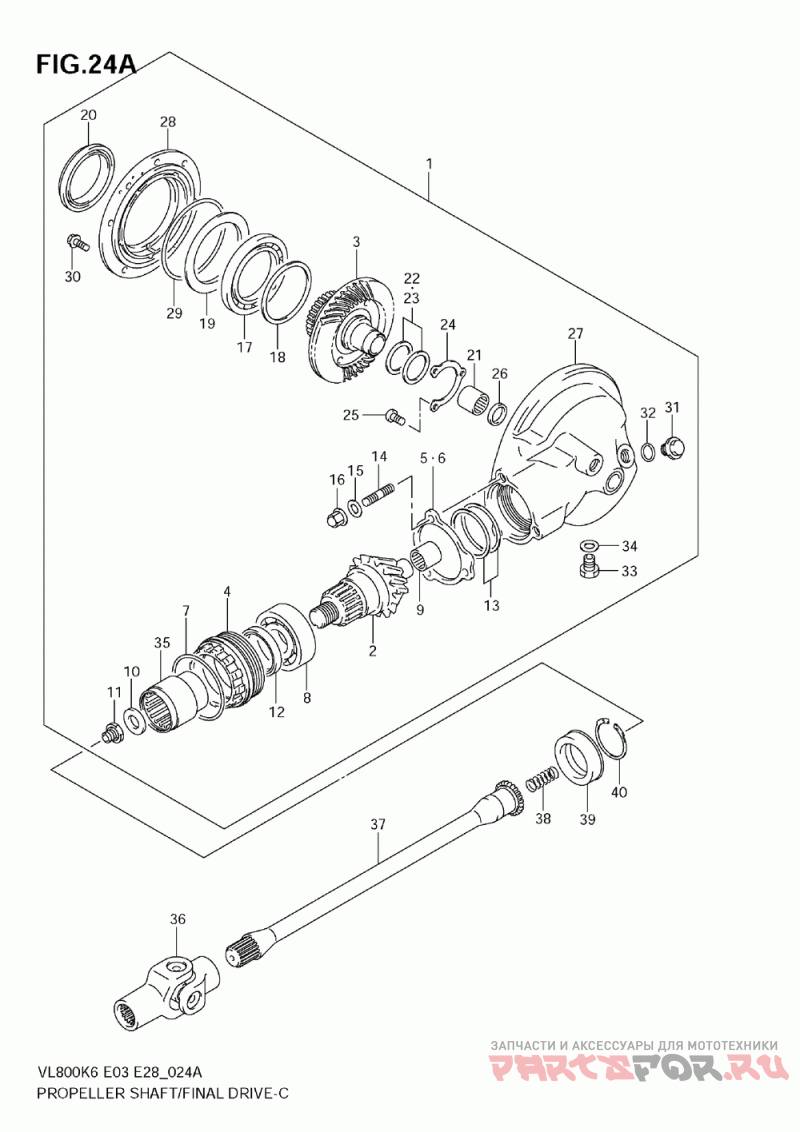

Eller shaft - final drive gear (vl800ck7/ck8/ck9)

Suzuki (Америка) VL800,C,T Boulevard C50

Eller shaft - final drive gear (vl800ck7/ck8/ck9)

oem код

название

цена

27301-38811

Gear & Case Set

27311-38A00

.gear, Final Drive Bevel

27320-45C01

.gear, Final Driven Bevel

.stopper, Bearing

.plate

.plate

.o Ring (d:1.9, Id:61.6)

09267-30005

.bearing (30x62x23.8)

.bearing (17x32x16)

Washer, Drive Shaft

Гайка

Seal, Final Driven Gear Oil L

27445-38810

.shim Set, Final (t:0.3/0.35/0.40 0.50/0.60 )

Bolt, Stud L:25

Шайба

Гайка

Bearing, Final Driven Rh

27327-34810

.shim Set, Drive Gear Bearing (t:0.35/0.40 0.50/0.60 )

27328-34200

.plate

09289-70001

Seal, Final Driven Gear Oil R

09263-32007

.bearing, Lh (32x46x17.7)

27326-34820

.shim Set, Final Drive Gear (t:1.05/1.10/1.20 1.25/1.35 )

27326-34810

.shim Set, Final Drive Gear (t:1.40/1.45/1.50)

.retainer, Bearing

Винт

.oil Seal (30x42x7)

.case, Final Gear (for Silver)

27460-07A01

.case, Final Gear Bearing

09280-00015

.o Ring (d:3.5, Id:131.6)

01550-0825A

Болт

09247-18001

.plug, Oil Filler

09280-18004

O Ring (d:2.4, Id:17.8)

09247-14002

.plug, Oil Drain

09168-14004

.gasket (14.1x18x1.5)

27172-38A00

.coupling, Propeller Shaft

27100-38A50

Yoke, Universal Joint

27151-41F00

Вал гребного винта

09440-18019

Пружина

09283-30051

Oil Seal (28.4x48x15)

09381-40003

.circlip

27100-38A60

Yoke Comp, Unive
