E cover (model k8) для мотоциклов Suzuki (Америка) VL800,C,T Boulevard C50 (2009)

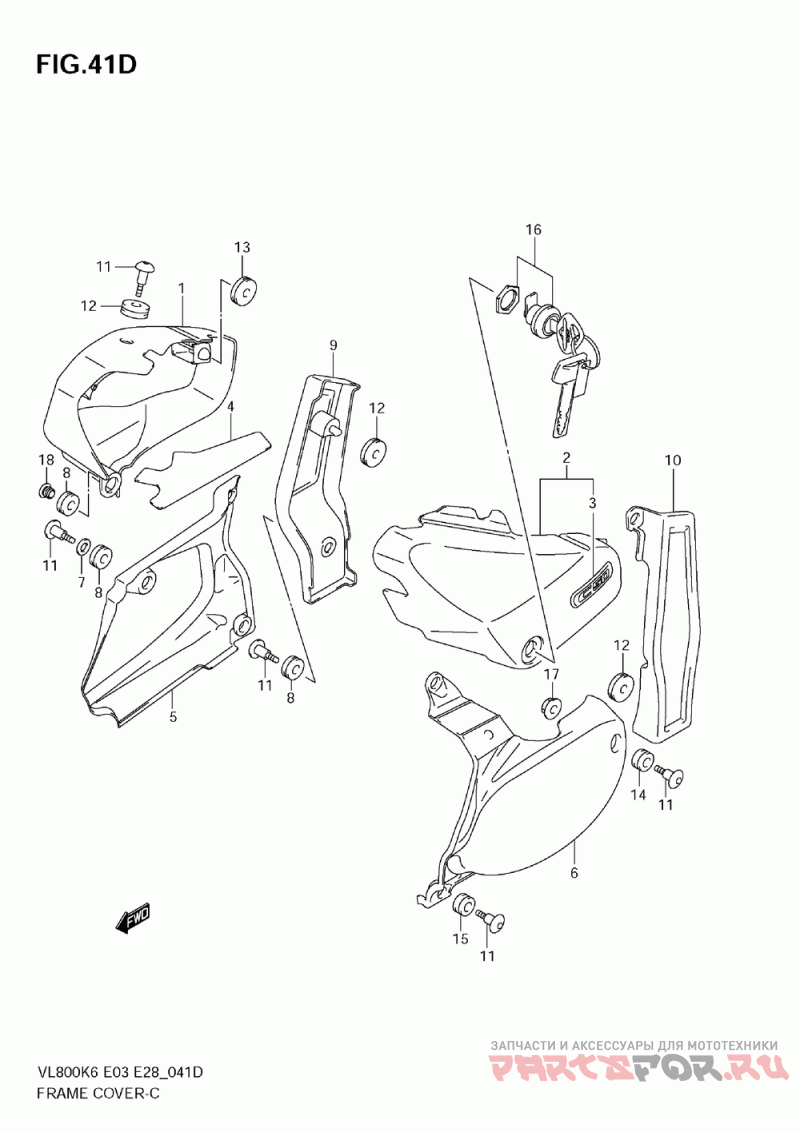

E cover (model k8)

Suzuki (Америка) VL800,C,T Boulevard C50

oem код

название

цена

1-1

47110-41F81-YAY

Cover, Frame Rh (black) (e3,e28 For Yay)

1-2

47110-41F81-YHF

Cover Comp, Side (e3, E28 For Crt)

1-3

47110-41F81-YBA

Cover, Side, R(bl (e3, E28 For Eua)

1-4

47110-41F81-YMD

Cover, Comp Sid (vl800c E3,e28)

1-5

47110-41FA1-YAY

Cover, Frame Rh (black) (vl800t E3,e28 For Yay )

1-6

47110-41FA1-YHL

Cover, Side, Rh (vl800t E3,e28 For Eub )

1-7

47110-41F91-YAY

Cover, Frame Rh (black) (e33 For Yay)

1-8

47110-41F91-YHF

Cover Comp, Side (e33 For Crt)

1-9

47110-41F91-YBA

Cover, Side Rh (e33 For Eua)

1-10

47110-41F91-YMD

Cover Comp, Side (vl800c E33)

1-11

47110-41FB1-YAY

Cover, Frame Rh (black) (vl800t E33 For Yay)

1-12

47110-41FB1-YHL

Cover Comp, Side (vl800t E33 For Eub)

2-1

47210-41F80-YAY

Cover, Frame Lh (black) (for Yay)

2-2

47210-41F80-YHF

Cover Comp, Side (for Crt)

2-3

47210-41F80-YBA

Cover, Frame Lh (blue) (for Eua)

2-4

47210-41F80-YMD

Cover Comp, Sid (vl800c)

2-5

47210-41FA0-YAY

Cover, Frame Lh (black) (vl800t For Yay)

2-6

47210-41FA0-YHL

Cover, Frame Lh( (vl800t For Ebu)

3-1

68131-41F40

.emblem, C50

3-2

68131-41F50

.emblem, C50t (vl800t)

47166-41F00

Shield, Frame Cover Rh

Cover, Side Lower Rh

Cover, Side Lower Lh

Шайба

.cushion, 8.5x20x8 ( Refer To Fig.41e(i- 9) For Model K9 )

47141-41F01-019

Cover, Side Rear Rh (black)

47241-41F00-019

Cover, Side Rear Lh (black)

Screw, Brace

Cushion, Brace

.grommet

Cushion, Lower

Cushion Box Front

Lock Set, Fuel Lid

Гайка

Plug ( Refer To Fig.41e(i- 9) For Model K9 )
