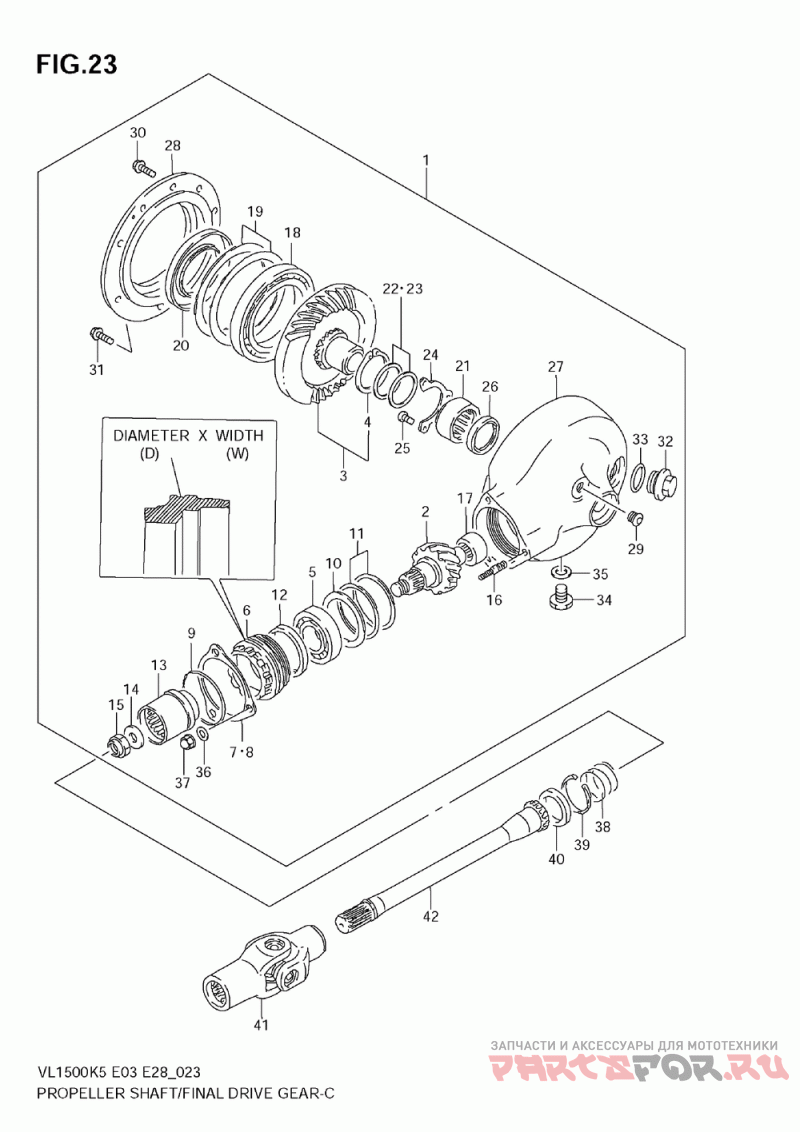

Propeller shaft/final drive gear для мотоциклов Suzuki (Америка) VL1500,T Boulevard C90 (2009)

Propeller shaft/final drive gear

Suzuki (Америка) VL1500,T Boulevard C90

oem код

название

цена

1-1

27300-10812

Gear&case, Final (model K5)

1-4

27300-10813

Gear & Case Set (model K9)

27311-24A03

.gear, Final Drive Bevel

27320-38B00

.gear, Final Driven Bevel

08331-31526

..circlip

09262-28023

.bearing, Final Drive Gear

27312-24A02

.stopper, Final Drive Be

27313-38B00

.plate, Bearing Stopper

27313-38B10

.plate, Bearing Stopper

09280-64003

O Ring (d:3.1 Id:63.9)

09160-54001

.washer, Final Drive Bearing

27445-24810

.shim Set, Final Drive Gear (t:0.3/0.35/0.4 0.5/0.6 )

09283-47002

.seal, Final Drive Oil

27172-24A00

.coupling, Final Drive Gear

09160-16029

Washer, Drive Shaft

09159-16003

Nut, Sec Driven Bevel Couplin

16-1

01421-1025B

Bolt, Stud (model K5)

16-2

09108-10095

Bolt, Stud L:25 (model K6/k7/k8/k9)

09263-20062

Bearing, Idle Shaft

09262-85001

.bearing, Final Driven Gear,

27327-38810

.shim Set, Final Drive, R (t:0.35/0.4/0.5/0.6)

.oil Seal

.bearing, Lh

Washer, 35x46x0.

.shim Set, Final Driven Gear (t:1.05/1.1/1.2/1.25 1.35/1.4/1.45/1.5 )

.holder, Bearing

Винт

.oil Seal

.case, Final Gear

.case, Final Gear Bearing

Plug, T/m Breather

Болт

Болт

.plug, Gear Oil Filler

09280-26006

O Ring (d:3.1, Id:26.4)

09247-14002

.plug, Oil Drain

09168-14004

.gasket (14.1x18x1.5)

09164-10008

Шайба

09159-10026

Гайка

09440-30008

Spring, Propeller Shaft

.circlip

Seal, Coupling Oil

Yoke, Universal

Вал гребного винта
