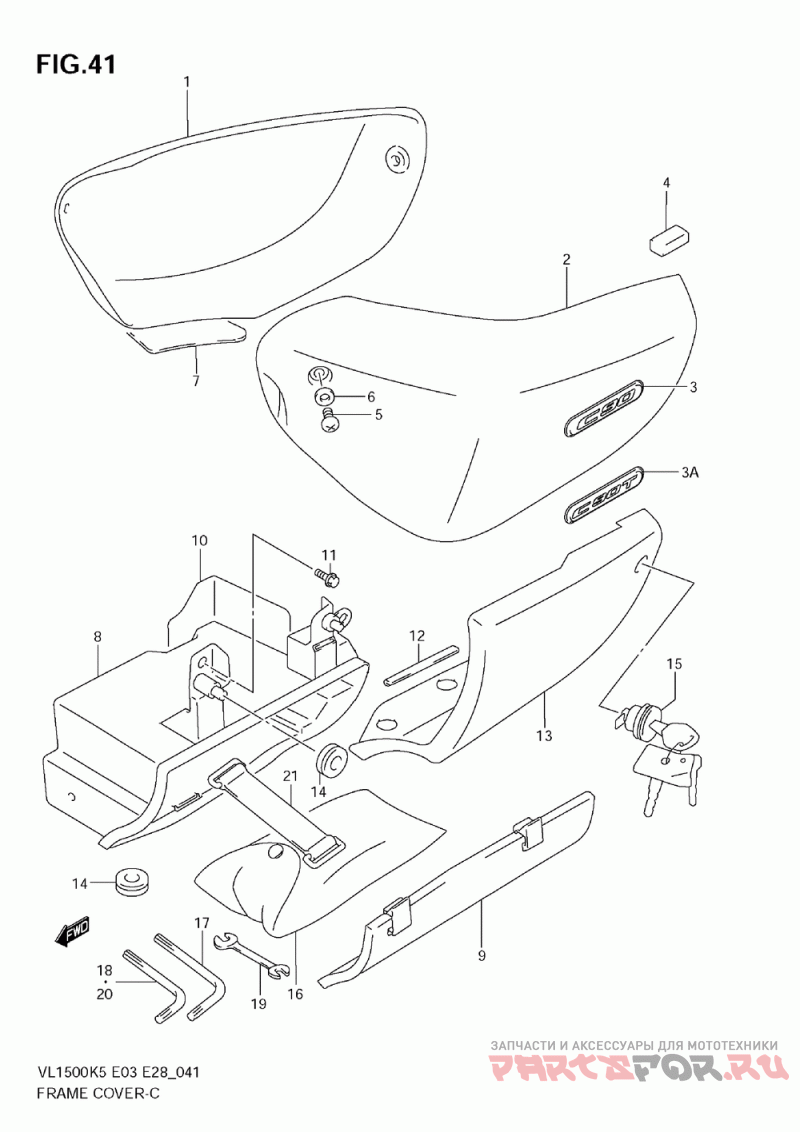

Frame cover (model k5/k6) для мотоциклов Suzuki (Америка) VL1500,T Boulevard C90 (2009)

Frame cover (model k5/k6)

Suzuki (Америка) VL1500,T Boulevard C90

oem код

название

цена

1-1

47110-10F00-YAY

Cover, Frame Rh (black) (model K5 For Yay)

1-2

47110-10F00-YBA

Cover, Frame Rh (blue) (model K5 For Ny3)

1-3

47110-10F00-YM6

Cover, Frame Rh (silver) (model K5 For Avu)

1-5

47110-10F00-YD8

Cover, Frame Rh (silver) (model K6 For Cfg)

1-6

47110-10F00-YAR

Cover, Frame Rh (blue) (model K6 For Cfh)

1-7

47110-10F00-YHF

Cover, Frame Rh (gray) (vl1500tk6)

2-1

47210-10F00-YAY

Cover, Frame Lh (black) (model K5 For Yay)

2-2

47210-10F00-YBA

Cover, Frame Lh (blue) (model K5 For Ny3)

2-3

47210-10F00-YM6

Cover, Frame Lh (silver) (model K5 For Avu)

2-5

47210-10F00-YD8

Cover, Frame Lh (silver) (model K6 For Cfg)

2-6

47210-10F00-YAR

Cover, Frame Lh (blue) (model K6 For Cfh)

2-7

47210-10F00-YHF

Cover, Frame Lh (gray) (vl1500tk6)

Emblem (vl1500)

Emblem (vl1500t)

Подушка

Болт

Washer (6.5x15x1.5)

Shield, Frame Cover Rh

Body, Tool Holder

Cap, Tool Holder

Shield, Body

Screw ( Refer To Fig.41c(h- 6) For Model K9 )

47212-10F00

Molding, Lh

47440-10F00

Cover, Tool Holder

09320-08047

Cushion, Seat Tail Cover Fr

Lock Set, Fuel Lid

Tool Assy

Hexagon Spanner, 12

Hexagon Spanner, 4

Spanner (8x10)

Spanner, Hexagon 5

Band, Tool ( Refer To Fig.41c(h- 6) For Model K9 )
