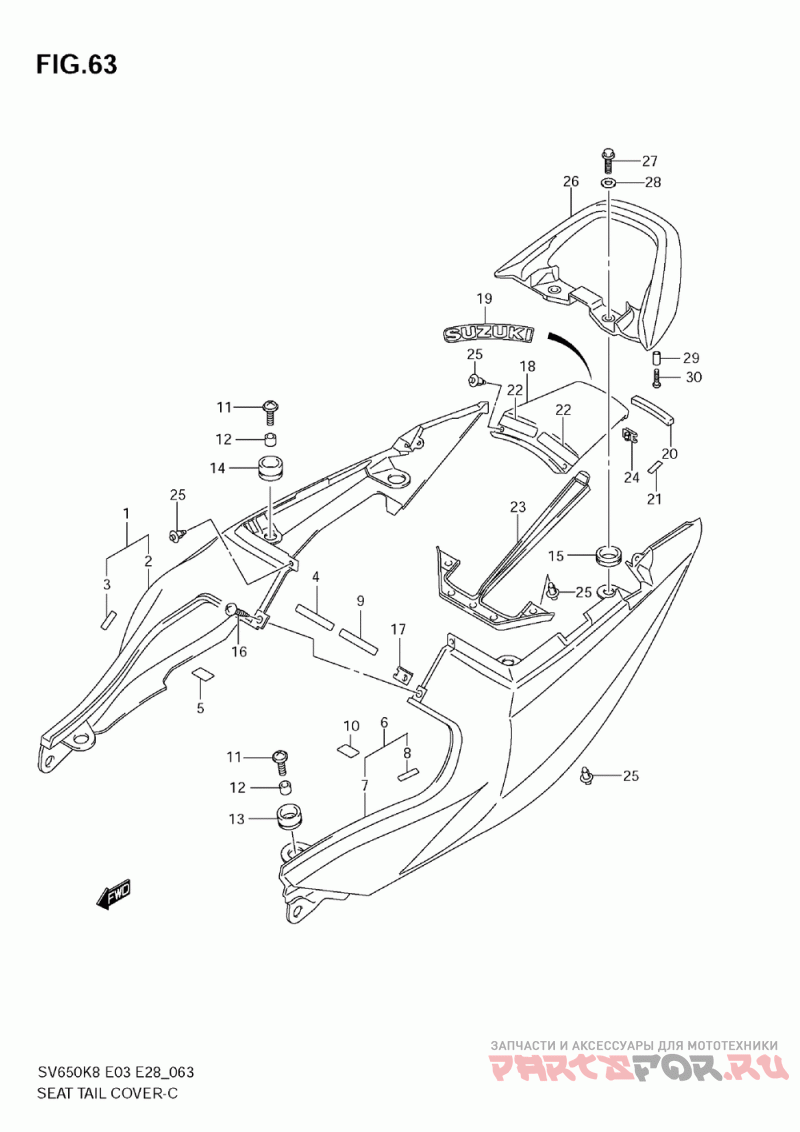

Seat tail cover (sv650sk8/sak8)

Suzuki (Америка) SV650,S,A,F

Suzuki (Америка)
#oem кодцена
1-1
45501-16G21-YKZ
Cover Comp, Seat
1-2
45501-16G21-YLF
Cover, Seat Tail
1-3
45501-16G21-YPA
Cover, Seat Tail
1-4
45501-16G21-YAY
Cover Set, Seat Tail, R
2-1
45511-16G02-YKZ
Cover, Seat Tail
2-2
45511-16G02-YLF
Cover, Seat Tail
3
45516-42F00
.tape
4
45517-16G10
.tape, Seat Tail Cover Fr No.
5
47161-10D00
.tape, Seat Tail Cover Fr No.
6-1
45502-16G21-YKZ
Cover Comp, Seat
6-2
45502-16G21-YLF
Cover, Seat Tail
6-3
45502-16G21-YPA
Cover, Seat Tail
6-4
45502-16G21-YAY
Cover Set, Seat Tail, L
7-1
45512-16G02-YKZ
Cover, Seat Tail
11
09136-06082
Винт
12
09180-06286
Проставка
13
09320-10052
Cushion (fr)
14
47115-16G00
Cushion (ctr)
15
09320-20010
Cushion (rr)
16
03241-1512B
Винт
17
09148-05038
Nut ( Refer To Fig.63a(h- 9) For Sv650sk9/sak9 )
18-1
45503-16G00-YKZ
Cvr Cmp, Seat Ta ( (blue) )
18-2
45503-16G00-YLF
Cover, Seat Tail ( (gray) )
18-4
45503-16G00-YAY
Cover, Seat Tail, Center ( (black) )
19-1
68161-16G00-YD8
.emblem, "suzuki" (for Yay,ykz)
19-2
68161-16G00-019
Emblem, "suzuki (for Ylf)
19-3
68161-16G00-17U
.emblem, "suzuki" (for Ypa)
20
45518-16G00
.cushion, Seat Tail Cover Ctr
21
45517-16G00
.tape, Seat Tail Cover
23-1
45514-16G00-YKZ
Cover, Seat Tail
23-2
45514-16G00-YLF
Cover, Seat Tail
23-4
45514-16G00-YAY
Cover, Seat Tail, Rear
24
09148-06018
Гайка
25
09409-06314-5PK
Клипса (черн.)
26-1
46211-16G00-YKZ
Handle, Pillion
26-2
46211-16G00-YLF
Handle, Pillion
26-4
46211-16G00-YAY
Handle, Pillion Rider (black)
27
01551-0840B
Болт
28
09160-08158
Шайба
29
09180-06271
Проставка
30
09139-06112
Screw ( Refer To Fig.63a(h- 9) For Sv650sk9/sak9 )
