Передняя вилка для мотоциклов Suzuki (Америка) SV650,S,A,F (2009)

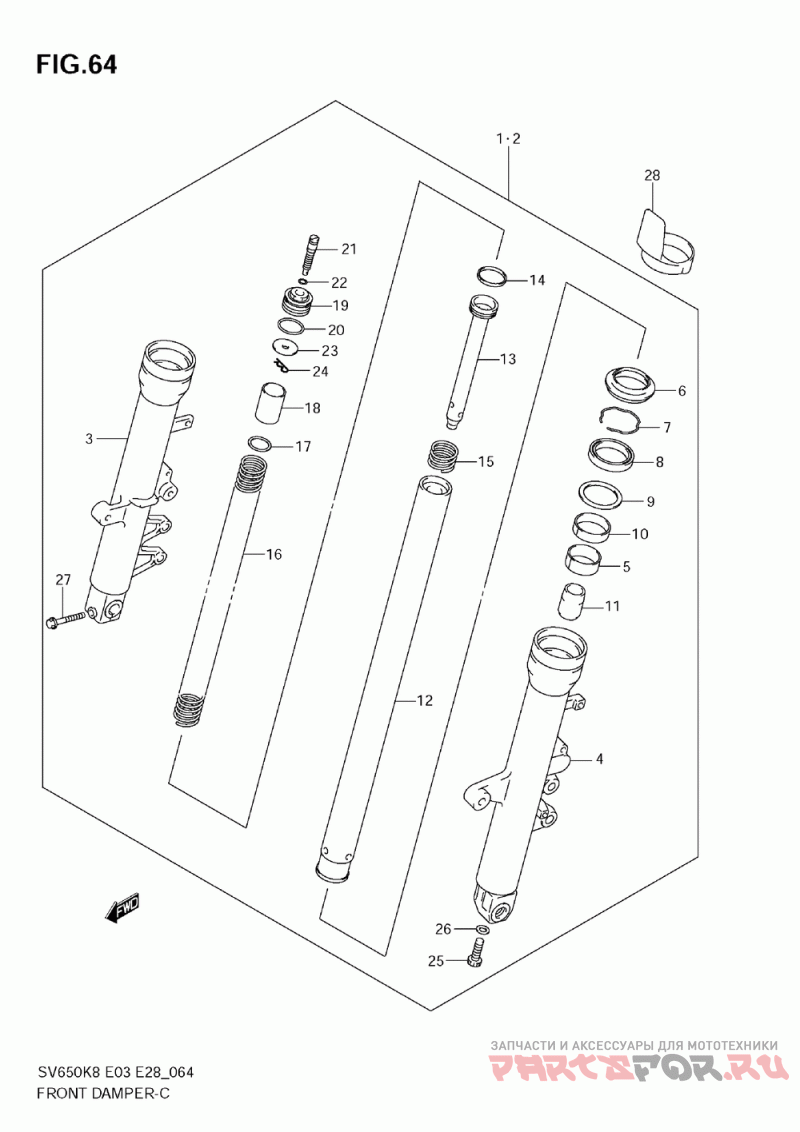

Передняя вилка

Suzuki (Америка) SV650,S,A,F

oem код

название

цена

1-1

51103-17G00

Damper Assy, Front Fork Rh (sv650k8/k9 (black) )

1-4

51103-17G80

Damper Assy, F F (sv650ak8 (silver) )

1-6

51103-17G50

Damper Assy, Front Fork Rh (sv650sk8/sk9 (black) )

2-1

51104-17G00

Damper Assy, Front Fork Lh (sv650k8/k9 (black) )

2-4

51104-17G80

Damper Assy, F F (sv650ak8 (silver) )

2-7

51104-17G50

Damper Assy, Front Fork Lh (sv650sk8/sk9 (silver) )

3-1

51130-17GA0

51130-17g00 (sv650k8/sk8/k9/sk9)

3-2

51130-17G00

.tube, Outer Rh (sv650k8/sk8/k9/sk9)

3-4

51130-17G80

Tube, Outer, R (sv650ak8/sak8/ak9/sak9)

4-1

51140-17GA0

51140-17g00 (sv650k8/sk8/k9/sk9)

4-2

51140-17G00

.tube, Outer Lh (sv650k8/sk8/k9/sk9)

4-4

51140-17G80

Tube, Outer(lh) (sv650ak8/sak8/ak9/sak9)

51121-42E00

Втулка скольжения

6-1

51571-47D50

.seal, Dust (sv650k8/sk8/k9/sk9)

6-2

51173-01H00

.seal, Dust (sv650ak8/sak8/ak9/sak9)

51556-38B00

Кольцо стопорное

8-1

51153-08D00

.seal, Oil (sv650k8/sk8/k9/sk9)

8-2

51153-01H00

.seal, Olil (sv650ak8/sak8/ak9/sak9)

9-1

51168-38B00

.spacer, Seal (sv650k8/sk8/k9/sk9)

51152-17G00

Втулка направляющая

51195-48B31

Вставка,блокировки масла

12-1

51110-17G00

.tube, Inner (sv650k8/sk8/k9/sk9)

13-1

51146-17G00

.cylinder (sv650k8/k9)

13-2

51146-17G20

.cylinder (sv650sk8/sk9)

51196-12C00

.ring, Piston

15-1

51177-12C00

.spring, Rebound (sv650ak8/sak8/ K9/ak9/sak9 )

15-2

51177-17G50

.spring, Rebound (sv650sk8/sk9)

16-1

51171-17G00

.spring, Front (sv650k8/k9)

16-2

51171-17G20

.spring, Front (sv650sk8/sk9)

51192-19C00

.joint, Spring

18-1

51176-12C10

.collar, Spring (sv650k8/ak8/sak8/ K9/ak9/sak9 )

18-2

51176-17G50

.collar, Spring (sv650sk8/sk9)

51189-12C00

.bolt, Fork

51117-12C00

Кольцо

51185-17G00

.adjuster Bolt, Spring

Кольцо

.seat, Spring

.pin, Seat Spring

Болт

Прокладка

Bolt (rh)

Протектор

2-6

51104-17GC0

Damper Assy, Ff (sv650sk8/sk9 (black) )
