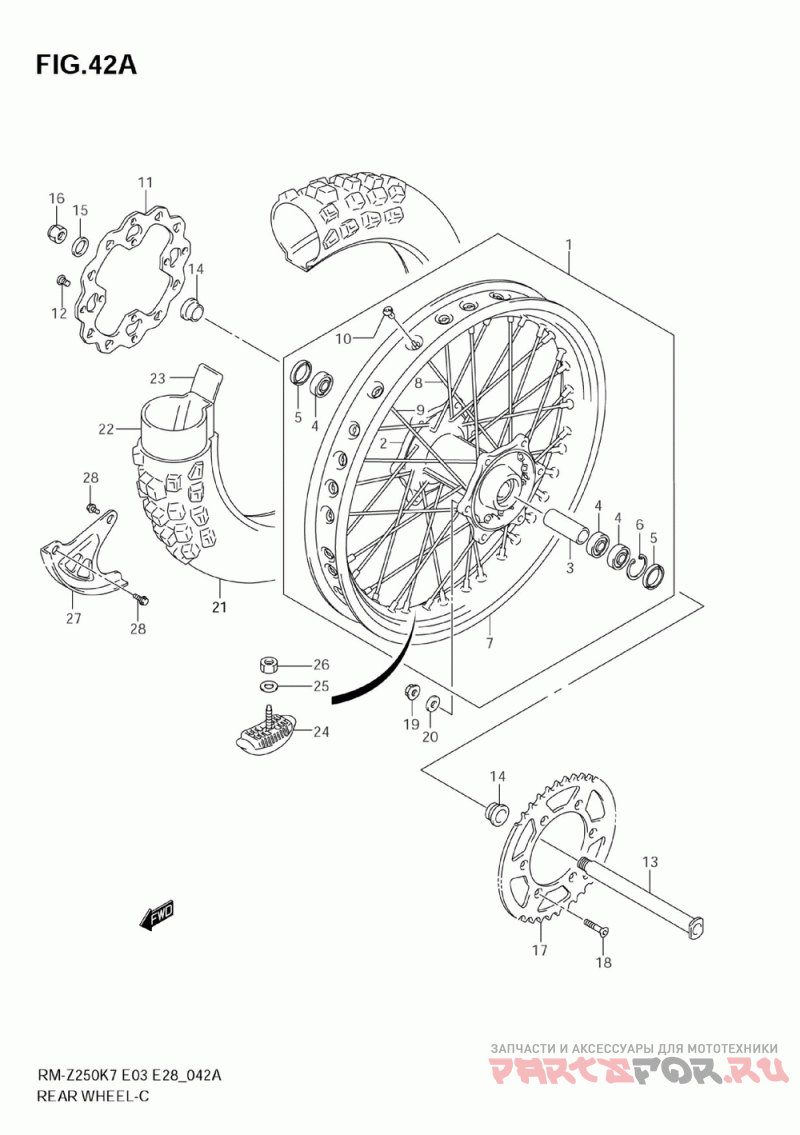

Rear wheel (model k8/k9)
Suzuki (Америка) RM-Z250
| # | oem код | название | цена |
|---|---|---|---|
1 | 64100-10H00 Wheel Assy, Rear ( ) | Wheel Assy, Rear ( ) | |
2 | 64111-35G20 Hub, Rear ( ) | Hub, Rear ( ) | |
3 | 64731-35G01 Spacer, Bearing ( ) | Spacer, Bearing ( ) | |
4 | 09262-25139 Bearing ( ) | Bearing ( ) | |
5 | 09283-32045 Seal, Dust ( ) | Seal, Dust ( ) | |
6 | 08331-4142A Circlip ( ) | Circlip ( ) | |
7 | 65311-10H00 Rim, Rear Wheel (1.85x19) ( ) | Rim, Rear Wheel (1.85x19) ( ) | |
8 | 65321-35G10 Spoke, Rear Whee ( ) | Spoke, Rear Whee ( ) | |
9 | 65322-35G10 Spoke, Rear Whee ( ) | Spoke, Rear Whee ( ) | |
10 | 65325-35G10 Nipple, Rear Whe ( ) | Nipple, Rear Whe ( ) | |
11 | 69211-28H00 Disc, Rear Brake ( ) | Disc, Rear Brake ( ) | |
12 | 09139-08022 Screw ( ) | Screw ( ) | |
13 | 64711-35G00 Axle, Rear ( ) | Axle, Rear ( ) | |
14 | 64751-35G00 Spacer ( ) | Spacer ( ) | |
15 | 09160-22081 Washer ( ) | Washer ( ) | |
16 | 09159-22007 Nut ( ) | Nut ( ) | |
17-1 | 64511-37E00 Sprocket, Rear (nt:48) ( ) | Sprocket, Rear (nt:48) ( ) | |
17-2 | 64511-36E00 Sprocket, Rear (nt:50) (opt ) | Sprocket, Rear (nt:50) (opt ) | |
17-3 | 64511-40261 Sprocket, Rear (nt:51) (opt ) | Sprocket, Rear (nt:51) (opt ) | |
17-4 | 64511-28E00 Sprocket, Rear (nt:49) (opt ) | Sprocket, Rear (nt:49) (opt ) | |
17-5 | 64511-29F00 Sprocket, Rear (nt:47-520) (opt ) | Sprocket, Rear (nt:47-520) (opt ) | |
18 | 09120-08017 Screw (8x30.5) ( ) | Screw (8x30.5) ( ) | |
19 | 09159-08133 Nut ( ) | Nut ( ) | |
20 | 09160-08082 Washer (8.5x16x1.2) ( ) | Washer (8.5x16x1.2) ( ) | |
21 | 65110-36F00 Tire, Rear (100/90-19) ( (dunlop) ) | Tire, Rear (100/90-19) ( (dunlop) ) | |
22 | 65200-01B30 Tube, Wheel Inner ( ) | Tube, Wheel Inner ( ) | |
23 | 65261-01B30 Protector, Inner Tube ( ) | Protector, Inner Tube ( ) | |
24 | 65270-43D00 Stopper, Bead ( ) | Stopper, Bead ( ) | |
25 | 08322-0108B Washer ( ) | Washer ( ) | |
26 | 08310-0008B Nut ( ) | Nut ( ) | |
27 | 69231-37F11 Cover, Rear Disc ( ) | Cover, Rear Disc ( ) | |
28 | 09116-06197 Bolt ( ) | Bolt ( ) | |
11 | 69211-28H10 Disc, Rear Brake ( ) | Disc, Rear Brake ( ) | |
13 | 64711-35G10 Axle, Rear ( ) | Axle, Rear ( ) | |
14 | 64751-35G01 Spacer, Rear Axl ( ) | Spacer, Rear Axl ( ) | |
27 | 69231-37F12 Cover, Rear Disc ( ) | Cover, Rear Disc ( ) |
