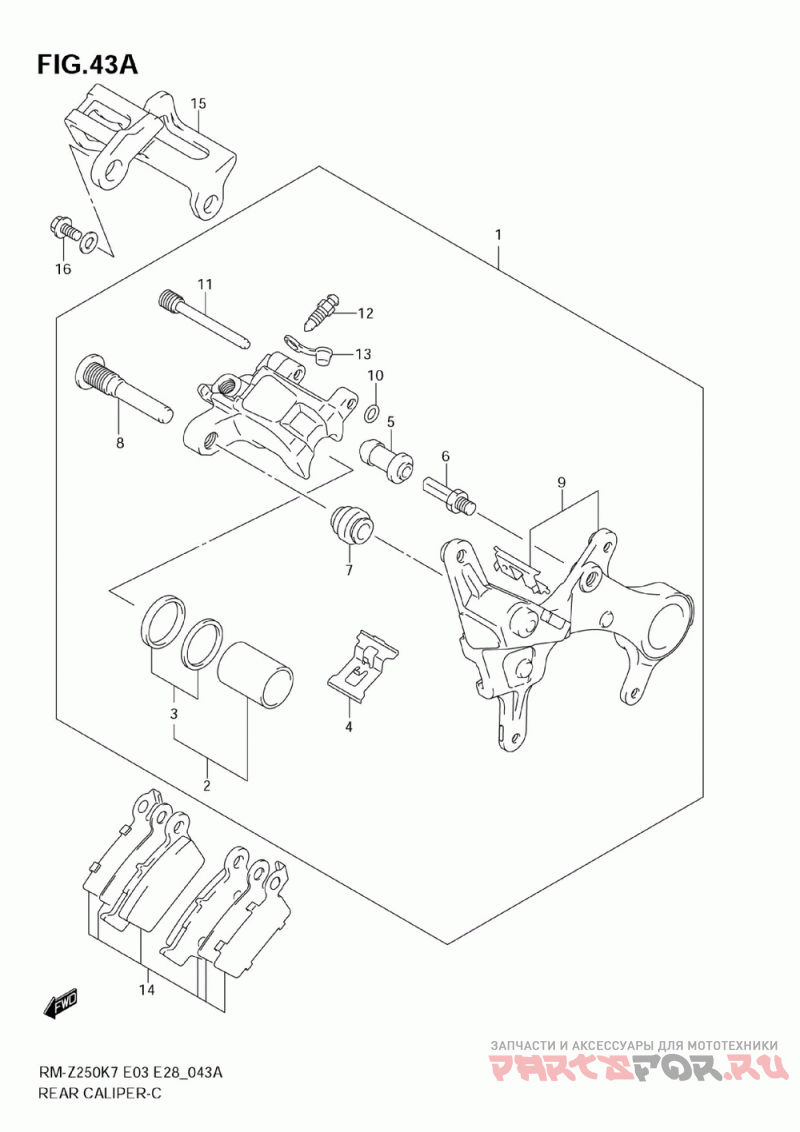

Rear caliper (model k8/k9)
Suzuki (Америка) RM-Z250
| # | oem код | название | цена |
|---|---|---|---|
1 | 69100-35G20-999 Caliper Assy, Re ( ) | Caliper Assy, Re ( ) | |
2 | 69100-14820 .piston Set ( ) | .piston Set ( ) | |
3 | 69100-13810 ..seal Set, Piston ( ) | ..seal Set, Piston ( ) | |
4 | 69315-35G00 .spring ( ) | .spring ( ) | |
5 | 59386-13A00 .boot ( ) | .boot ( ) | |
6 | 59382-27C30 .bolt ( ) | .bolt ( ) | |
7 | 59303-14500 .boot ( ) | .boot ( ) | |
8 | 59305-36E00 .pin ( ) | .pin ( ) | |
9 | 69350-35G01 .bracket ( ) | .bracket ( ) | |
10 | 59145-37F00 .ring, Stopper ( ) | .ring, Stopper ( ) | |
11 | 69345-37F00 .pin ( ) | .pin ( ) | |
12 | 59121-01A00 .bleeder ( ) | .bleeder ( ) | |
13 | 59122-01A00 .cap, Bleeder ( ) | .cap, Bleeder ( ) | |
14 | 69100-35810 Pad Set ( ) | Pad Set ( ) | |
15 | 69725-37F00 Guard, Rear Caliper ( ) | Guard, Rear Caliper ( ) | |
16 | 09116-06197 Bolt ( ) | Bolt ( ) | |
6 | 59382-14500 Pin ( ) | Pin ( ) | |
15 | 69725-37F01 Guard, Rr Calipe ( ) | Guard, Rr Calipe ( ) |
