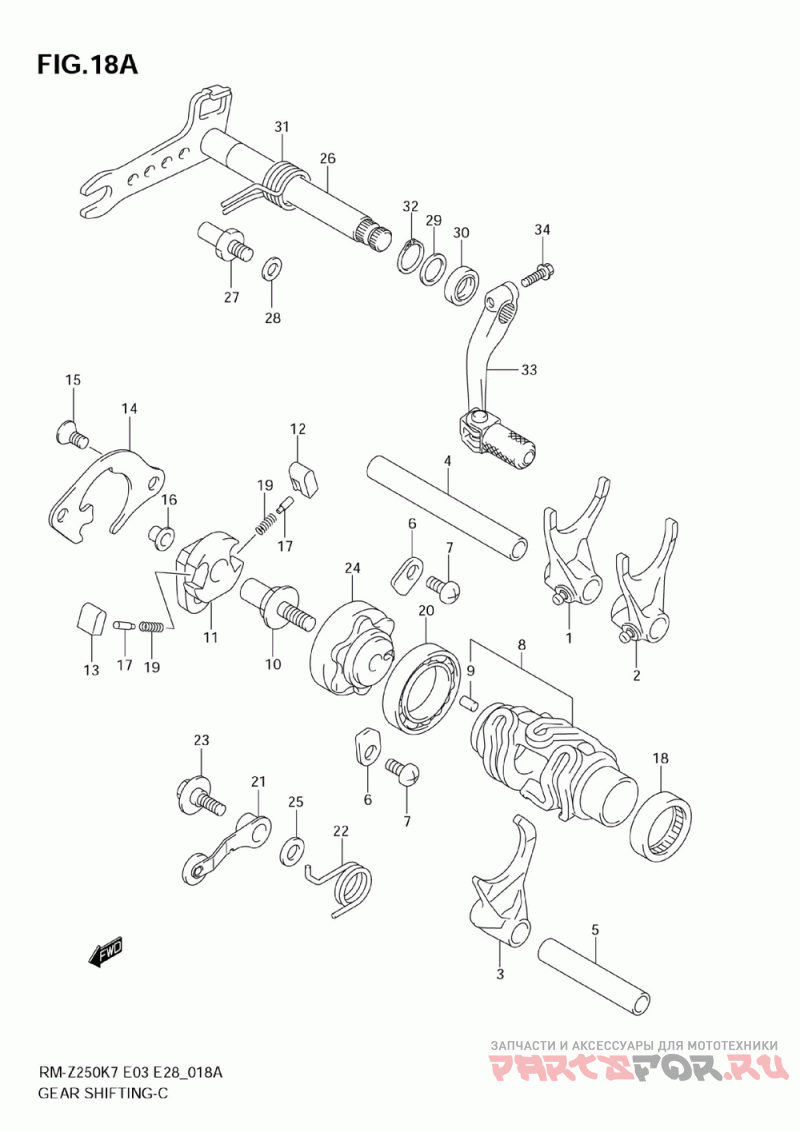

Gear shifting (model k8/k9)
Suzuki (Америка) RM-Z250
| # | oem код | название | цена |
|---|---|---|---|
1 | 25211-10H00 Fork, Gear Shift No.1 ( ) | Fork, Gear Shift No.1 ( ) | |
2 | 25221-10H00 Fork, Gear Shift No.2 ( ) | Fork, Gear Shift No.2 ( ) | |
3 | 25231-10H01 Fork, Gear Shift ( ) | Fork, Gear Shift ( ) | |
4 | 25411-37F20 Shaft, Gear Fork, No.1 ( ) | Shaft, Gear Fork, No.1 ( ) | |
5 | 25421-27C01 Shaft, Gear Fork, No.2 ( ) | Shaft, Gear Fork, No.2 ( ) | |
6 | 24741-21A00 Retainer, Shift Cam Bearing ( ) | Retainer, Shift Cam Bearing ( ) | |
7 | 09125-06110 Screw, Shift Cam (6x12) ( ) | Screw, Shift Cam (6x12) ( ) | |
8 | 25310-10H10 Cam, Gear Shift ( ) | Cam, Gear Shift ( ) | |
9 | 04221-04089 Pin ( ) | Pin ( ) | |
10 | 25313-37F00 Pin, Shift ( ) | Pin, Shift ( ) | |
11 | 25322-10H00 Shifter, Gear Sh ( ) | Shifter, Gear Sh ( ) | |
12 | 25323-34201 Pawl, Gear Shift, No.1 ( ) | Pawl, Gear Shift, No.1 ( ) | |
13 | 25324-34201 Pawl, Gear Shift, No.2 ( ) | Pawl, Gear Shift, No.2 ( ) | |
14 | 25331-10H00 Lifter, Gear Shift Pawl ( ) | Lifter, Gear Shift Pawl ( ) | |
15 | 09126-06011 Screw, Drive Shaft (6x12) (6x12 ) | Screw, Drive Shaft (6x12) (6x12 ) | |
16 | 09180-07014 Roller, Gear Cam Shifter ( ) | Roller, Gear Cam Shifter ( ) | |
17 | 09209-05023 Pin (5x8) ( ) | Pin (5x8) ( ) | |
18 | 09263-25018 Bearing (25x32x12) (25x32x12 ) | Bearing (25x32x12) (25x32x12 ) | |
19 | 09440-04003 Spring, Shift Pawl Return ( ) | Spring, Shift Pawl Return ( ) | |
20 | 08140-69050 Bearing, Rh ( ) | Bearing, Rh ( ) | |
21 | 25350-10H00 Stopper, Gear Shift Cam ( ) | Stopper, Gear Shift Cam ( ) | |
22 | 25355-10H01 Spring, Gear Shi ( ) | Spring, Gear Shi ( ) | |
23 | 25357-29F10 Bolt, Stopper ( ) | Bolt, Stopper ( ) | |
24 | 25381-10H00 Plate, Gear Shift Cam Stopper ( ) | Plate, Gear Shift Cam Stopper ( ) | |
25 | 08211-06121 Washer, Shift Cam ( ) | Washer, Shift Cam ( ) | |
26 | 25510-10H11 Shaft, Gear Shif ( ) | Shaft, Gear Shif ( ) | |
27 | 25671-10H00 Stopper, Gear Shift Arm ( ) | Stopper, Gear Shift Arm ( ) | |
28 | 09181-08139 Washer, Gear Shift Arm ( ) | Washer, Gear Shift Arm ( ) | |
29 | 09181-14139 Washer, Gear Shaft (14x22x6 ) | Washer, Gear Shaft (14x22x6 ) | |
30 | 09283-14006 Oil Seal (14x22x6) (14x22x6 ) | Oil Seal (14x22x6) (14x22x6 ) | |
31 | 09444-20005 Spring, Shift Return ( ) | Spring, Shift Return ( ) | |
32 | 08331-3114A Circlip ( ) | Circlip ( ) | |
33 | 25600-10H10 Lever Assy, Gear ( ) | Lever Assy, Gear ( ) | |
34 | 01547-06207 Bolt, Lower ( ) | Bolt, Lower ( ) | |
1 | 25211-10H10 Fork, Gear Shift ( ) | Fork, Gear Shift ( ) | |
2 | 25221-10H10 Fork, Gear Shift ( ) | Fork, Gear Shift ( ) | |
3 | 25231-10H10 Fork, Gear Shift ( ) | Fork, Gear Shift ( ) |
