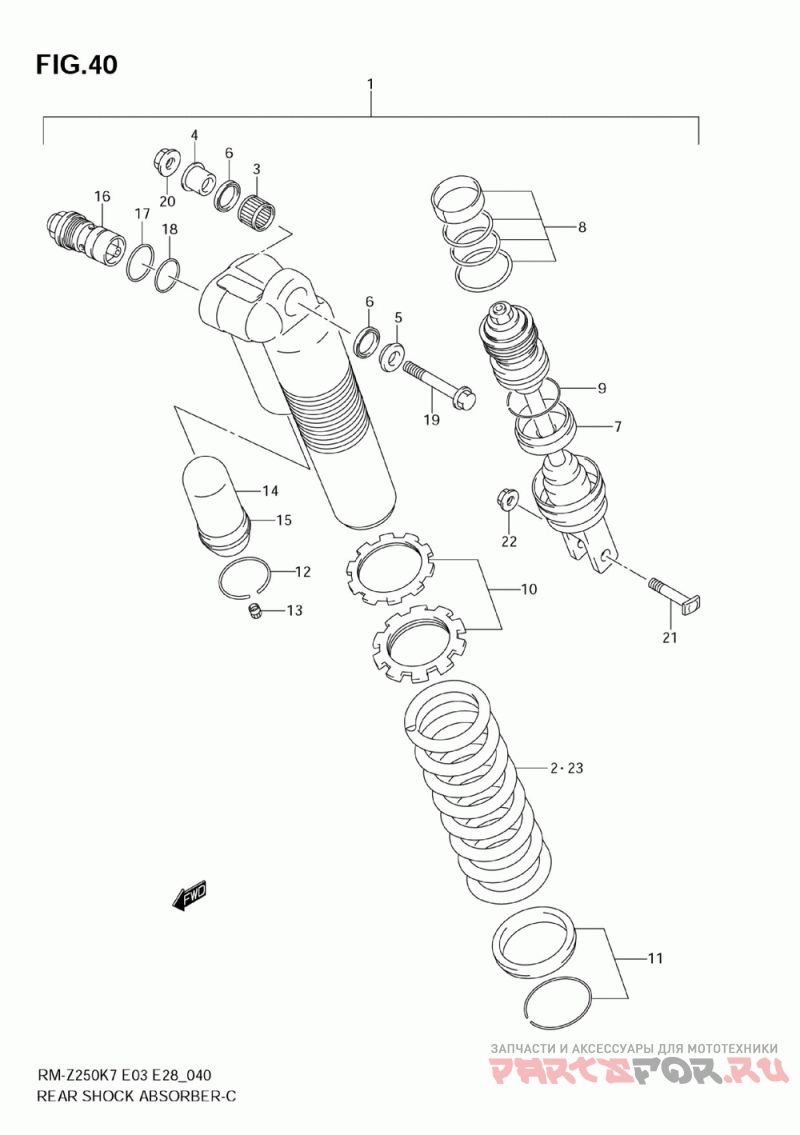

Задний амортизатор
Suzuki (Америка) RM-Z250
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 62100-10H20-YKS Absorber Assy, Rr Shock (red) (model K7 E3 ) | Absorber Assy, Rr Shock (red) (model K7 E3 ) | |
1-3 | 62100-10H50-YKS Absorber Assy, R (model K8/k9 E3 ) | Absorber Assy, R (model K8/k9 E3 ) | |
1-4 | 62100-10H40-YKS Abs Assy, Rear S (model K8/k9 E28 ) | Abs Assy, Rear S (model K8/k9 E28 ) | |
2 | 62211-10H00 Spring (k=5.4) ( ) | Spring (k=5.4) ( ) | |
3 | 09263-16033 .bearing (16x22x12) ( ) | .bearing (16x22x12) ( ) | |
4 | 62684-36F00 .spacer, Bearing Rh ( ) | .spacer, Bearing Rh ( ) | |
5 | 62685-36F00 .spacer, Bearing Lh ( ) | .spacer, Bearing Lh ( ) | |
6 | 09284-16005 Seal, Rear (16x22x2.5) ( ) | Seal, Rear (16x22x2.5) ( ) | |
7-1 | 62120-10H00 Spring (model K7 ) | Spring (model K7 ) | |
7-2 | 62120-10H30 Spring (model K8/k9 ) | Spring (model K8/k9 ) | |
8 | 62150-36EB0 .o Ring Set ( ) | .o Ring Set ( ) | |
9 | 62279-36E80 .ring, Stopper ( ) | .ring, Stopper ( ) | |
10 | 62190-36F00 .adjuster Set ( ) | .adjuster Set ( ) | |
11 | 62220-36F00 .spring Seat Set ( ) | .spring Seat Set ( ) | |
12 | 62278-36E00 .ring, Stopper ( ) | .ring, Stopper ( ) | |
13 | 52194-46686 .cap ( ) | .cap ( ) | |
14 | 62273-36F00 .bladder ( ) | .bladder ( ) | |
15-2 | 62275-10H30 Cap, Chamber (model K8/k9 ) | Cap, Chamber (model K8/k9 ) | |
16-1 | 62130-10H00 Bolt (model K7 ) | Bolt (model K7 ) | |
16-2 | 62130-10H30 Bolt (model K8/k9 ) | Bolt (model K8/k9 ) | |
17 | 62131-28E00 .o Ring, Outer ( ) | .o Ring, Outer ( ) | |
18-1 | 51174-43D00 .o Ring, Inner (model K7 ) | .o Ring, Inner (model K7 ) | |
18-2 | 51174-36EB0 .o Ring, Inner (model K8/k9 ) | .o Ring, Inner (model K8/k9 ) | |
19 | 09103-10329 Bolt ( ) | Bolt ( ) | |
20 | 09159-10115 Nut ( ) | Nut ( ) | |
21 | 62221-37F30 Bolt, Lower ( ) | Bolt, Lower ( ) | |
22 | 09159-10067 Nut, Lower ( ) | Nut, Lower ( ) | |
23-1 | 62211-10H20 Spring(k=5.0) (opt ) | Spring(k=5.0) (opt ) | |
23-2 | 62211-10H10 Spring (k=5.2) (opt ) | Spring (k=5.2) (opt ) | |
23-3 | 62211-37FM0 Spring (hard, K=5.6) (opt ) | Spring (hard, K=5.6) (opt ) | |
23-4 | 62211-35G30 .spring (k=5.7) (opt ) | .spring (k=5.7) (opt ) |
