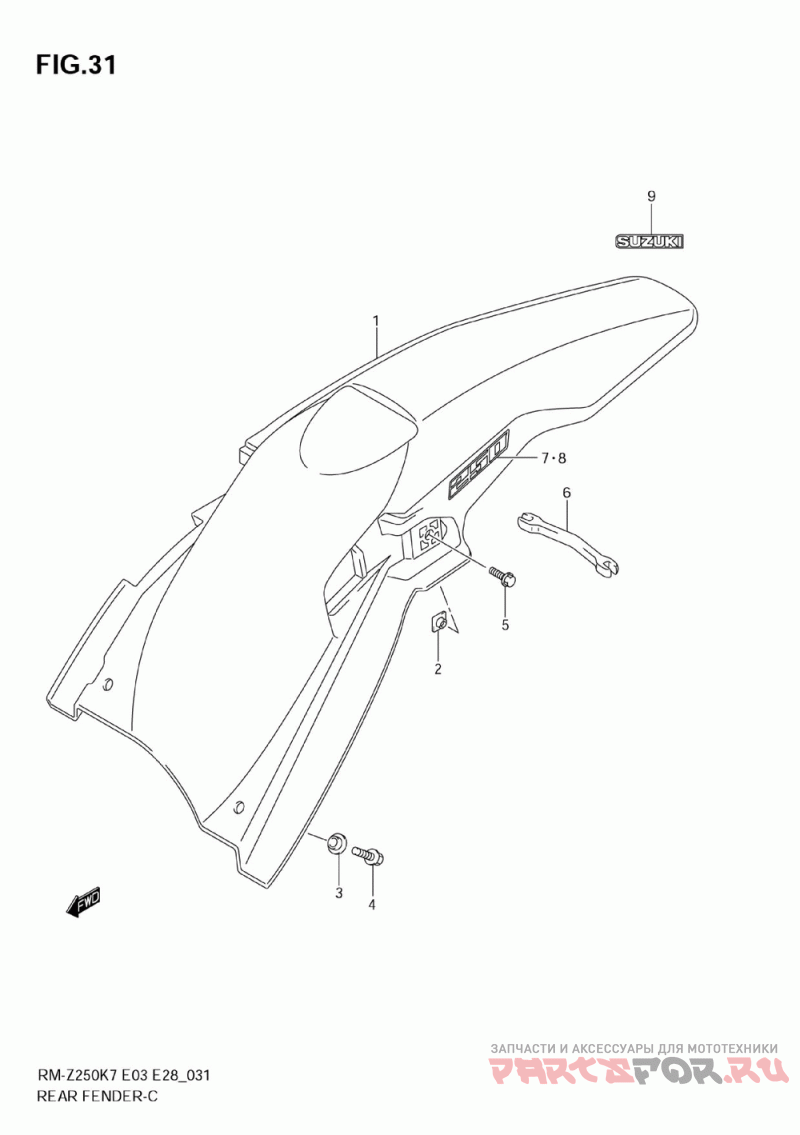

Заднее крыло
Suzuki (Америка) RM-Z250
| # | oem код | название | цена |
|---|---|---|---|
1 | 63111-10H01-YU1 Fender, Rear ( ) | Fender, Rear ( ) | |
2 | 09152-06024 Nut, Rear Fender ( ) | Nut, Rear Fender ( ) | |
3 | 69232-37F01 Washer ( ) | Washer ( ) | |
4 | 01547-06207 Bolt, Lower ( ) | Bolt, Lower ( ) | |
5 | 09103-06234 Bolt, Chain Guide ( ) | Bolt, Chain Guide ( ) | |
6 | 09813-00134 Open Spanner (6.4x6.8) ( ) | Open Spanner (6.4x6.8) ( ) | |
7 | 68175-10H00-GY8 Tape, Rh ( ) | Tape, Rh ( ) | |
8 | 68176-10H00-GY8 Tape, Lh ( ) | Tape, Lh ( ) | |
9 | 68721-13A00-GY8 Emblem, "suzuki" ( ) | Emblem, "suzuki" ( ) |
