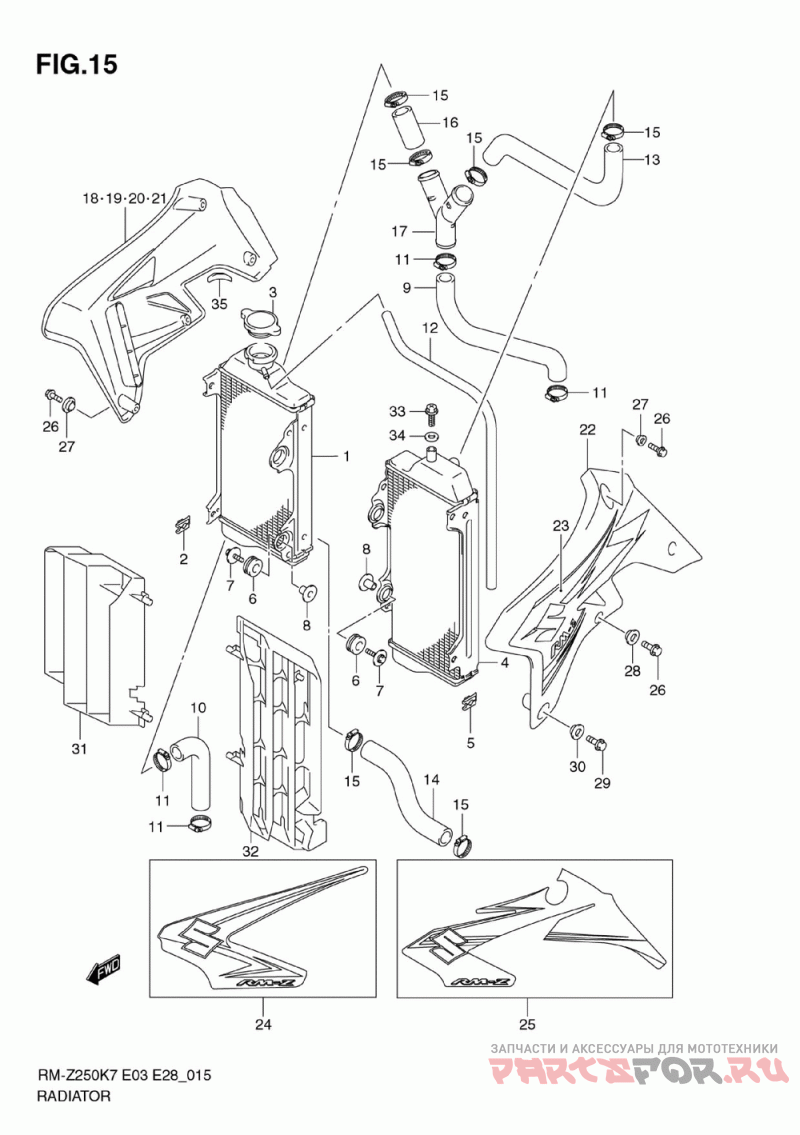

Радиатор
Suzuki (Америка) RM-Z250
| # | oem код | название | цена |
|---|---|---|---|
1 | 17710-10H00 Radiator, Rh ( ) | Radiator, Rh ( ) | |
2 | 09148-06015 Nut ( ) | Nut ( ) | |
3 | 17730-12C20 Cap, Radiator ( ) | Cap, Radiator ( ) | |
4 | 17720-10H00 Radiator, Lh ( ) | Radiator, Lh ( ) | |
6 | 17787-19A00 Cushion, Support ( ) | Cushion, Support ( ) | |
7 | 09116-06186 Bolt, Meter (6x25) ( ) | Bolt, Meter (6x25) ( ) | |
8 | 09180-06243 Spacer ( ) | Spacer ( ) | |
9 | 17851-10H00 Hose, Inlet ( ) | Hose, Inlet ( ) | |
10 | 17852-10H00 Hose, Outlet ( ) | Hose, Outlet ( ) | |
11 | 09402-28513 Clamp ( ) | Clamp ( ) | |
12 | 09351-50803-00B Hose, Overflow (l:1000->650 ) | Hose, Overflow (l:1000->650 ) | |
13 | 17853-10H00 Hose, Joint Upper No.1 ( ) | Hose, Joint Upper No.1 ( ) | |
14 | 17855-10H00 Hose, Joint Lower ( ) | Hose, Joint Lower ( ) | |
16 | 17854-10H00 Hose, Radiator Joint Upper ( No.2 ) | Hose, Radiator Joint Upper ( No.2 ) | |
17 | 17856-10H00 Joint, Radiator Hose ( ) | Joint, Radiator Hose ( ) | |
18 | 17761-10H00-YU1 Cover, Radiator, Rh (yellow) ( ) | Cover, Radiator, Rh (yellow) ( ) | |
19 | 68660-10H00-DRA Tape, Radiator Cover, Rh (model K7 ) | Tape, Radiator Cover, Rh (model K7 ) | |
20 | 68660-10H10-EMA Tape, Radiator C (model K8 ) | Tape, Radiator C (model K8 ) | |
21 | 68660-10H20-FYF Tape, Radiator C (model K9 ) | Tape, Radiator C (model K9 ) | |
22 | 17762-10H00-YU1 Cover, Radiator, Lh (yellow) ( ) | Cover, Radiator, Lh (yellow) ( ) | |
23 | 68670-10H00-DRA Tape, Radiator Cover, Lh (model K7 ) | Tape, Radiator Cover, Lh (model K7 ) | |
24 | 68670-10H10-EMA Tape, Radiator C (model K8 ) | Tape, Radiator C (model K8 ) | |
25 | 68670-10H20-FYF Tape, Radiator C (model K9 ) | Tape, Radiator C (model K9 ) | |
26 | 09103-06233 Bolt ( ) | Bolt ( ) | |
27 | 69232-37F01 Washer ( ) | Washer ( ) | |
28 | 47191-10H01 Washer ( ) | Washer ( ) | |
29 | 09103-06234 Bolt, Chain Guide ( ) | Bolt, Chain Guide ( ) | |
30 | 09180-06328 Spacer ( ) | Spacer ( ) | |
31 | 17831-10H00 Louver, Radiator, R ( ) | Louver, Radiator, R ( ) | |
32 | 17832-10H00 Louver, Radiator, L ( ) | Louver, Radiator, L ( ) | |
33 | 17568-50F00 Bolt, Air Release ( ) | Bolt, Air Release ( ) | |
34 | 09168-06026 Gasket, Drain Bolt ( ) | Gasket, Drain Bolt ( ) | |
35 | 17795-10H00 Cushion ( ) | Cushion ( ) | |
3 | 17730-08J00 Cap, Radiator ( ) | Cap, Radiator ( ) | |
5 | 09148-06015 Nut ( ) | Nut ( ) | |
15 | 09402-28513 Clamp ( ) | Clamp ( ) |
