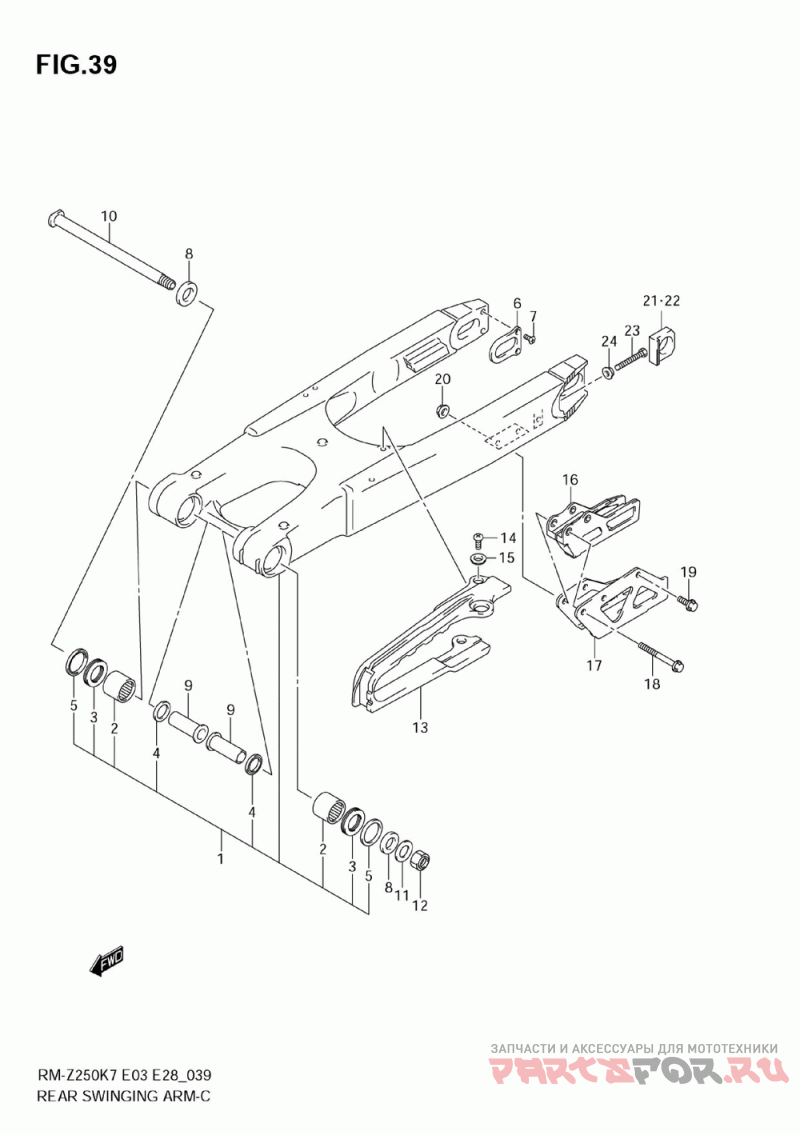

Маятник задний
Suzuki (Америка) RM-Z250
| # | oem код | название | цена |
|---|---|---|---|
1 | 61000-35G00 Swinging Arm Assy, Rear ( ) | Swinging Arm Assy, Rear ( ) | |
2 | 09263-22017 .bearing, Pivot (22x29x30) ( ) | .bearing, Pivot (22x29x30) ( ) | |
3 | 09263-22064 .bearing, Outer (22x35x2) ( ) | .bearing, Outer (22x35x2) ( ) | |
4 | 09285-22001 .seal, Inner (22x29x4) ( ) | .seal, Inner (22x29x4) ( ) | |
5 | 61262-36E00 .seal, Outer (29.2x37x4) ( ) | .seal, Outer (29.2x37x4) ( ) | |
6 | 61128-35G00 .plate, Swingingarm, Rear ( ) | .plate, Swingingarm, Rear ( ) | |
7 | 02122-0410A .screw, Plate ( ) | .screw, Plate ( ) | |
8 | 61251-36E01 Spacer, Pivot Outer ( ) | Spacer, Pivot Outer ( ) | |
9 | 61252-37F01 Spacer, Pivot Inner ( ) | Spacer, Pivot Inner ( ) | |
10 | 61211-35G00 Shaft, Pivot ( ) | Shaft, Pivot ( ) | |
11 | 08322-0116B Washer ( ) | Washer ( ) | |
12 | 09159-16007 Nut ( ) | Nut ( ) | |
13 | 61273-37F10 Buffer, Chain Touch Defense ( ) | Buffer, Chain Touch Defense ( ) | |
14 | 02112-0508B Screw ( ) | Screw ( ) | |
15 | 09169-05022 Washer ( ) | Washer ( ) | |
16 | 61341-35G10 Guide, Chain ( ) | Guide, Chain ( ) | |
17 | 61342-37F00 Plate, Guide Outer ( ) | Plate, Guide Outer ( ) | |
18 | 09103-06242 Bolt ( ) | Bolt ( ) | |
19 | 09103-06233 Bolt ( ) | Bolt ( ) | |
20 | 08316-1006B Nut ( ) | Nut ( ) | |
21-1 | 61445-35G00 Washer, Chain Adjuster, R (model K7 ) | Washer, Chain Adjuster, R (model K7 ) | |
21-2 | 61445-28H00 Washer, Chain Ad (model K8/k9 ) | Washer, Chain Ad (model K8/k9 ) | |
22-1 | 61446-35G00 Washer, Chain Adjuster, L (model K7 ) | Washer, Chain Adjuster, L (model K7 ) | |
22-2 | 61446-28H00 Washer, Chain Ad (model K8/k9 ) | Washer, Chain Ad (model K8/k9 ) | |
23 | 09100-08287 Bolt (8x50) ( ) | Bolt (8x50) ( ) | |
24 | 09159-08034 Nut ( ) | Nut ( ) | |
22-1 | 61446-35G01 Washer, Chain Ad (model K7 ) | Washer, Chain Ad (model K7 ) |
