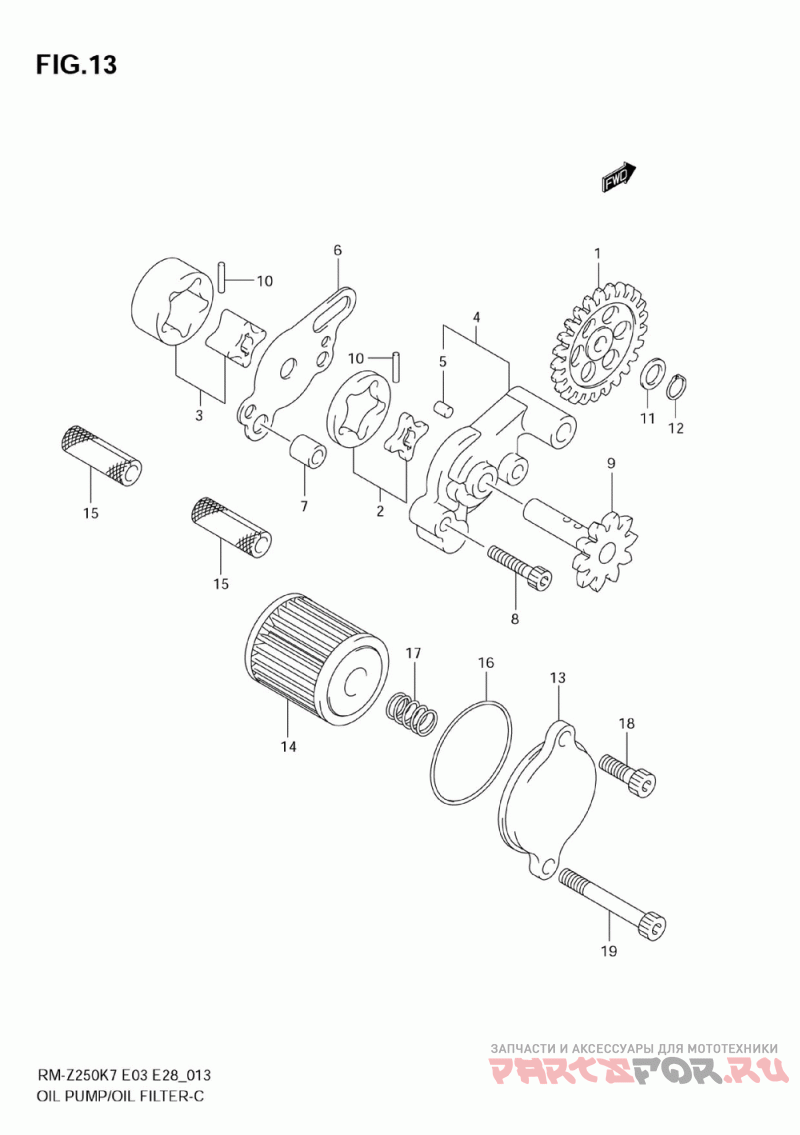

Масляный и водяной насос. фильтр масленый
Suzuki (Америка) RM-Z250
| # | oem код | название | цена |
|---|---|---|---|
1 | 16321-10H00 Gear, Oil Pump Idle ( ) | Gear, Oil Pump Idle ( ) | |
2 | 16410-10H00 Rotor Set, Oil Pump No.1 ( ) | Rotor Set, Oil Pump No.1 ( ) | |
3 | 16420-35G00 Rotor Set, Oil Pump No.2 ( ) | Rotor Set, Oil Pump No.2 ( ) | |
4 | 16430-10H00 Cover, Oil Pump No.1 ( ) | Cover, Oil Pump No.1 ( ) | |
5 | 04221-04089 Pin ( ) | Pin ( ) | |
6 | 16432-10H00 Plate, Oil Pump No.1 ( ) | Plate, Oil Pump No.1 ( ) | |
7 | 04211-09109 Pin ( ) | Pin ( ) | |
8 | 07130-0520B Bolt ( ) | Bolt ( ) | |
9 | 16440-10H00 Shaft, Oil Pump Driven Gear ( ) | Shaft, Oil Pump Driven Gear ( ) | |
10 | 09261-02008 Pin ( ) | Pin ( ) | |
11 | 09181-08186 Washer ( ) | Washer ( ) | |
12 | 08331-3108A Circlip ( ) | Circlip ( ) | |
13 | 16315-35G10 Cap, Eng Oil Filter Outer ( ) | Cap, Eng Oil Filter Outer ( ) | |
14 | 16510-35G00 Filter, Eng Oil ( ) | Filter, Eng Oil ( ) | |
15 | 16520-10H00 Strainer, Oil ( ) | Strainer, Oil ( ) | |
16 | 09280-39001 O Ring, D:2.0, Id:38.5 ( ) | O Ring, D:2.0, Id:38.5 ( ) | |
17 | 09440-10038 Spring, Oil Filter Cap ( ) | Spring, Oil Filter Cap ( ) | |
18 | 09103-06234 Bolt, Chain Guide ( ) | Bolt, Chain Guide ( ) | |
19 | 09103-06252 Bolt ( ) | Bolt ( ) |
