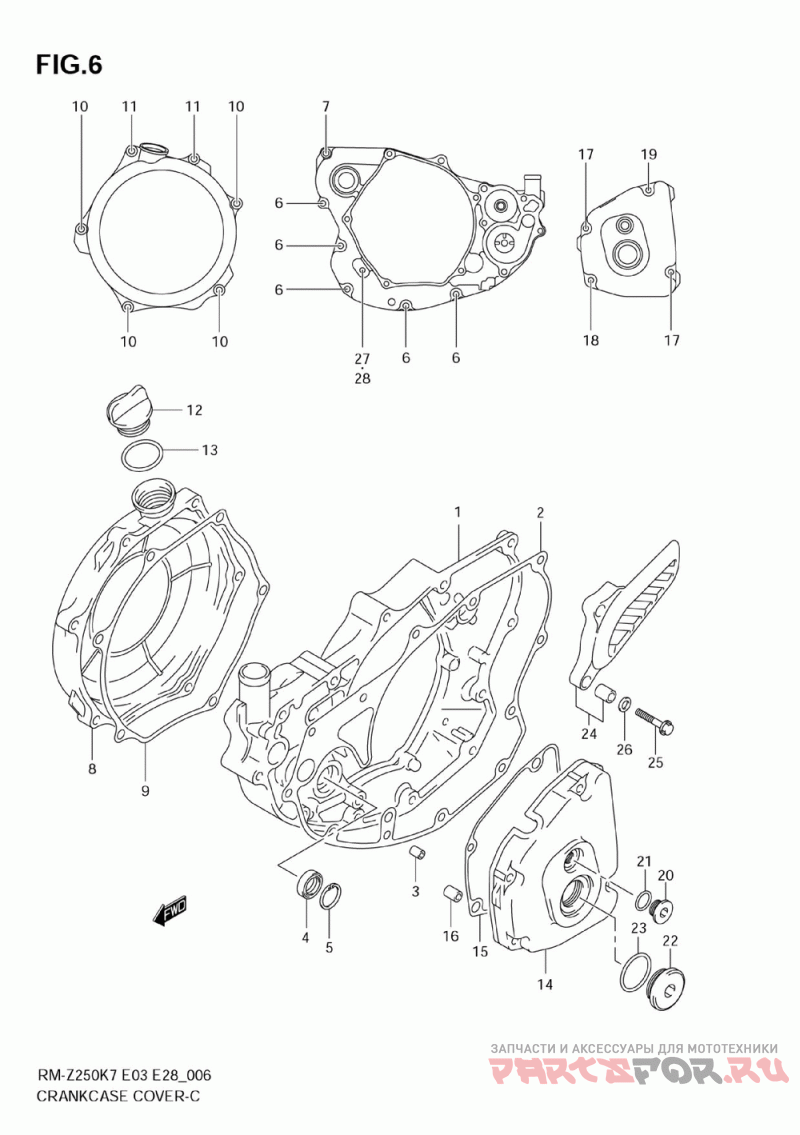

Крышки картера
Suzuki (Америка) RM-Z250
| # | oem код | название | цена |
|---|---|---|---|
1 | 11340-10H00 Cover, Clutch Inner ( ) | Cover, Clutch Inner ( ) | |
2 | 11482-10H00 Gasket, Clutch Cover ( ) | Gasket, Clutch Cover ( ) | |
3 | 04211-09109 Pin ( ) | Pin ( ) | |
4 | 09282-12012 Seal, Oil ( ) | Seal, Oil ( ) | |
5 | 08331-4124A Circlip ( ) | Circlip ( ) | |
6 | 01547-0625A Bolt, Belt Cooling Duct ( ) | Bolt, Belt Cooling Duct ( ) | |
7 | 01547-0630A Bolt, Magneto Cover ( ) | Bolt, Magneto Cover ( ) | |
8 | 11371-10H00 Cover, Clutch Outer ( ) | Cover, Clutch Outer ( ) | |
9 | 11484-10H00 Gasket, Clutch Cover Outer ( ) | Gasket, Clutch Cover Outer ( ) | |
11 | 01547-0660A Bolt ( ) | Bolt ( ) | |
12 | 09259-20008-XC0 Plug ( ) | Plug ( ) | |
13 | 09280-17003 O Ring, Oil Filler Cap ( ) | O Ring, Oil Filler Cap ( ) | |
14 | 11351-10H00 Cover, Magneto ( ) | Cover, Magneto ( ) | |
15 | 11483-10H00 Gasket, Magneto Cover ( ) | Gasket, Magneto Cover ( ) | |
18 | 01547-0635A Bolt, Crankcase (6x35) ( ) | Bolt, Crankcase (6x35) ( ) | |
19-1 | 09103-06252 Bolt (model K7 ) | Bolt (model K7 ) | |
19-2 | 01547-0640A Bolt (model K8/k9 ) | Bolt (model K8/k9 ) | |
20 | 29248-93J00 Plug ( ) | Plug ( ) | |
21 | 09280-10016 .o Ring ( ) | .o Ring ( ) | |
22 | 09259-26011 Plug ( ) | Plug ( ) | |
23 | 09280-22008 O Ring (d:3.1, Id:22.7) ( ) | O Ring (d:3.1, Id:22.7) ( ) | |
24 | 11360-35G00 Cover, Engine Sprocket ( ) | Cover, Engine Sprocket ( ) | |
26 | 08322-0106B Washer ( ) | Washer ( ) | |
27 | 07120-0610B Bolt ( ) | Bolt ( ) | |
28 | 09168-06004 Gasket (6.2x11x1.2) ( ) | Gasket (6.2x11x1.2) ( ) | |
10 | 01547-0625A Bolt ( ) | Bolt ( ) | |
16 | 04211-09109 Dowel Pin ( ) | Dowel Pin ( ) | |
17 | 01547-0630A Bolt ( ) | Bolt ( ) | |
20 | 09248-12007 Plug ( ) | Plug ( ) | |
25 | 01547-0630A Bolt ( ) | Bolt ( ) |
