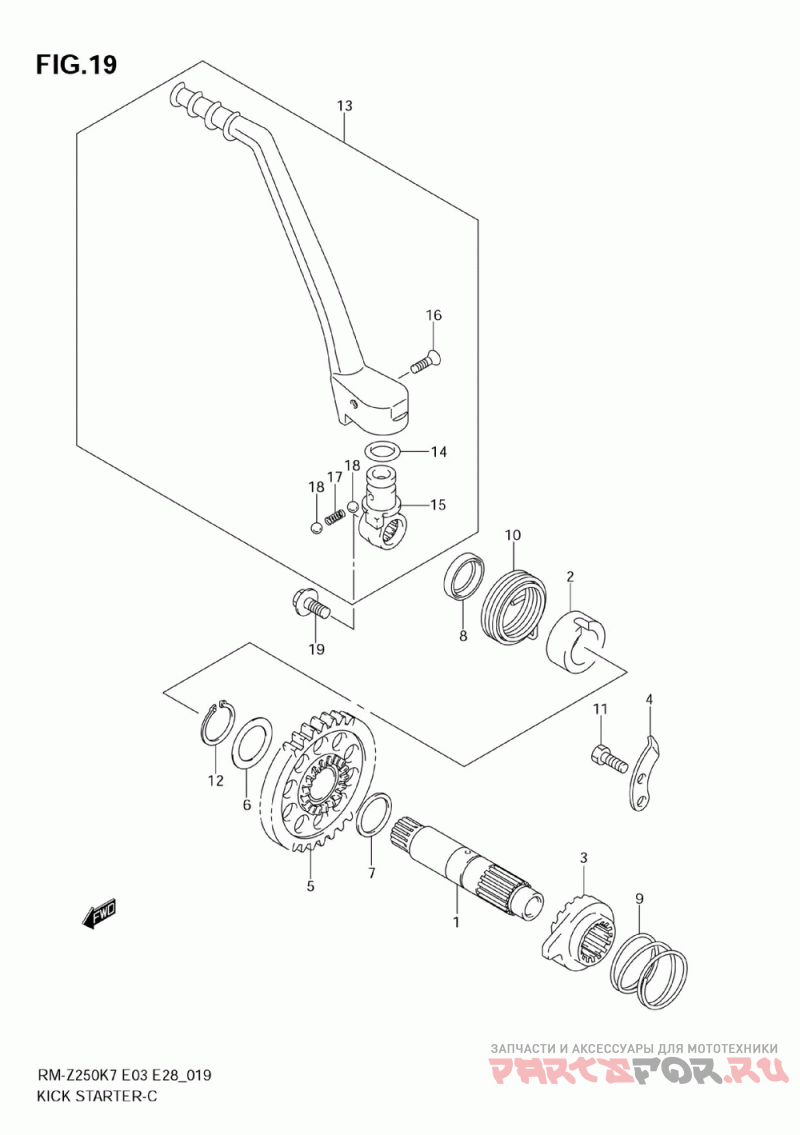

Кик стартер
Suzuki (Америка) RM-Z250
| # | oem код | название | цена |
|---|---|---|---|
1 | 26211-10H00 Shaft, Kick Starter ( ) | Shaft, Kick Starter ( ) | |
2 | 26221-10H00 Guide, Kick Starter Sft Sprin ( ) | Guide, Kick Starter Sft Sprin ( ) | |
3 | 26231-10H00 Starter, Kick ( ) | Starter, Kick ( ) | |
4 | 26232-10H00 Guide, Kick Starter ( ) | Guide, Kick Starter ( ) | |
5 | 26240-10H00 Gear, Kick Starter Drive ( ) | Gear, Kick Starter Drive ( ) | |
6 | 09181-18005 Washer, Kick Starter Gear (18x26x0.5 ) | Washer, Kick Starter Gear (18x26x0.5 ) | |
7 | 09181-18004 Washer, Kick Starter Oil Seal (18x22x1.0 ) | Washer, Kick Starter Oil Seal (18x22x1.0 ) | |
8 | 09283-18004 Seal, Kick Starter Shaft Oil (18x30x8.0 ) | Seal, Kick Starter Shaft Oil (18x30x8.0 ) | |
9 | 09440-31002 Spring ( ) | Spring ( ) | |
10 | 09448-45014 Spring, Kick Starter Shaft ( ) | Spring, Kick Starter Shaft ( ) | |
11 | 01500-0612B Bolt ( ) | Bolt ( ) | |
12 | 08331-3118A Circlip ( ) | Circlip ( ) | |
13 | 26300-10H00 Lever Assy, Kick Starter ( ) | Lever Assy, Kick Starter ( ) | |
14 | 26313-28E20 .o Ring ( ) | .o Ring ( ) | |
15 | 26331-10H00 .joint, Kick Starter Lever ( ) | .joint, Kick Starter Lever ( ) | |
16 | 09127-06024 .screw, Kick Starter Lever (6x27.5 ) | .screw, Kick Starter Lever (6x27.5 ) | |
17 | 09440-05031 .spring, Kick Starter Lever ( ) | .spring, Kick Starter Lever ( ) | |
18 | 06111-07004 Ball, Detent No.1 ( ) | Ball, Detent No.1 ( ) | |
19 | 09103-08340 Bolt, Kick Starter Lever (8x14 ) | Bolt, Kick Starter Lever (8x14 ) |
