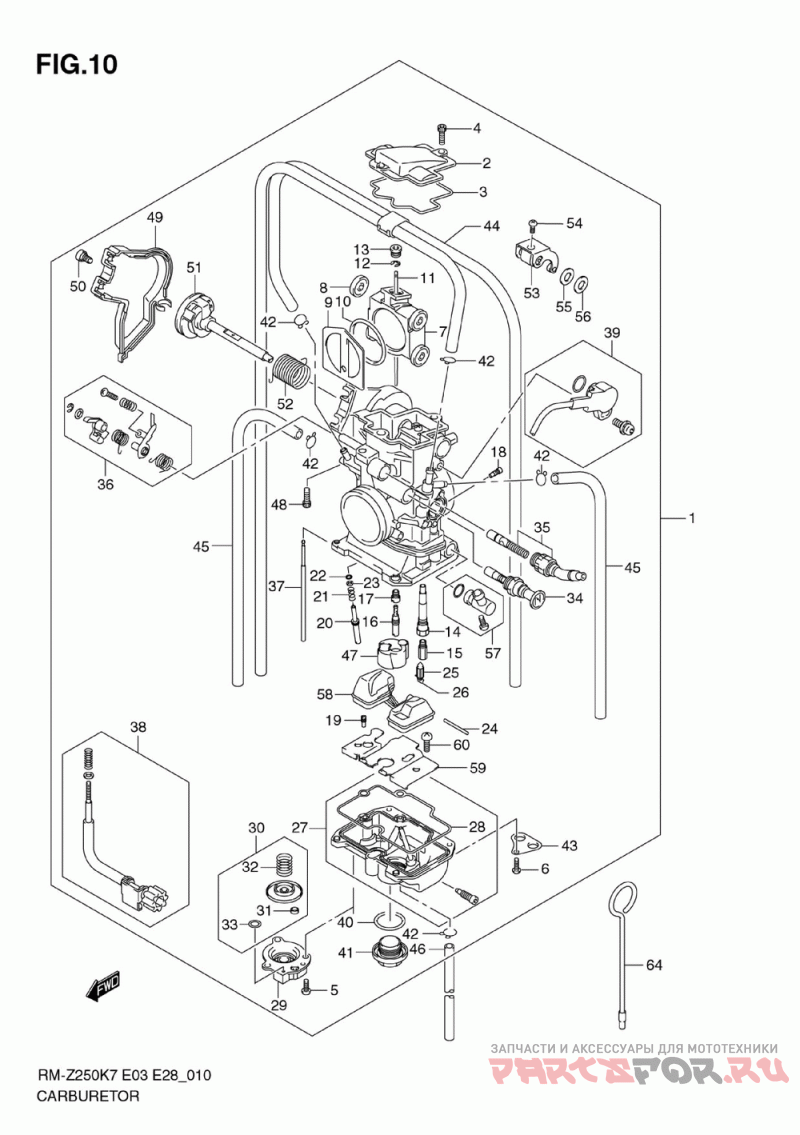

Карбюратор
Suzuki (Америка) RM-Z250
| # | oem код | название | цена |
|---|---|---|---|
1-1 | 13200-10H00 Carburetor Assy (model K7 E3 ) | Carburetor Assy (model K7 E3 ) | |
1-3 | 13200-10H20 Carburetor Assy (model K8/k9 E3 ) | Carburetor Assy (model K8/k9 E3 ) | |
2 | 13261-35G00 .top ( ) | .top ( ) | |
3 | 13266-35G00 .o Ring ( ) | .o Ring ( ) | |
4 | 13612-29F10 .bolt (4x12) ( ) | .bolt (4x12) ( ) | |
5 | 13602-43E00 .screw ( ) | .screw ( ) | |
6 | 13602-35G00 .screw ( ) | .screw ( ) | |
7 | 13551-35G01 .throttle Valve ( ) | .throttle Valve ( ) | |
8 | 13570-29F00 .bearing ( ) | .bearing ( ) | |
9 | 13555-35G00 .floating Valve ( ) | .floating Valve ( ) | |
10 | 13559-29F00 .lip Seal ( ) | .lip Seal ( ) | |
11-1 | 13383-10H40 Needle, Jet (nlct) (model K7 Model K8/k9 E3 ) | Needle, Jet (nlct) (model K7 Model K8/k9 E3 ) | |
11-2 | 13383-10H50 Needle, Jet (nldt) (model K8/k9 E28 ) | Needle, Jet (nldt) (model K8/k9 E28 ) | |
12 | 13394-29F00 .bar Clip ( ) | .bar Clip ( ) | |
13 | 13600-35G00 .screw Set, Jet Needle ( ) | .screw Set, Jet Needle ( ) | |
14 | 13342-35G00 .main, Nozzle ( ) | .main, Nozzle ( ) | |
15-1 | 09491-32011 Jet, Main (162) (e3 ) | Jet, Main (162) (e3 ) | |
15-2 | 09491-34010 Jet, Main (170) (e28 ) | Jet, Main (170) (e28 ) | |
16-1 | 09492-45032 Jet, Pilot (45) (model K7 ) | Jet, Pilot (45) (model K7 ) | |
16-2 | 09492-42019 Jet, Pilot (42) (model K8/k9 ) | Jet, Pilot (42) (model K8/k9 ) | |
17 | 09492-35G00 .jet, Starter ( ) | .jet, Starter ( ) | |
18 | 09492-35G10 .jet, Slow Air ( ) | .jet, Slow Air ( ) | |
19-1 | 09492-40025 .jet, Acc (model K7 Model K8/k9 E3 ) | .jet, Acc (model K7 Model K8/k9 E3 ) | |
19-2 | 09492-45039 Jet, Power (45) (model K8/k9 E28 ) | Jet, Power (45) (model K8/k9 E28 ) | |
20-1 | 13279-29F00 .screw, Adjust (1,1/2) (model K7 Model K8/k9 E3 ) | .screw, Adjust (1,1/2) (model K7 Model K8/k9 E3 ) | |
21 | 13271-29F00 .spring ( ) | .spring ( ) | |
22 | 13295-26E00 O Ring ( ) | O Ring ( ) | |
23 | 13291-26E00 Washer ( ) | Washer ( ) | |
24 | 13254-26E00 .pin ( ) | .pin ( ) | |
25 | 13370-29F00 .valve, Float ( ) | .valve, Float ( ) | |
26 | 13375-26E00 .clip ( ) | .clip ( ) | |
27 | 13250-10H00 .float Chamber Body Set ( ) | .float Chamber Body Set ( ) | |
28 | 13251-35G00 ..o Ring ( ) | ..o Ring ( ) | |
29 | 13488-29F00 .cover ( ) | .cover ( ) | |
30 | 13480-10H00 .diaphragm Set ( ) | .diaphragm Set ( ) | |
31 | 13497-14F00 .u Ring ( ) | .u Ring ( ) | |
32 | 13494-15F00 .spring ( ) | .spring ( ) | |
33 | 13673-26E10 .o Ring ( ) | .o Ring ( ) | |
34 | 13410-35G20 .starter Valve ( ) | .starter Valve ( ) | |
35 | 13410-10H00 .starter Valve ( ) | .starter Valve ( ) | |
36 | 13490-35G10 .lever Set, Pump ( ) | .lever Set, Pump ( ) | |
37 | 13487-35G00 .rod ( ) | .rod ( ) | |
38 | 13270-35G00 .screw Set ( ) | .screw Set ( ) | |
39 | 13580-35G00 .sensor Set, Throttle ( ) | .sensor Set, Throttle ( ) | |
40 | 13246-28E00 .o Ring ( ) | .o Ring ( ) | |
41 | 13247-10H00 .bolt, Drain ( ) | .bolt, Drain ( ) | |
42 | 09401-06101 Clip ( ) | Clip ( ) | |
43 | 13693-36E00 .binder ( ) | .binder ( ) | |
44 | 13680-35G00 .pipe Set, Bowl Vent ( ) | .pipe Set, Bowl Vent ( ) | |
45 | 13686-35G00 .pipe ( ) | .pipe ( ) | |
46 | 13684-35G00 .pipe ( ) | .pipe ( ) | |
47 | 13257-10H00 .plate, Buffer ( ) | .plate, Buffer ( ) | |
48 | 13296-10H00 .screw ( ) | .screw ( ) | |
49 | 13311-35G00 .cover ( ) | .cover ( ) | |
50 | 13312-35G00 .bolt ( ) | .bolt ( ) | |
51 | 13550-35G01 .throttle Shaft ( ) | .throttle Shaft ( ) | |
52 | 13573-35G00 .spring ( ) | .spring ( ) | |
53 | 13564-35G00 .link Arm ( ) | .link Arm ( ) | |
54 | 13605-35G00 .screw ( ) | .screw ( ) | |
55 | 13572-29F00 .washer ( ) | .washer ( ) | |
56 | 13574-35G00 .washer ( ) | .washer ( ) | |
57 | 13670-35G00 .joint Set ( ) | .joint Set ( ) | |
58 | 13240-35G00 .float ( ) | .float ( ) | |
59 | 13258-10H00 Plate, Buffer ( ) | Plate, Buffer ( ) | |
60 | 13605-10H00 Screw ( ) | Screw ( ) | |
61-1 | 09491-30018 Jet, Main (150) (opt Not Shown ) | Jet, Main (150) (opt Not Shown ) | |
61-2 | 09491-30019 Jet, Main (152) (opt Not Shown ) | Jet, Main (152) (opt Not Shown ) | |
61-3 | 09491-31012 Jet, Main (155) (opt Not Shown ) | Jet, Main (155) (opt Not Shown ) | |
61-4 | 09491-31013 Jet, Main (158) (opt Not Shown ) | Jet, Main (158) (opt Not Shown ) | |
61-5 | 09491-32010 Jet, Main (160) (opt Not Shown ) | Jet, Main (160) (opt Not Shown ) | |
61-7 | 09491-33009 Jet, Main (165) (opt Not Shown ) | Jet, Main (165) (opt Not Shown ) | |
61-8 | 09491-33010 Jet, Main (168) (opt Not Shown ) | Jet, Main (168) (opt Not Shown ) | |
61-10 | 09491-34011 Jet, Main (172) (opt Not Shown ) | Jet, Main (172) (opt Not Shown ) | |
61-11 | 09491-35009 Jet, Main (175) (opt Not Shown ) | Jet, Main (175) (opt Not Shown ) | |
61-12 | 09491-35010 Jet, Main (178) (opt Not Shown ) | Jet, Main (178) (opt Not Shown ) | |
61-13 | 09491-36008 Jet, Main (180) (opt Not Shown ) | Jet, Main (180) (opt Not Shown ) | |
61-14 | 09491-37008 Jet, Main (185) (opt Not Shown ) | Jet, Main (185) (opt Not Shown ) | |
61-15 | 09491-38011 Jet, Main (190) (opt Not Shown ) | Jet, Main (190) (opt Not Shown ) | |
62-1 | 09492-35019 Jet, Pilot (35) (opt Not Shown ) | Jet, Pilot (35) (opt Not Shown ) | |
62-2 | 09492-40022 Jet, Pilot (40) (opt Not Shown ) | Jet, Pilot (40) (opt Not Shown ) | |
62-5 | 09492-48013 Jet, Pilot (48) (opt Not Shown ) | Jet, Pilot (48) (opt Not Shown ) | |
62-6 | 09492-50023 Jet, Pilot (50) (opt Not Shown ) | Jet, Pilot (50) (opt Not Shown ) | |
62-7 | 09492-52011 Jet, Pilot (52) (opt Not Shown ) | Jet, Pilot (52) (opt Not Shown ) | |
62-8 | 09492-55017 Jet, Pilot (55) (opt Not Shown ) | Jet, Pilot (55) (opt Not Shown ) | |
62-9 | 09492-58001 Jet, Pilot (58) (opt Not Shown ) | Jet, Pilot (58) (opt Not Shown ) | |
62-10 | 09492-60016 Jet, Pilot (60) (opt Not Shown ) | Jet, Pilot (60) (opt Not Shown ) | |
63-1 | 13383-10H00 Needle, Jet (nlcr) (opt Not Shown ) | Needle, Jet (nlcr) (opt Not Shown ) | |
63-2 | 13383-10H10 Needle, Jet (nldr) (opt Not Shown ) | Needle, Jet (nldr) (opt Not Shown ) | |
63-3 | 13383-10H20 Needle, Jet (nlcs) (opt Not Shown ) | Needle, Jet (nlcs) (opt Not Shown ) | |
63-4 | 13383-10H30 Needle, Jet (nlds) (opt Not Shown ) | Needle, Jet (nlds) (opt Not Shown ) | |
63-7 | 13383-10H60 Needle, Jet (nlcu) (opt Not Shown ) | Needle, Jet (nlcu) (opt Not Shown ) | |
63-8 | 13383-10H70 Needle, Jet (nldu) (opt Not Shown ) | Needle, Jet (nldu) (opt Not Shown ) | |
63-9 | 13383-10H80 Needle, Jet (nlcv) (opt Not Shown ) | Needle, Jet (nlcv) (opt Not Shown ) | |
63-10 | 13383-10H90 Needle, Jet (nldv) (opt Not Shown ) | Needle, Jet (nldv) (opt Not Shown ) | |
64 | 13220-35G00 Holder, Jet Needle (opt ) | Holder, Jet Needle (opt ) | |
61-6 | 09491-32011 Jet, Main, 162 (opt Not Shown ) | Jet, Main, 162 (opt Not Shown ) | |
61-9 | 09491-34010 Jet, Main(170) (opt Not Shown ) | Jet, Main(170) (opt Not Shown ) | |
62-3 | 09492-42019 Jet, Slow, 42 (opt Not Shown ) | Jet, Slow, 42 (opt Not Shown ) | |
62-4 | 09492-45032 Jet,slow, 45 (opt Not Shown ) | Jet,slow, 45 (opt Not Shown ) | |
63-5 | 13383-10H40 Needle, Jet (opt Not Shown ) | Needle, Jet (opt Not Shown ) | |
63-6 | 13383-10H50 Needle, Jet (opt Not Shown ) | Needle, Jet (opt Not Shown ) |
