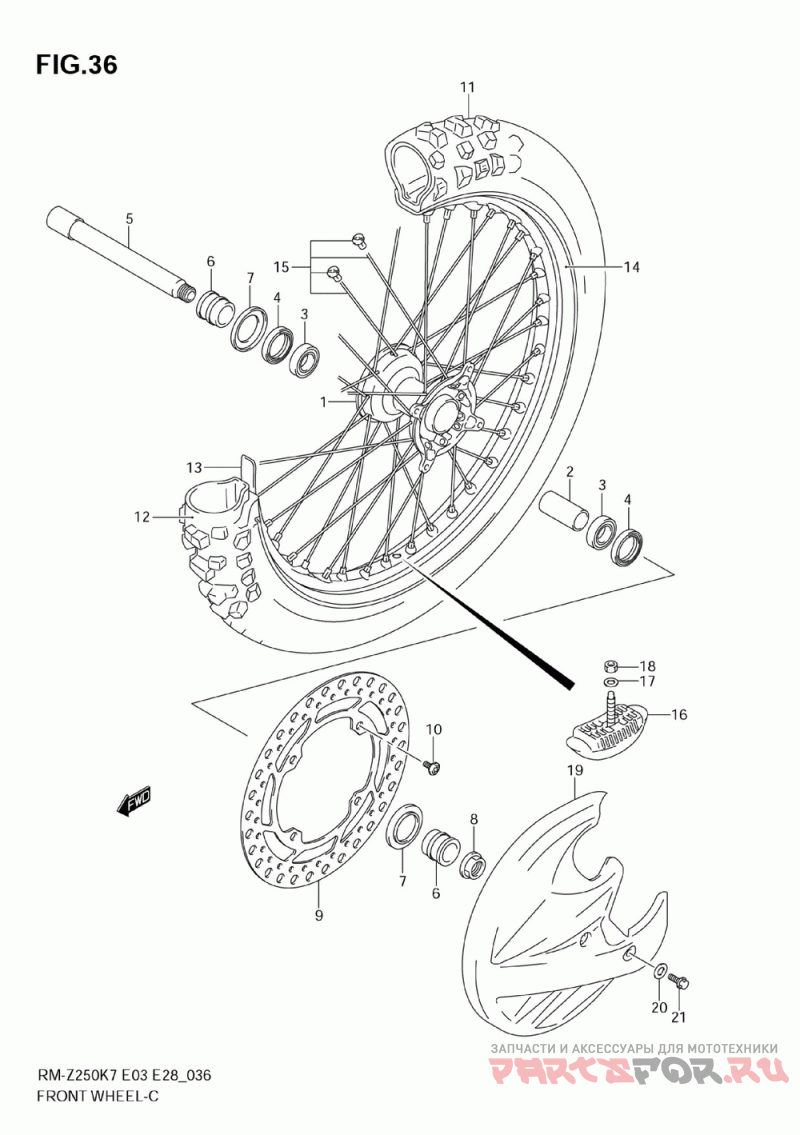

Front wheel (model k7)
Suzuki (Америка) RM-Z250
| # | oem код | название | цена |
|---|---|---|---|
1 | 54111-35G01 Hub, Front Wheel ( ) | Hub, Front Wheel ( ) | |
2 | 54731-35G00 Spacer, Front Hub ( (20.5x27.3x50) ) | Spacer, Front Hub ( (20.5x27.3x50) ) | |
3 | 09262-22034 Bearing ( ) | Bearing ( ) | |
4 | 09283-30073 Seal, Front Hub ( ) | Seal, Front Hub ( ) | |
5 | 54711-35G00 Axle, Front ( ) | Axle, Front ( ) | |
6 | 54741-35G00 Spacer, Axle (l:41) ( ) | Spacer, Axle (l:41) ( ) | |
7 | 54742-35G00 Cover, Front Axle Spacer ( ) | Cover, Front Axle Spacer ( ) | |
8 | 09159-18016 Nut ( ) | Nut ( ) | |
9 | 59221-35G10 Disc, Front Brake ( ) | Disc, Front Brake ( ) | |
10 | 09139-06142 Screw ( ) | Screw ( ) | |
11 | 55110-10H00 Tire, Front (80/100-21) ( (dunlop) ) | Tire, Front (80/100-21) ( (dunlop) ) | |
12 | 55200-29F00 Tube Assy, Wheel Inner ( ) | Tube Assy, Wheel Inner ( ) | |
13 | 55261-44AF0 Protector, Inner Tube ( ) | Protector, Inner Tube ( ) | |
14 | 55311-10H00 Rim, Front Wheel (1.60x21) ( ) | Rim, Front Wheel (1.60x21) ( ) | |
15 | 55320-35G10 Spoke Set, Front Wheel ( ) | Spoke Set, Front Wheel ( ) | |
16 | 65270-14300 Stopper, Bead ( ) | Stopper, Bead ( ) | |
17 | 08322-0108A Washer, Seat Damper Upper ( ) | Washer, Seat Damper Upper ( ) | |
18 | 08310-0008A Nut ( ) | Nut ( ) | |
19 | 59231-36E30-YU1 Cover, Front Brake Disc (opt ) | Cover, Front Brake Disc (opt ) | |
20 | 59232-36E30 Washer, Front Brake Disc Cove (opt ) | Washer, Front Brake Disc Cove (opt ) | |
21 | 09103-06232 Bolt (opt Refer To Fig.36a(f- 8) For Model K8/k9 ) | Bolt (opt Refer To Fig.36a(f- 8) For Model K8/k9 ) |
