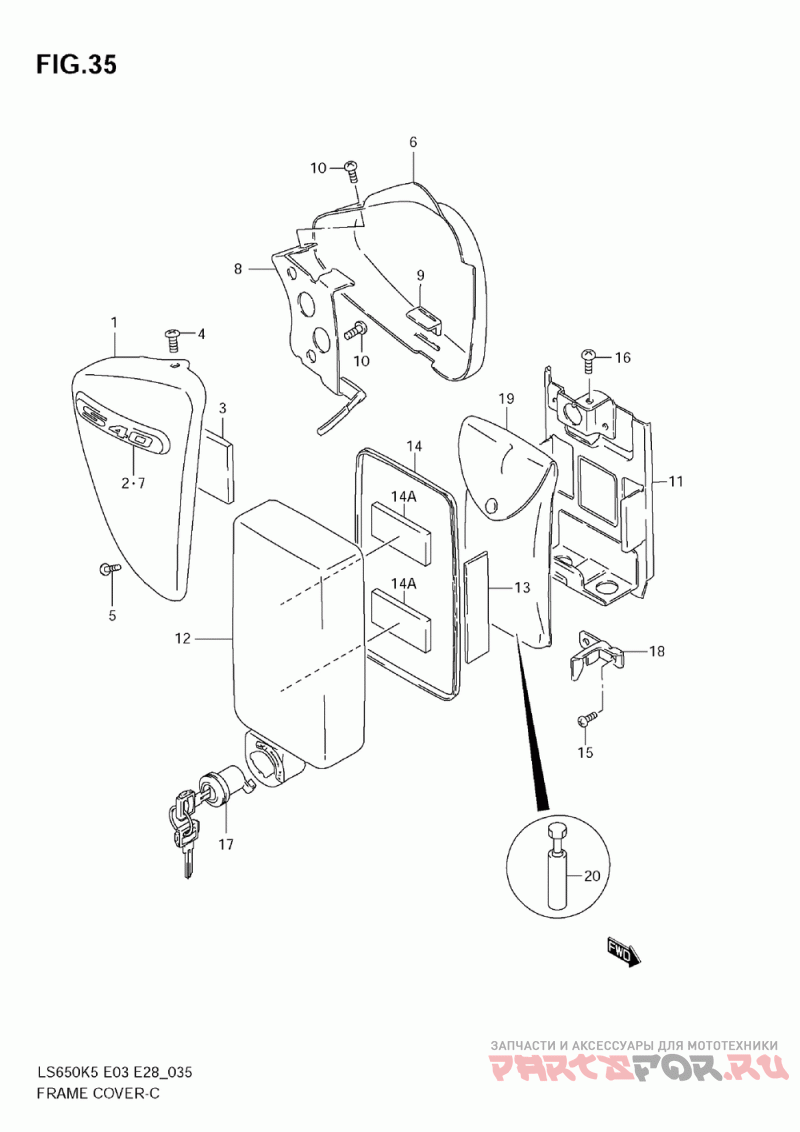

Frame cover (model k5/k6/k7/k8)

Suzuki (Америка) LS650 Boulevard S40

Suzuki (Америка)
#oem кодцена
1-1
47100-24CA0-YAY
Деталь Cover, Frame Rh (black)
1-2
47100-24CA0-YC3
Деталь Cover, Frame Rh (white) (model K5)
1-3
47100-24CA0-YDV
Деталь Cover, Frame Rh (silver) (model K6)
1-4
47100-24CA0-YHL
Деталь Cover, Frame Rh (red) (model K6/k8)
1-6
47100-24CA0-YBA
Деталь Cover, Frame Rh (blue) (model K7)
1-7
47100-24CA0-YMD
Деталь Cover Assy, Fram (model K8)
2
68131-24CA0
Деталь .emblem
3
13719-84150
Деталь .cushion
4
02142-0510B
Винт
6-1
47200-24CA0-YAY
Деталь Cover, Frame Lh (black)
6-2
47200-24CA0-YC3
Деталь Cover, Frame Lh (white) (model K5)
6-3
47200-24CA0-YDV
Деталь Cover, Frame Lh (silver) (model K6)
6-4
47200-24CA0-YHL
Деталь Cover, Frame Lh (red) (model K6/k8)
6-6
47200-24CA0-YBA
Деталь Cover, Frame Lh (blue) (model K7)
6-7
47200-24CA0-YMD
Деталь Cover Assy, Fram (model K8)
8
47180-24B03
Деталь Bracket, Frame Cover Lh
9
47117-45000
Деталь Cushion, Lh
10
02122-0612B
Винт
11
47430-24B01
Деталь Holder, Tool
12-1
47440-24B10
Деталь Cover, Tool Holder (model K5/k6)
12-2
47440-24B20
Деталь Cover, Tool Hold (model K7/k8)
13
33652-07D00
Деталь Cushion, Control (80x80x2)
14
47445-24B00
Деталь .molding
14A
33652-31F00
Деталь Cushion, Tool Holder
16
02112-0610B
Деталь Screw ( Refer To Fig.35a(f- 4) For Model K9 )
17
95700-24871
Деталь Lock Set, Tool H
18
47434-24B00
Пластина
19-1
09800-21012
Деталь Tool Assy (model K5/k6)
19-2
09800-21055
Деталь Tool Assy (model K7/k8)
20
96220-24B00
Деталь Gauge Assy, Tension ( Refer To Fig.35a(f- 4) For Model K9 )
5
02112-7516B
Винт
7
68131-24CA0
Деталь Emblem, Frame Co
15
02142-0510B
Винт
1-5
47100-24CA0-YC3
Деталь Cover Assy, Fram (model K7)
6-5
47200-24CA0-YC3
Деталь Cover Assy, Fram (model K7)
12-1
47440-24B20
Деталь Cover, Tool Hold (model K5/k6)
