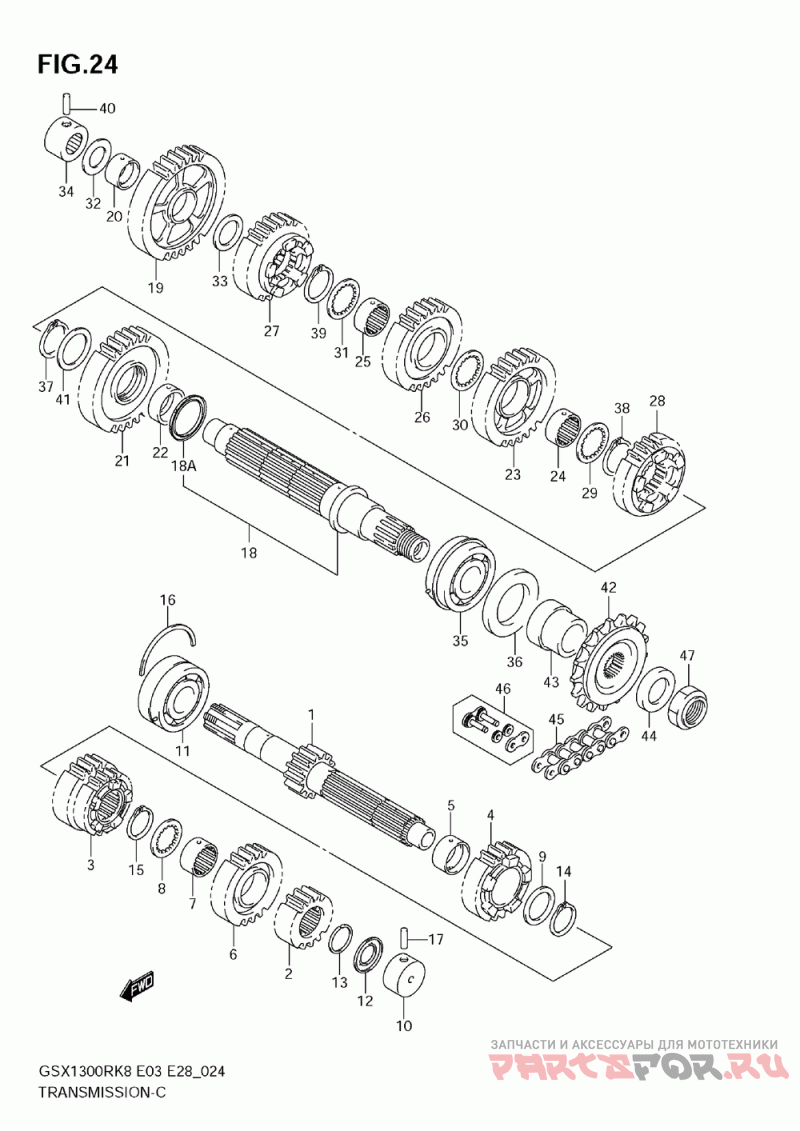

Трансмиссия

Suzuki (Америка) GSX1300R Hayabusa

Suzuki (Америка)
#oem кодцена
1
24120-24F00
Shaft, Counter (nt:13)
2
24221-15H00
Gear, 2nd Drive
3
24231-15H00
Gear, 3rd & 4th (nt:19/21)
4
24251-15H00
Gear, 5th Drive
5
24252-24F10
Bush, 5th Drive
6
24261-15H00
Gear, 6th Drive
7
24262-24F10
Bush, 4th Drive
8
09167-27003
Washer, 6th Drive
9
09181-27014
Washer, 5th Drive (27x36x2.5)
10
09263-20085
Bearing, Center Shaft Lh (20x34x17.5)
11
09267-25012
Bearing, Center Shaft Rh (25x62x25.4)
12
09285-20006
Seal, Oil (20x31.2x2.7)
13
09380-27004
Circlip, 2nd Drive
14
09380-27006
Circlip, 5th & 6th Drive
16
09390-62012
C Ring, Cntr Shaft Brg Rh
17
04221-07209
Pin, Drive Shaft Brg Rh
18
24130-15H00
Вал ведущий
18A
24136-48G01
Ring Drive Shft
19
24311-15H00
Gear, 1st Driven
20
24312-24F10
Bush, 1st Driven
21
24321-15H00
Gear, 2nd Driven
22
24322-48G00
Bush, 2nd Driven Gear
23
24331-15H00
Gear, 3rd Driven
24
24332-24F10
Bush, 3rd & 4th Driven
26
24341-15H00
Gear, 4th Driven
27
24351-15H00
Gear, 5th Driven
28
24361-15H00
Gear, 6th Driven
29
09167-30008
Washer, 3rd Driven Gear Lh
32
09181-20251
Shim (t:1.0) (20x34x1.0)
33
09181-24005
Washer, 1st Driven Lh (24x34x1.0)
34
09263-20040
Bearing, Drive Shaft Rh (20x34x20)
35
09267-30011
Bearing, Drive Shaft Lh (30x62x23.8)
36
09283-42018
Seal, Drive Shaf (42x62x7)
37
09380-30009
Circlip, 2nd Driven
41
08211-30405
Washer, 2nd Driven Gear Rh
42
27510-15H00
Sprocket, Engine
43
27531-15H00
Spacer, Engine S
44
27532-15H00
Spacer, Engine S (27.2x42x6.5)
45
27600-24F60-118
Chain Assy, Driv (rk Gb50gsvz4 L:118->114 )
46
27620-24F60
Joint Set, Chain (opt)
47
09159-22008
Гайка
4
24251-15H01
Gear, 5th Drive
15
09380-27006
Пружинное стопорное кольцо
25
24332-24F10
Bush, 3rd Driven
30
09167-30008
Washer, 30x38x2
31
09167-30008
Washer, 30x38x2
38
09380-30009
Пружинное стопорное кольцо
39
09380-30009
Пружинное стопорное кольцо
40
04221-07209
Штифт
