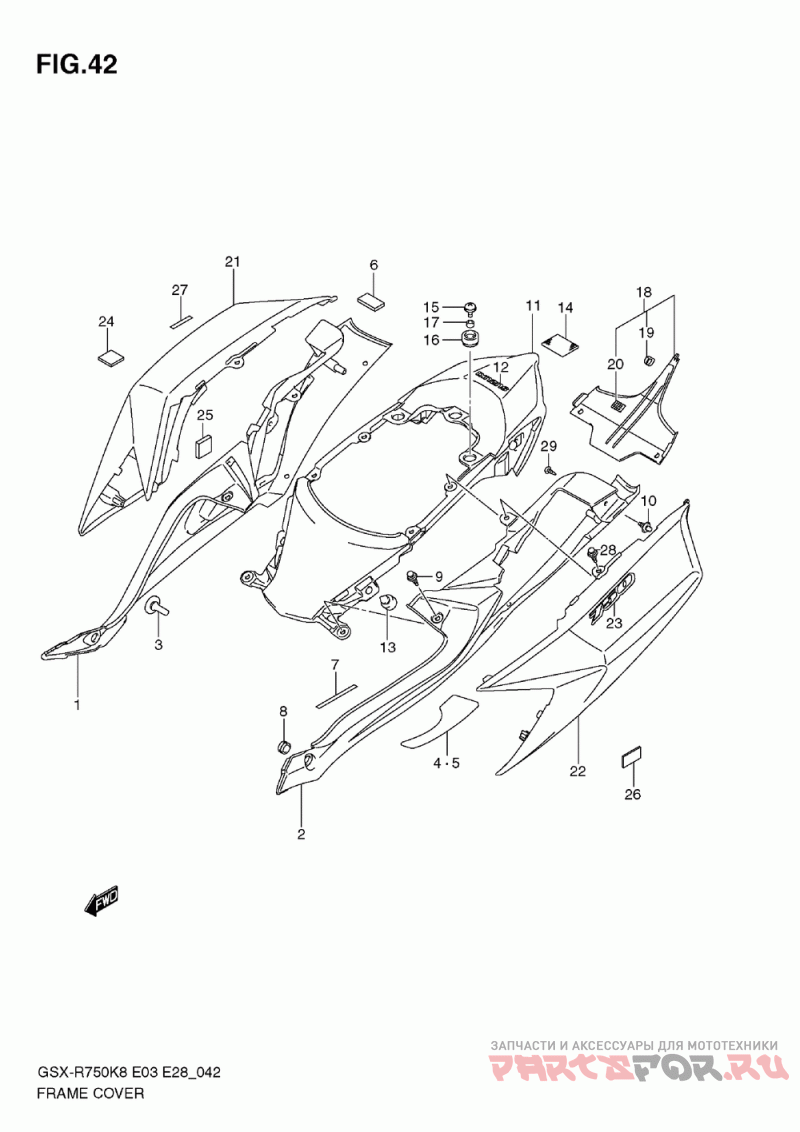

Frame cover (model k8)

Suzuki (Америка) GSX-R750

Suzuki (Америка)
#oem кодцена
1-1
47110-37H00-019
Cover Comp, Fram (for Cru)
1-2
47110-37H00-YBD
Cover Comp, Fram (for Cwh)
1-3
47110-37H00-YLF
Cover Comp, Fram (for Ece)
2-1
47210-37H00-019
Cover Comp, Fram (for Cru)
2-2
47210-37H00-YBD
Cover Comp, Fram (for Cwh)
2-3
47210-37H00-YLF
Cover Comp, Fram (for Ece)
3
09321-06026
Подушка
4
47112-37H00
Tape, Frame Cove
5
47212-37H00
Tape, Frame Cove
6
47114-37H00
Cushion, Frame C
7
47115-37H00
Tape, Frame Cove
8
47113-37H00
Cushion, Frame C
9
09409-06328
Зажим
10
09409-06314-5PK
Клипса (черн.)
11-1
47310-37H00-019
Cover Comp, Fram (for Cru)
11-2
47310-37H00-YKY
Cover Comp, Fram (for Cwh)
11-3
47310-37H00-1PX
Cover Comp, Fram (for Ece)
12-1
68131-21H00-YU8
Emblem(gray) (for 019)
12-2
68131-21H00-YBD
Emblem, "suzuki" (for Yky)
12-3
68131-21H00-YD8
Emblem, "suzuki" (for 1px)
13
09321-10002
.cushion
14
44572-13G10
Fastener, Rear C
15
09136-06056
Screw, Mud Guard
16
47312-37H00
Cushion, Frame C
17
09180-06283
Spacer (6.5x10x7)
18-1
47910-37H00-019
Cover Comp, Fram (for Cru)
18-2
47910-37H00-YKY
Cover Comp, Fram (for Cwh, Ece)
19
47913-37H00
Cushion, Frame C
20
47912-37H00
Fastener, Frame ( Refer To Fig.42a(f-12) For Model K9 )
21-1
47710-38H00-YKV
Cover Comp, Fram (for Cru)
21-2
47710-38H00-YKY
Cover Comp, Fram (for Cwh)
21-3
47710-38H00-YME
Cover Comp, Fram (for Ece)
22-1
47810-38H00-YKV
Cover Comp, Fram (for Cru)
22-2
47810-38H00-YKY
Cover Comp, Fram (for Cwh)
22-3
47810-38H00-YME
Cover Comp, Fram (for Ece)
23-1
68131-38H00-J7A
Emblem, Frame Co (for Ykv)
23-2
68131-38H00-FND
Emblem, Frame Co (for Yky)
23-3
68131-38H00-CTY
Emblem, Frame Co (for Yme)
24
47712-37H00
Cushion, Cover
25
47713-37H00
Cushion, Side
26
45516-01H00
.cushion, Rr
27
45517-16G00
.tape, Seat Tail Cover
29
03541-0512A
Screw ( Refer To Fig.42a(f-12) For Model K9 )
28
09409-06328
Зажим
