Подножки для мотоциклов Suzuki (Америка) GSX-R750 (2009)

Москва и регионы России

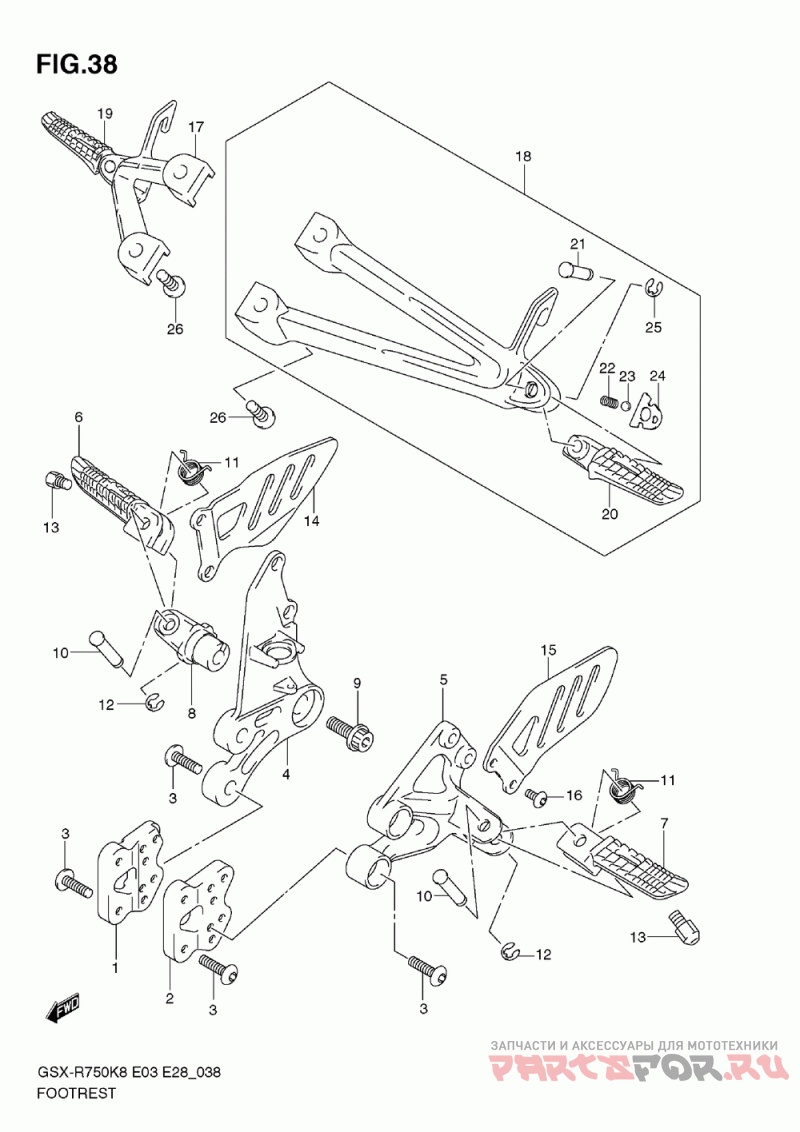

Подножки

Suzuki (Америка) GSX-R750

Подножки

#

oem код

название

цена

1

Bracket, Front Footrest No.1

Bracket, Front Footrest No.1

2

Bracket, Front N

Bracket, Front N

3

Bolt, 8x23

Bolt, 8x23

4

Bracket, Front N

Bracket, Front N

5

Bracket, Front Footrest No.2

Bracket, Front Footrest No.2

6

Bar, Front Footr

Bar, Front Footr

7

Bar, Front Footr

Bar, Front Footr

8

Holder, Footrest Bar Rh

Holder, Footrest Bar Rh

9

Bolt, Holder

Bolt, Holder

10

Штифт

Штифт

11

Пружина

Пружина

12

E Ring, Pinion

E Ring, Pinion

13

Болт

Болт

14

Guard, Footrest Rh

Guard, Footrest Rh

15

Guard, Footrest Lh

Guard, Footrest Lh

16

Screw, Lh

Screw, Lh

17-1

43600-37H00-13L

Footrest, Pillio (model K8)

Footrest, Pillio (model K8)

17-2

43600-37H00-YAP

Footrest Assy, P (model K9)

Footrest Assy, P (model K9)

18-1

43700-37H00-13L

Footrest, Pillio (model K8)

Footrest, Pillio (model K8)

18-2

43700-37H00-YAP

Footrest Assy, P (model K9)

Footrest Assy, P (model K9)

19

Bar, Pillion Foo

Bar, Pillion Foo

20

Bar, Pillion Foo

Bar, Pillion Foo

21

Штифт

Штифт

22

Пружина

Пружина

23

Ball, Detent No.1

Ball, Detent No.1

24

Пластина

Пластина

14

Guard, Front Foo

Guard, Front Foo

15

Guard, Front Foo

Guard, Front Foo

24

Plate, Pillion F

Plate, Pillion F

25

E Ring

E Ring

26

Bolt, 8x23

Bolt, 8x23
