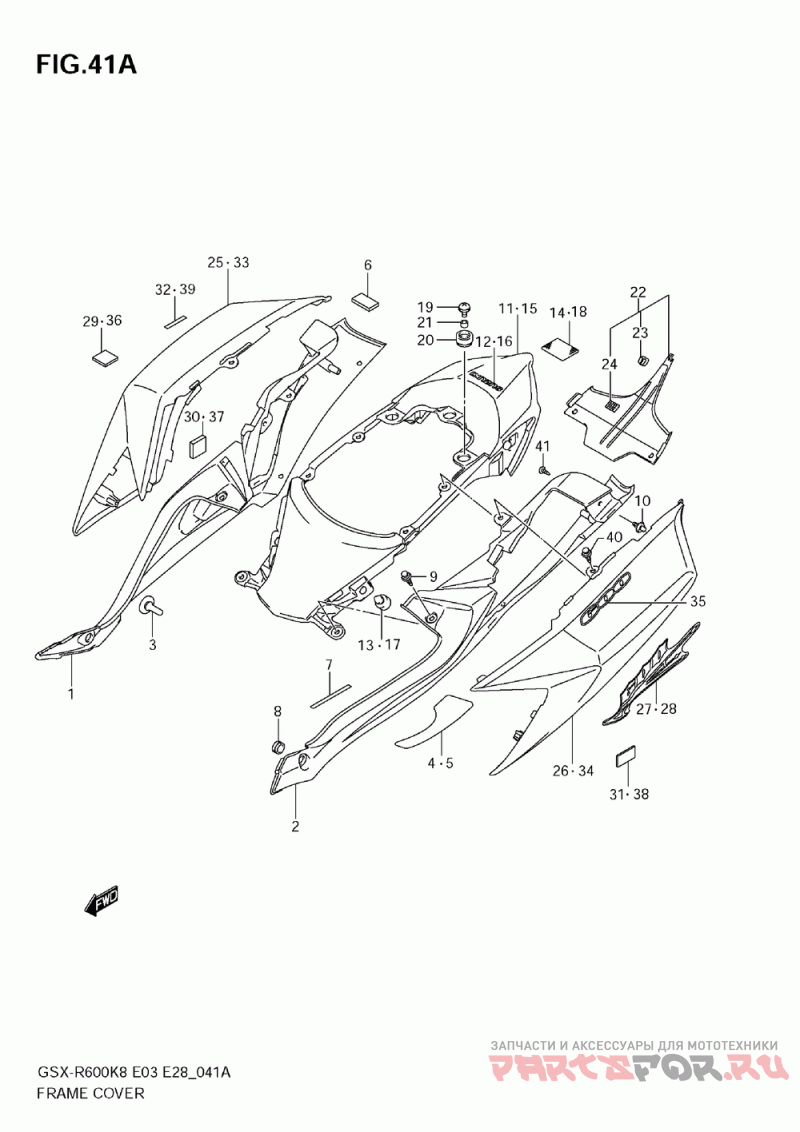

Frame cover (model k9)

Suzuki (Америка) GSX-R600

Suzuki (Америка)
#oem кодцена
1-1
47110-37H00-019
Cover Comp, Fram (for 019)
1-2
47110-37H00-YPA
Cover Comp, Fram (for Ypa)
1-3
47110-37H00-YKV
Cover Comp, Fram (for Ece)
1-4
47110-37H00-YBD
Cover Comp, Fram (for Glr)
2-1
47210-37H00-019
Cover Comp, Fram (for 019)
2-2
47210-37H00-YPA
Cover Comp, Fram (for Ypa)
2-3
47210-37H00-YKV
Cover Comp, Fram (for Ece)
2-4
47210-37H00-YBD
Cover Comp, Fram (for Glr)
3
09321-06026
Подушка
4
47112-37H00
Tape, Frame Cove
5
47212-37H00
Tape, Frame Cove
6
47114-37H00
Cushion, Frame C
7
47115-37H00
Tape, Frame Cove
8
47113-37H00
Cushion, Frame C
9
09409-06328
Зажим
10
09409-06314-5PK
Клипса (черн.)
11
47310-37HA0-YKV
Cover Comp, Fram (for 019)
12
68131-37HA0-GTT
Emblem, "suzuki"
13
09321-10002
.cushion
14
44572-13G10
Fastener, Rear C
15-1
47310-37H00-5WX
Cover, Frame Cen (for Ypa)
15-2
47310-37H00-YME
Cover Comp, Fram (for Ece)
15-3
47310-37H00-YSF
Cover Comp, Fram (for Glr)
16-1
68131-21H00-YLC
Emblem, "suzuki" (for 5wx)
16-2
68131-21H00-019
Emblem, "suzuki" (for Yme)
16-3
68131-21H00-YBD
Emblem, "suzuki" (for Ysf)
19
09136-06056
Screw, Mud Guard
20
47312-37H00
Cushion, Frame C
21
09180-06283
Spacer (6.5x10x7) ( : Glr=ybd(white), Ysf(blue) )
22-1
47910-37H00-YKV
Cover Comp, Fram (for 019)
22-2
47910-37H00-YPA
Cover Comp, Fram (for Ypa)
22-3
47910-37H00-YME
(for Ece)
22-4
47910-37H00-YSF
Cover Comp, Fram (for Glr)
23
47913-37H00
Cushion, Frame C
24
47912-37H00
Fastener, Frame
25-1
47710-37HA0-019
Cover Comp, Fram (for 019)
25-2
47710-37HA0-YPA
Cover Comp, Fram (for Ypa)
26-1
47810-37HA0-019
Cover Comp, Fram (for 019)
26-2
47810-37HA0-YPA
Cover Comp, Fram (for Ypa)
27-1
68135-37HA0-GTR
Tape, Frame Cove (for 019)
27-2
68135-37HA0-GTS
Tape, Frame Cove (for Ypa)
28-1
68145-37HA0-GTR
Tape, Frame Cove (for 019)
28-2
68145-37HA0-GTS
Tape, Frame Cove (for Ypa)
29
47712-37H00
Cushion, Cover
30
47713-37H00
Cushion, Side
31
45516-01H00
.cushion, Rr
32
45517-16G00
.tape, Seat Tail Cover
33-1
47710-37H00-019
Cover Comp, Fram (for Ece)
33-2
47710-37H00-YSF
Cover Comp, Fram (for Glr)
34-1
47810-37H00-019
Cover Comp, Fram (for Ece)
34-2
47810-37H00-YSF
Cover Comp, Fram (for Glr)
35-1
68131-37H00-GTW
Emblem, Frame Co (for 019)
35-2
68131-37H00-LV8
Emblem, Frame Co (for Ysf)
41
03541-0512A
Screw ( : Glr=ybd(white), Ysf(blue) )
17
09321-10002
Стопор
18
44572-13G10
Fastener, Rear C
36
47712-37H00
Cushion, Cover
37
47713-37H00
Cushion, Side
38
45516-01H00
Cushion, Seat Ta
39
45517-16G00
Tape, Seat Tail
40
09409-06328
Зажим
