Сцепление для мотоциклов Suzuki (Америка) GSX-R600 (2009)

Москва и регионы России

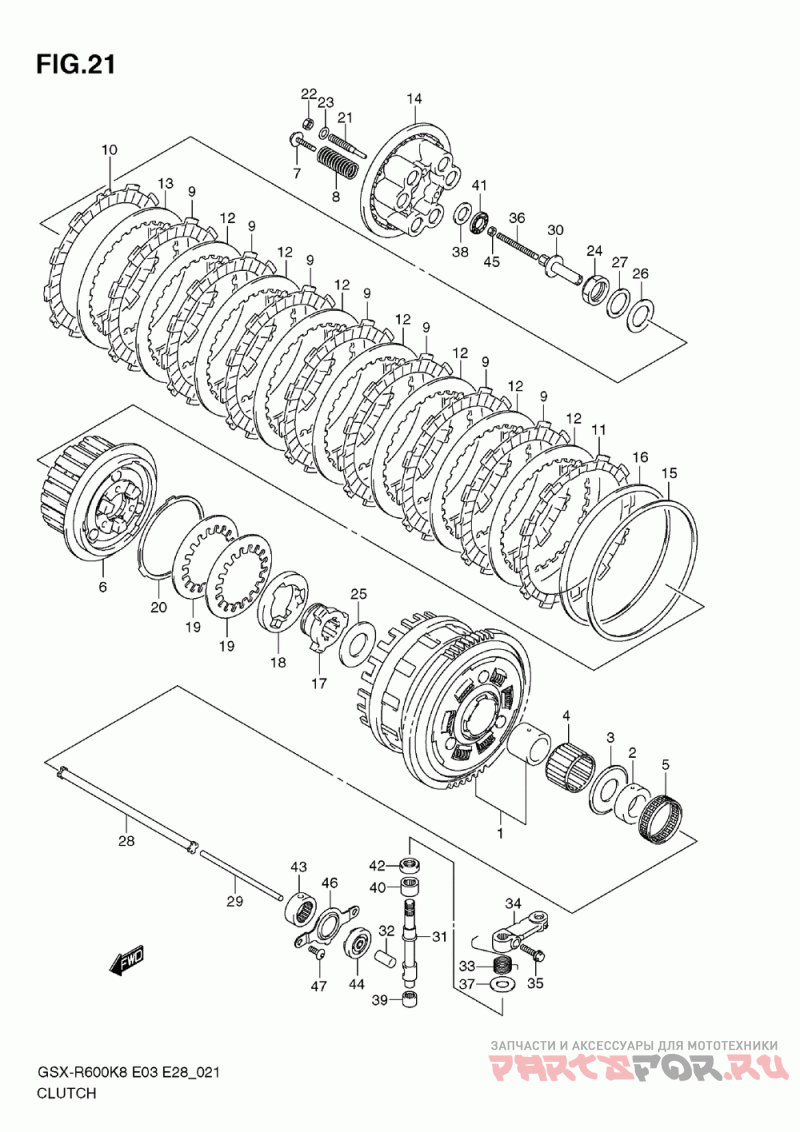

Сцепление

Suzuki (Америка) GSX-R600

Сцепление

#

oem код

название

цена

1

Gear Assy, Primr (nt:77)

Gear Assy, Primr (nt:77)

2

Spacer, Oil Pump

Spacer, Oil Pump

3

Washer (25x54x2.4)

Washer (25x54x2.4)

4

Bearing (35x40x26.8)

Bearing (35x40x26.8)

5

Bearing, 35x40x

Bearing, 35x40x

6

Hub, Clutch Sle

Hub, Clutch Sle

7

Bolt, Clutch Spring

Bolt, Clutch Spring

8

Пружина

Пружина

9

Plate, Clutch Drive No.1

Plate, Clutch Drive No.1

10

Plate, Clutch Drive

Plate, Clutch Drive

11

Plate, Clutch Drive No.3

Plate, Clutch Drive No.3

12

Plate, Clutch Driven No.1 (t:2.0)

Plate, Clutch Driven No.1 (t:2.0)

13

Plate, Clutch Driven No.2 (t:1.6)

Plate, Clutch Driven No.2 (t:1.6)

14

Disc, Clutch Pressure

Disc, Clutch Pressure

15

Seat, Wave Washer

Seat, Wave Washer

16

Washer, Clutch Plate Wave

Washer, Clutch Plate Wave

17

Cam, Clutch Dri

Cam, Clutch Dri

18

Cam, Clutch Driven

Cam, Clutch Driven

19

Washer, Cam Reaction Wave

Washer, Cam Reaction Wave

20

Washer, Cam Reaction Seat

Washer, Cam Reaction Seat

21

Lifter, Clutch Pressure Disc

Lifter, Clutch Pressure Disc

22

Nut, Cl Press Disc

Nut, Cl Press Disc

23

Washer, Gear Shift Arm

Washer, Gear Shift Arm

24

Nut, Clutch Sleeve Hub

Nut, Clutch Sleeve Hub

25

Washer (25x50x25) (25x50x2.5)

Washer (25x50x25) (25x50x2.5)

26

Washer (24.2x35x2) (24.2x35x2)

Washer (24.2x35x2) (24.2x35x2)

27

Washer, Sleeve Hub Nut (25x41x2.50)

Washer, Sleeve Hub Nut (25x41x2.50)

28

Rod, Push Rh

Rod, Push Rh

29

Rod, Clutch Push Lh

Rod, Clutch Push Lh

30

Piece, Clutch Push

Piece, Clutch Push

31

Camshaft, Clutch Release

Camshaft, Clutch Release

32

Cap, Clutch Push Rod

Cap, Clutch Push Rod

33

Spring, Clutch Release

Spring, Clutch Release

34

Arm, Clutch Release

Arm, Clutch Release

35

Болт (6X20)

Болт (6X20)

36

Screw, Clutch Push

Screw, Clutch Push

37

Washer, Clutch Push (10.5x24x1)

Washer, Clutch Push (10.5x24x1)

38

Washer (15.5x28x1) (15.5x28x1.0)

Washer (15.5x28x1) (15.5x28x1.0)

39

Bearing, Cl Rlse Low (10x14x10)

Bearing, Cl Rlse Low (10x14x10)

40

Bearing, Cl Rlse Cam Upper (12x18x12)

Bearing, Cl Rlse Cam Upper (12x18x12)

41

Bearing (15x28x2) (15x28x2)

Bearing (15x28x2) (15x28x2)

42

Seal, Cl Rlse Arm (10x20x6)

Seal, Cl Rlse Arm (10x20x6)

43

Oil Seal (6x34x10) (5x34x10)

Oil Seal (6x34x10) (5x34x10)

44

Oil Seal (10x17x5) (10x17x5)

Oil Seal (10x17x5) (10x17x5)

45

Nut, No.1

Nut, No.1

46

Retainer, Cl Push Rod

Retainer, Cl Push Rod

47

Screw, Push Rod

Screw, Push Rod
